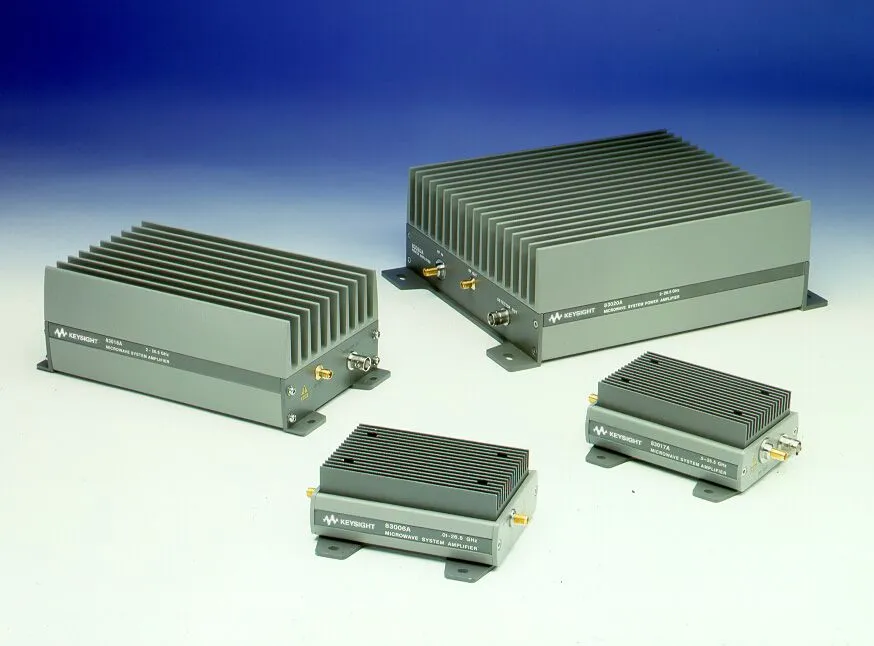

Keysight 83018A Microwave System Amplifier

Overview

The Keysight 83018A is a compact microwave system amplifier designed for systems designers and integrators working with RF and microwave test and measurement systems. This model provides power recovery to overcome system losses and boost available power in ATE environments. The ultra-broad bandwidth from 2 to 26.5 GHz enables a single amplifier to replace multiple narrow-bandwidth models.

The 83018A features internal directional detectors for external leveling applications and provides excellent noise figure relative to its broad bandwidth and high gain, significantly improving system noise figure and dynamic range. The amplifier comes equipped with a low-profile heat sink, integral mounting bracket, and a 2-meter DC power supply cable for fast, easy integration into most measurement systems.

Key Features

• Frequency coverage: 2 to 26.5 GHz
• Gain: More than 27 dB (to 20 GHz), 23 dB (to 26.5 GHz)
• P1dB: Greater than 22 dBm (to 20 GHz), 17 dBm (to 26.5 GHz)
• Noise figure: Less than 10 dB (to 20 GHz), 13 dB (to 26.5 GHz)
• Internal directional detectors for external leveling
• RF connectors: 3.5 mm female
• DC detector output: BNC female
• Power supply: +12 V @ 2 A, −12 V @ 50 mA
• Includes low-profile heat sink and integral mounting bracket

Applications

• RF and microwave automated test systems (ATE)
• Signal chain applications requiring high gain and low noise figure
• System loss recovery in broadband measurement systems

Included Accessories

• 87421A 25 W Power Supply (12 VDC, 15 VDC)
