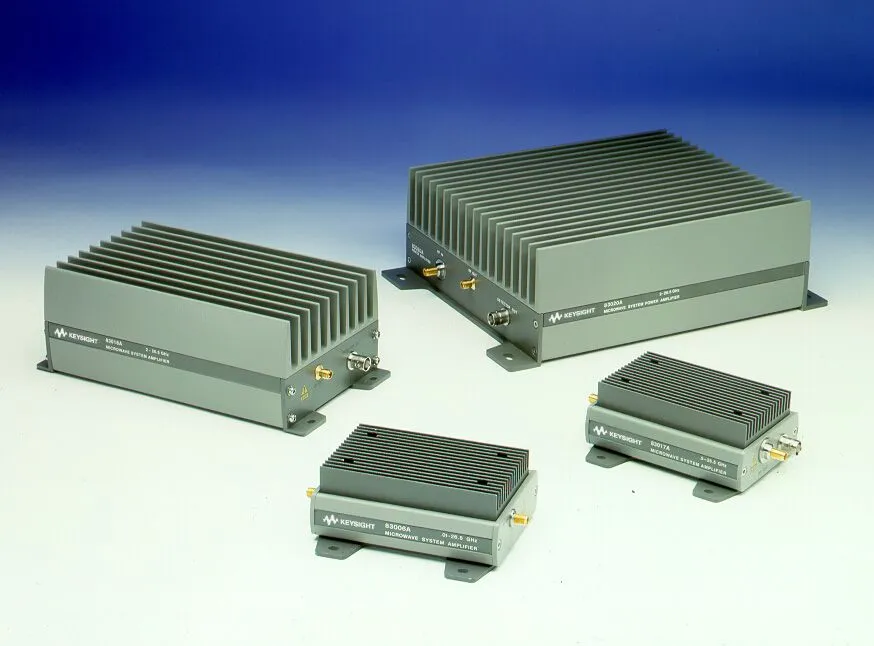

Keysight 83006A Microwave System Amplifier
Request a quote
Keysight 83006A microwave system amplifier with 10 MHz to 26.5 GHz bandwidth and more than 20dB gain for RF/microwave ATE systems.
Product details
| Model | 83006A |
| Manufacturer | Keysight |
| Category | RF Amplifiers |
| Availability | Made to order |
Description
Overview
The Keysight 83006A is a compact microwave system amplifier designed for systems designers and integrators working with RF and microwave test and measurement systems. It provides power recovery to overcome system losses and boost available power in ATE environments. The ultra-broad bandwidth from 10 MHz to 26.5 GHz enables a single amplifier to replace multiple narrow-bandwidth models, simplifying system design and eliminating the need for crossover networks or multiple bias supplies.
Key Features
- Frequency coverage: 10 MHz to 26.5 GHz
- Gain: More than 20 dB across the bandwidth
- P1dB: Greater than 13 dBm to 20 GHz
- Noise figure: Less than 13 dB (0.1 GHz), 8 dB (18 GHz), 13 dB (26.5 GHz)
- RF connectors: 3.5 mm female
- Power supply: +12 V @ 450 mA, −12 V @ 50 mA
Applications
- RF and microwave automated test systems (ATE)
- Signal chain applications requiring gain and low noise figure
- System loss recovery in broadband measurement systems
Included Accessories
- 87421A 25 W Power Supply (12 VDC, 15 VDC)
- 87422A 70 W Power Supply (12 VDC, 15 VDC)
Specifications
| Gain | 27dB |
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1GHz <= 10GHz |
| Connector Type | BNC-Female (Plug) |
| Amplifier Type | System |
| Maximum Frequency | 26.5 GHz |
| Minimum Frequency | 10 GHz |
| Series | 83000A Series |
