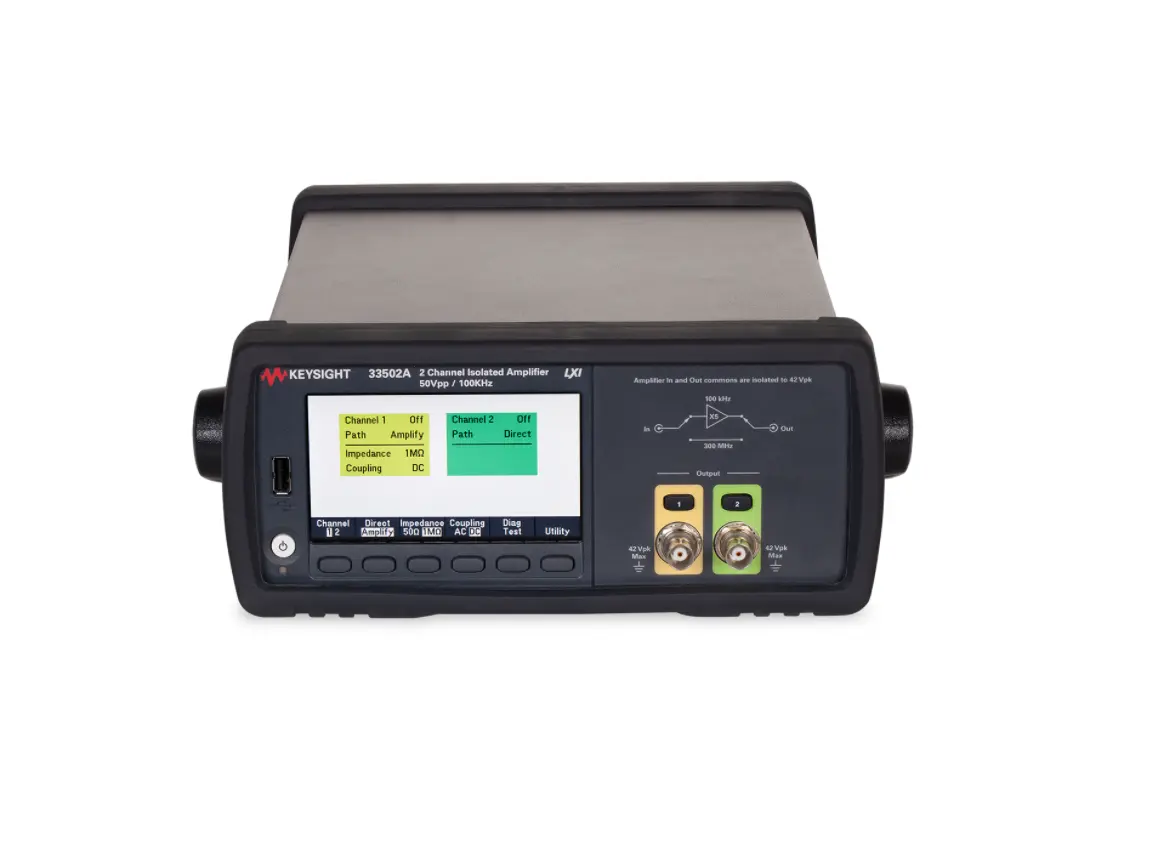

Keysight 33502A High Voltage Output Amplifier
Request a quote
Keysight 33502A is a dual-channel, high-voltage output amplifier with ±25 V output range, <0.01% distortion, and isolated front-end for use with function generators.
Product details
| Model | 33502A |
| Manufacturer | Keysight |
| Category | RF Amplifiers |
| Availability | Made to order |
Description
Overview
The Keysight 33502A is a dual-channel, high-voltage output amplifier designed to extend the capabilities of function generators. It features a fully isolated analog front end with superior voltage amplification and exceptionally low distortion performance.
Key Features
- Dual-channel configuration for independent signal amplification
- Output voltage range: ±25 V (50 Vpp) with 5X amplification capability
- Low distortion: <0.01% at 10 kHz with 40 Vpp output
- Fully isolated front end for superior performance
- Selectable input coupling (AC or DC)
- Configurable input impedance (50 Ω or 1 MΩ)
- Direct (unamplified) input path without cable changes
Applications
- High-voltage signal generation and testing
- Power supply and audio amplifier testing
- Laboratory measurement and signal conditioning
- Companion amplification for waveform generators
Specifications
| Channel/Port Count | 2 |
| Maximum Voltage | 50V |
