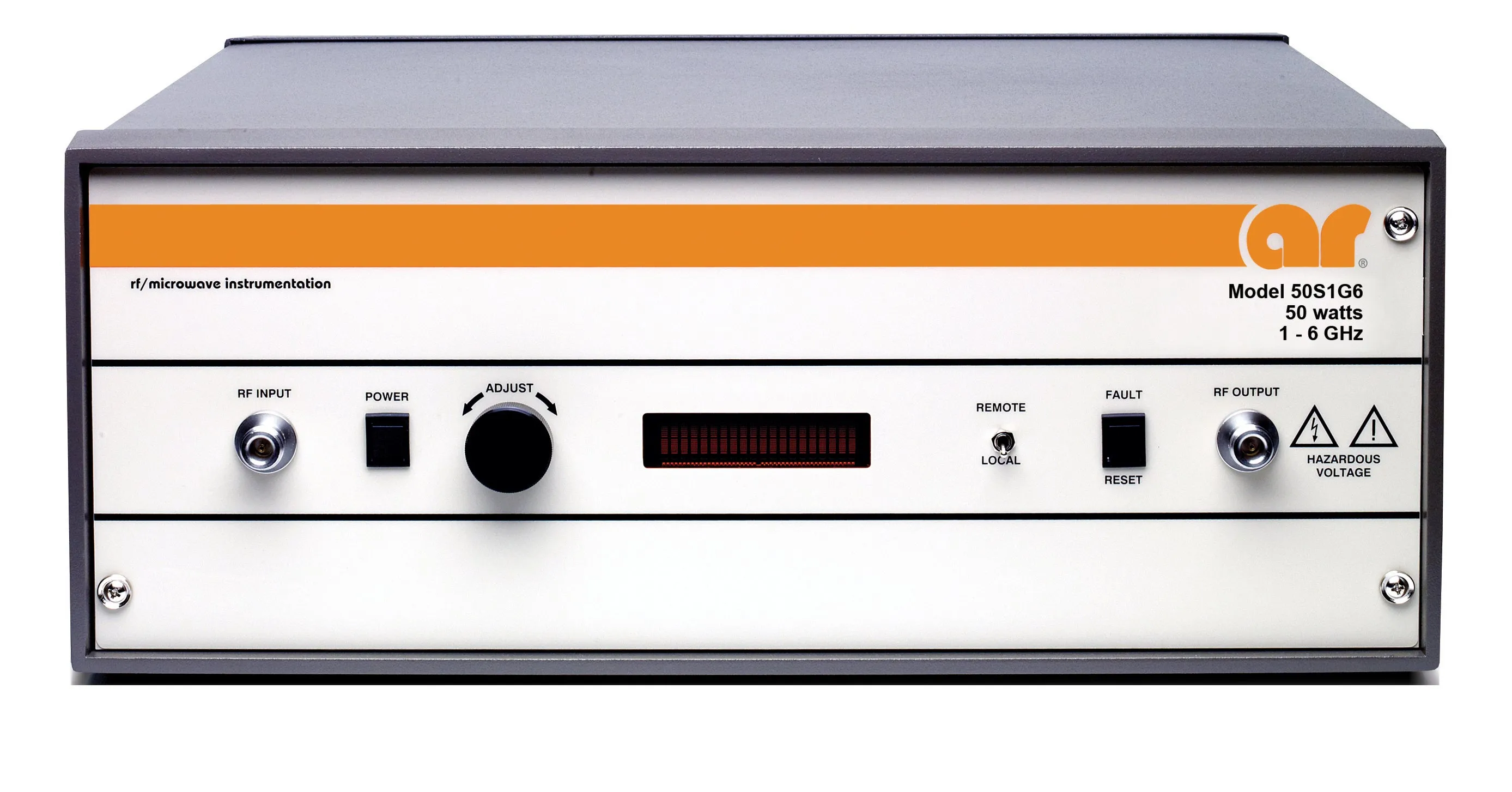

Amplifier Research 50S1G6 Broadband RF Amplifier
Request a quote
Amplifier Research 50S1G6 is a Class A solid-state broadband RF amplifier providing 50W minimum output power with 48dB gain and instantaneous 0.76 GHz bandwidth.
Product details
| Model | 50S1G6 |
| Manufacturer | Amplifier Research |
| Category | RF Amplifiers |
| Availability | Made to order |
Description
Overview
The Amplifier Research 50S1G6 is a solid-state, Class A design RF amplifier engineered for applications requiring instantaneous bandwidth, high gain, and linearity. The self-contained, air-cooled unit is suitable for benchtop use and can be removed from its cabinet for rack mounting.
Key Features
- 50 watts minimum rated power output at 0.76 GHz
- 48 dB minimum gain with 1.5 dB typical gain flatness
- 10 dB typical noise figure
- Third order intercept of 56 dBm typical
- Mismatch tolerance: operates safely with any impedance magnitude and phase
- Remote control via IEEE-488, RS-232, fiber optic, USB, and Ethernet
Applications
- High-gain RF signal amplification for test and measurement
- Broadband frequency response applications
- Laboratory and production test systems
Specifications
| Output Power | +47dBm |
| Gain | 48dB |
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 100MHz <= 1GHz |
| Connector Type | Type N-Female (Plug) |
