Fluke Networks OFP2-100-S Singlemode OTDR
Request a quote
OptiFiber Pro Singlemode OTDR with SmartLoop dual-fiber testing, gesture-based touchscreen interface, automatic event identification, and Wi-Fi for datacenter and OSP fiber certification.
Product details
| Model | OFP2-100-S |
| Manufacturer | Fluke Networks |
| Category | Optical Time Domain Reflectometers |
| Availability | Made to order |
Description
Overview
The OptiFiber Pro OFP2-100-S is a Singlemode OTDR designed for long-distance fiber testing in outside plant (OSP), FTTx, and enterprise network environments. Part of the Versiv Cabling Certification system, this model delivers Tier 2 fiber certification with advanced trace analysis, SmartLoop automated testing, and Wi-Fi connectivity through the innovative Taptive touchscreen interface.
Key Features
- Singlemode fiber testing at 1310, 1550, and 1625 nm wavelengths for long-distance networks
- SmartLoop technology enables automated two-fiber testing in a single pass with bi-directional averaging
- EventMap automatically identifies and characterizes splices, connectors, splitters, and bends in the fiber link
- Taptive gesture-based touchscreen with pinch-and-zoom for intuitive deep trace analysis
- Ultra-short attenuation dead zone (3.6 m typical for singlemode) for precise fault location
- DataCenter OTDR mode for testing short patch cords in high-density environments
- Expert Manual Mode allows users to adjust automated settings and investigate specific trace details
- Integrated Wi-Fi for LinkWare Live job management and real-time result sharing
- ProjX management system for operator roles, job assignment, and project tracking
- Pass/Fail certification reporting with professional documentation
Applications
- Long-distance fiber network installation and commissioning
- Outside plant (OSP) fiber link certification and maintenance
- FTTx infrastructure deployment and troubleshooting
- Enterprise backbone fiber network testing
- Submarine and long-haul fiber link analysis
- Field troubleshooting and fault isolation
Included Accessories
- Versiv 2 Mainframe
- OptiFiber Pro Singlemode OTDR module
- Shoulder Strap and protective Carry Case
- USB Interface Cable and AC Charger
- Integrated Wi-Fi capability
- Statement of Calibration and Getting Started Guides
Specifications
| Smartphone User Interface | Most OTDRs are designed for a myriad of applications, causing the user interface to be difficult to navigate and interpret. OptiFiber Pro combines the latest “gesture-based” interface technology with a capacitive touchscreen to deliver the most innovative and user-friendly OTDR. Advantages: Single-touch tap and swipe control for selecting and scrolling menu items. Multi-touch pinch to zoom for easy magnification control on a graphical fiber trace. Task-focused design to reduce back and forth navigation through screens. Capacitive touchscreen eliminates the need to recalibrate unlike legacy touchscreens. Context sensitive on-screen help that gives users additional details or problem resolution suggestions |
| At Home in the Datacenter | Driven by server virtualization and multi-gigabit links between servers, networks and storage, the datacenter architecture employs more patch cords and dense topology connectors, rendering carrier-class OTDRs with long dead zones ineffective. OptiFiber Pro not only makes fiber deployment in datacenters possible, but provides the highest level of accuracy for quick problem resolution. With a simple one-touch selection, users enter DataCenter OTDR mode - without setup time for fine-tuning as needed in legacy OTDRs. DataCenter OTDR mode automatically detects OTDR parameters - end-detection algorithms, pulse widths, etc - without getting confused by the short links or number of connectors. Advantages: Ultra-short event and attenuation dead-zones precisely locates events and faults on fiber links in the Enterprise. DataCenter OTDR™ mode automatically sets the configuration to quickly test datacenter fiber. The EventMap feature depicts fiber events in a way that requires no trace analysis expertise. |
| Unique Certification with Flexibility and Efficiency | An important aspect in maximizing an OTDR’s value is to properly plan its day-to-day usage. With built-in project management, OptiFiber Pro allows a project manager to define each user’s role, settings and the associated tasks to be performed – transforming the OTDR into an all-in-one fiber testing tool complete with planning, inspection, certification and reporting. OptiFiber Pro enhances job efficiency by allowing the workflow planner to create and manage operator and job profiles per project - defined jobs or sets of cable IDs can be assigned to specific operators. The progress and status of each project can also be easily monitored. Advantages: Full OTDR capability that certifies fiber performance based on job assignment for each operator. Powerful project management facilitates OTDR sharing with clear job assignment for each operator. Easy monitoring of job progress with pass/fail results. On-screen report generation and upload to LinkWare™ application. |
| Other Key Features | Extremely short event and attenuation dead zone for the Enterprise The OptiFiber Pro leverages the most sophisticated optical technology to provide the shortest event dead zone (0.5 m typical for MM) and attenuation dead zone (2.2 m typical for MM and 3.6 m typical for SM) of any OTDR. This technological advancement allows OptiFiber Pro to detect and measure closely spaced faults where no other OTDR can in today’s connector-rich datacenter and storage area environments. |

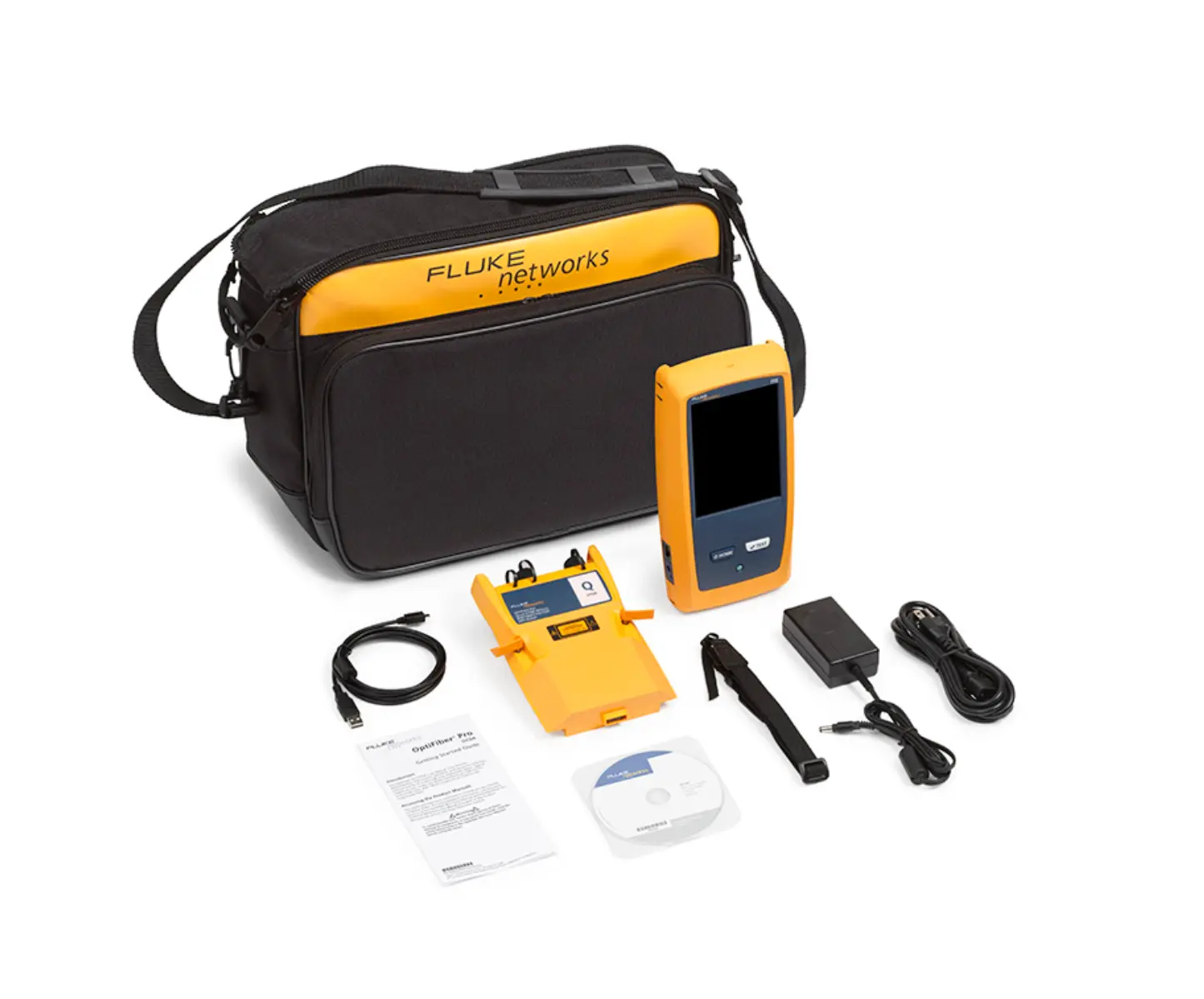

| OFP2-100-S | OptiFiber Pro Singlemode OTDR V2 kit with Wi-Fi. This kit includes: (1) Versiv 2 Mainframe, (1) OptiFiber Pro Singlemode OTDR module, Shoulder Strap, USB Interface Cable, Carry Case, AC Charger, Integrated Wi-Fi, Statement of Calibration and Getting Started Guides. |
