Fluke Networks OFP2-100-Q OptiFiber Pro Quad OTDR

Overview

The Fluke Networks OFP2-100-Q OptiFiber Pro Quad OTDR is a Tier 2 fiber certification solution with four wavelength modules built from the ground up for enterprise fiber optic cabling testing. As part of the Versiv Cabling Certification system, it integrates the ProjX management system and Taptive user interface to streamline testing workflows for users of all skill levels in datacenters, outside plant (OSP), FTTx, and PON environments.

The Quad OTDR provides simultaneous multi-wavelength testing capability, enabling comprehensive fiber characterization across different fiber types in a single instrument. Its advanced optical technology delivers the shortest event and attenuation dead zones available, essential for precise fault location in modern connector-dense datacenter infrastructures.

Key Features

• Quad wavelength module supporting 850, 1300, 1310, 1490, 1550, and 1625 nm for comprehensive fiber testing
• Simultaneous multi-wavelength testing of different fiber types in one test
• Auto OTDR function analyzes fiber characteristics and automatically configures measurement parameters
• Expert Manual Mode allows advanced users to fine-tune settings for detailed analysis
• EventMap automatically identifies and categorizes events including connectors, splices, bends, and splitters
• Gesture-based touchscreen interface with pinch-to-zoom for intuitive trace analysis
• SmartLoop technology tests two fibers in a single test, cutting testing time in half
• Instantaneous bi-directional averaging results included as standard
• LinkWare Live integration for real-time job tracking and result management from any smart device
• Ultra-short event dead zone (0.5 m typical for multimode) and attenuation dead zone (2.2 m typical for multimode, 3.6 m for singlemode)
• Integrated Wi-Fi for wireless connectivity
• DataCenter OTDR mode with automatic parameter configuration for high-density fiber environments

Applications

• Enterprise fiber optic infrastructure certification and troubleshooting
• Datacenter fiber testing with multiple fiber types and high connector density
• Mixed-wavelength FTTx (Fiber-to-the-X) deployment testing
• Passive Optical Network (PON) multi-wavelength certification
• Outside plant (OSP) comprehensive fiber infrastructure testing
• Multiple fiber type testing in single test for efficiency

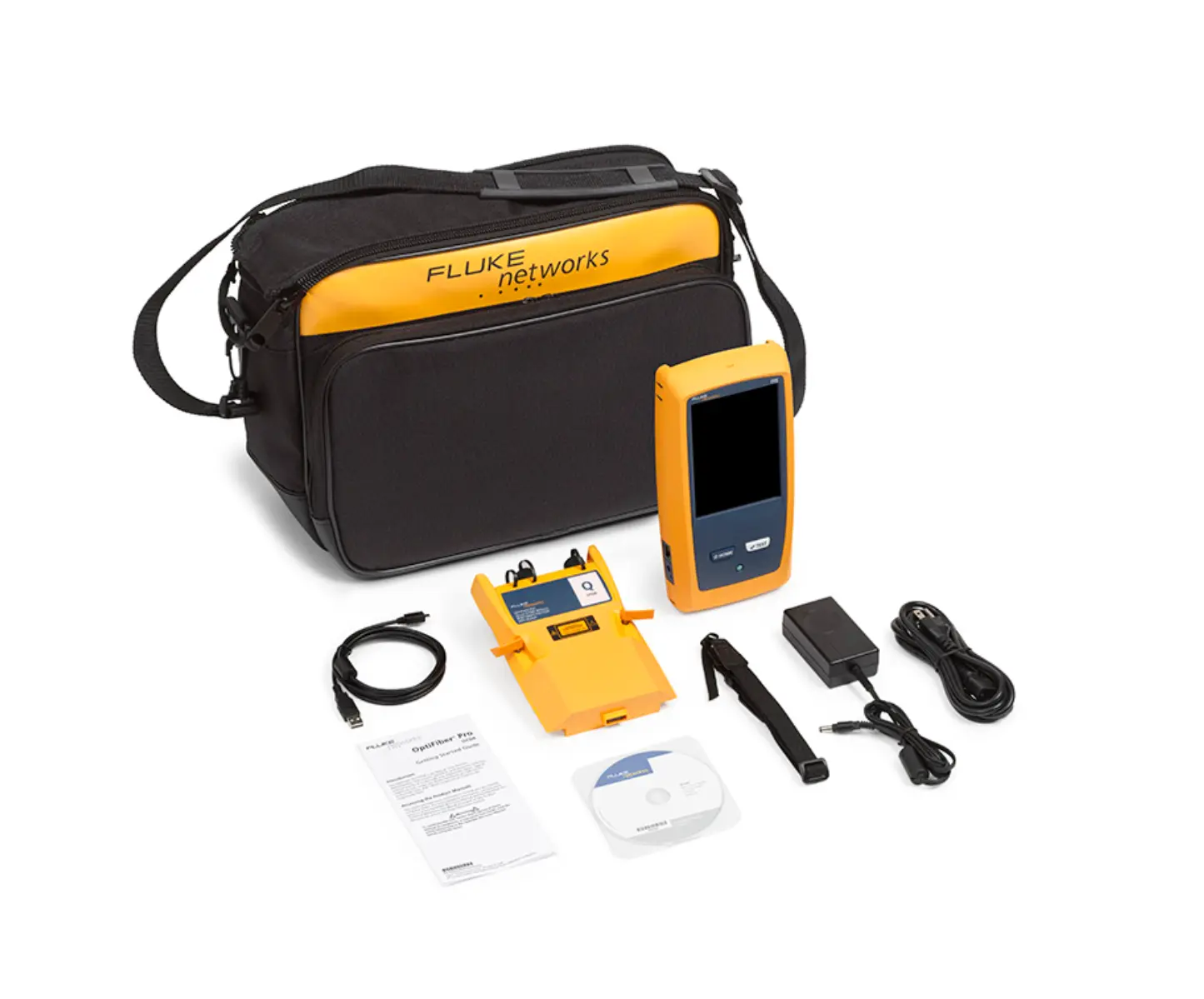

Included Accessories

• Versiv 2 Mainframe with integrated Wi-Fi
• OptiFiber Pro Quad OTDR module
• Shoulder Strap and Carry Case
• USB Interface Cable and AC Charger
• Statement of Calibration and Getting Started Guides
