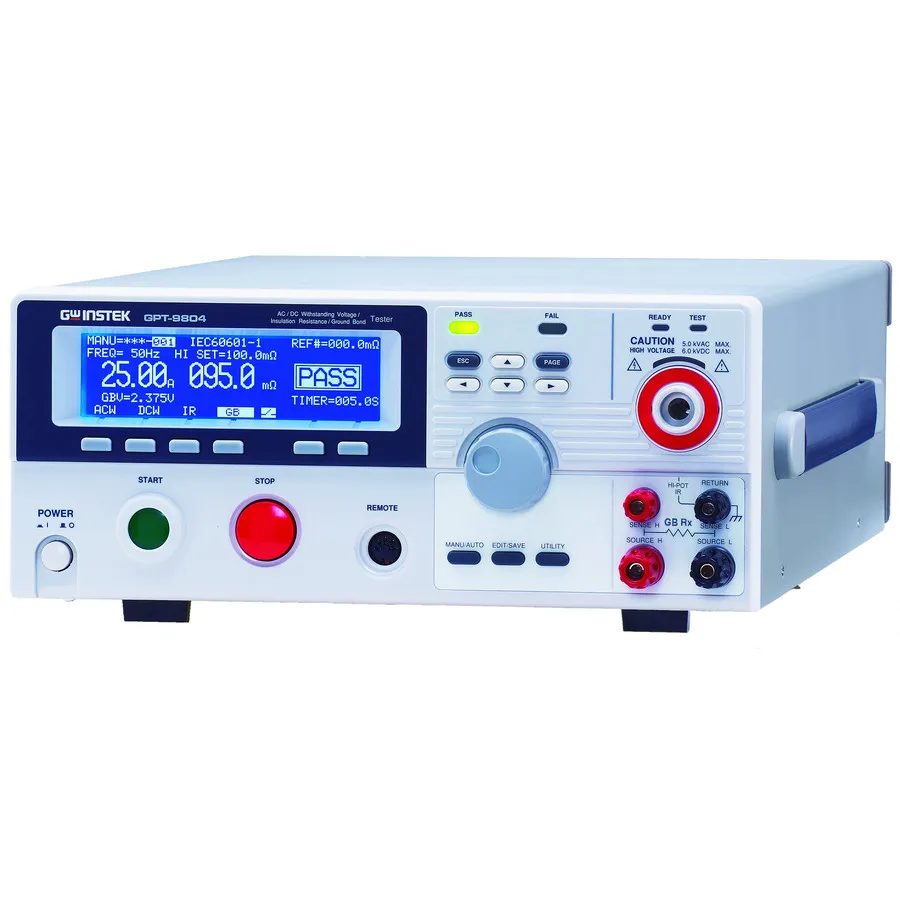

GW Instek GPT-9804 Electrical Safety Tester

Overview

The GW Instek GPT-9804 is a 4-in-1 electrical safety tester combining AC withstanding voltage, DC withstanding voltage, insulation resistance, and ground bond testing functions. Designed for high-reliability electrical and electronic product safety compliance, it features 200VA AC test capacity and is built on a high-efficiency PWM amplifier platform to ensure stable voltage supply regardless of input AC source fluctuations.

Key Features

• 4-in-1 testing: AC withstanding (5 kV/40 mA), DC withstanding (6 kV/10 mA), insulation resistance (50V to 1000V), and ground bond (30A max.) tests
• 200VA AC test capacity with high-efficiency PWM amplifier
• 240x64 dot matrix LCD display with color LED indicators
• High resolution: 1 µA current measurement, 2V voltage setting
• 100 memory blocks to store individual test conditions with custom names
• Manual and automatic test modes with adjustable ramp-up times
• Zero crossing turn-on operation and automatic DUT discharge (within 200ms)
• Safety interlock function to prevent inadvertent operation
• True RMS current measurement with high-stability voltage output
• Interfaces: RS-232C, USB device, Signal I/O, and GPIB (optional)
• Remote control terminal on front panel for start/stop control

Applications

• Safety testing of electronic products and components
• Compliance with IEC, EN, UL, CSA, GB, JIS and other international safety standards
• Manufacturing quality assurance and device validation
• Field service and maintenance testing

Included Accessories

• Quick Start Guide and user's manual on CD
• Power cord
• Interlock key
• Remote terminal male plug
• GHT-114 test lead
• GHT-115 test lead
• Two-year warranty
