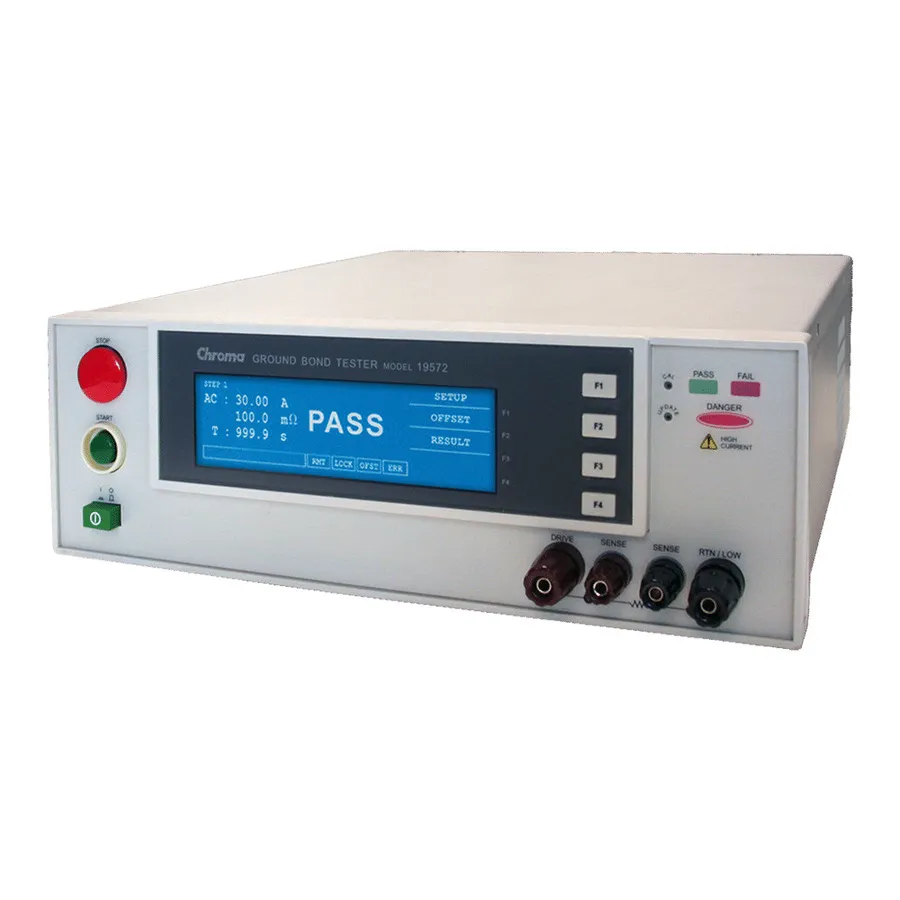

Chroma 19572 Ground Bond Tester
Request a quote
Chroma 19572 ground bond tester measures grounding resistance from 0.1 to 510 mΩ with AC current output of 3 to 45 Amps.
Product details
| Model | 19572 |
| Manufacturer | Chroma |
| Category | Ground Bond Testers |
| Availability | Made to order |
Description
Overview
The Chroma 19572 is a compact ground bond tester designed to measure grounding resistance in production line environments. It delivers reliable and stable test results with built-in resistance compensation.
Key Features
- Replacement for QuadTech Sentry 50
- Wide resistance measurement range: 0.1 to 510 mΩ
- High performance AC current output: 3 to 45 Amps
- Built-in resistance compensation function
- Standard RS-232 interface with optional GPIB interface
- Compatible with Chroma 19071 and 19073 Hipot Testers
Applications
- Ground testing in production line manufacturing
- Electrical equipment grounding verification
