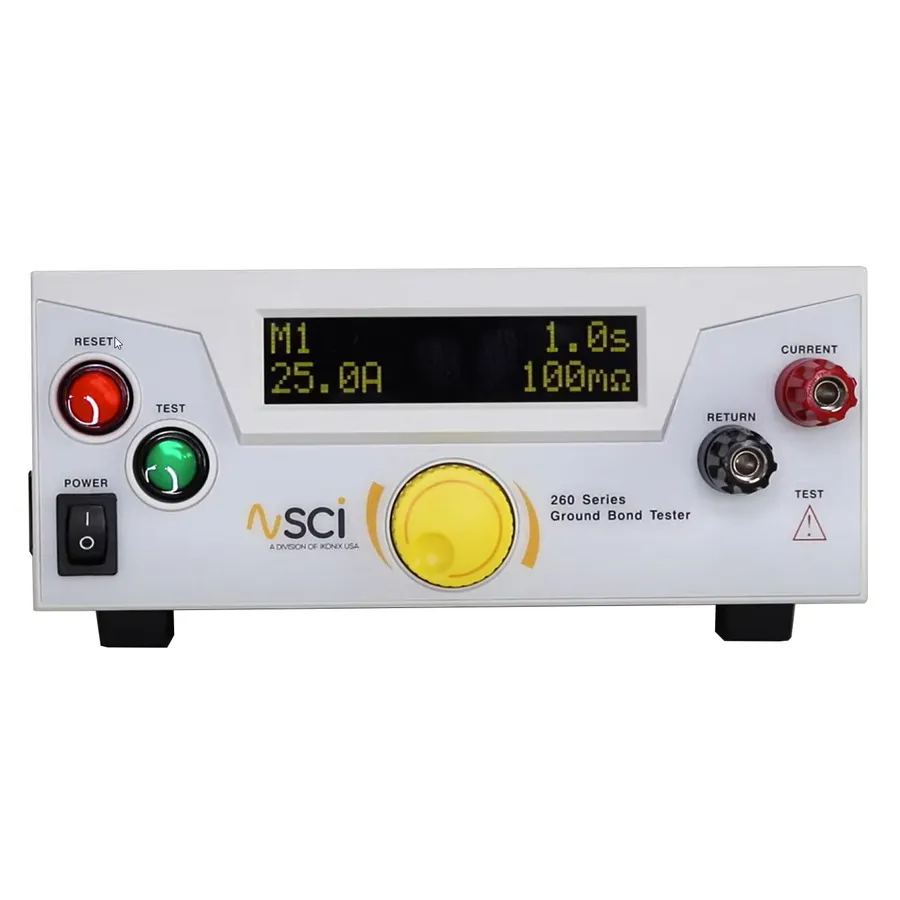

SCI 264 Ground Bond Tester
Request a quote
SCI 264 Ground Bond Tester provides 3-40 amp AC output for automated ground resistance testing with milliohm offset function and 5 programmable memory profiles.
Product details
| Model | 264 |
| Manufacturer | SCI |
| Category | Ground Bond Testers |
| Availability | Made to order |
Description
Overview
The SCI 264 is a ground bond tester from the 260 Series that provides automated testing for ground resistance verification. It features an intuitive interface for rapid test setup and is suitable for both laboratory and production line environments. The unit offers 5 programmable memories and practical security settings for flexible deployment across diverse testing scenarios.
Key Features
- Output Rating: 3.0-40.0 A AC at 8 VAC (fixed)
- Input Voltage: 100-120 VAC or 200-240 VAC ±10% with auto-range
- Frequency: 50/60 Hz
- 5 programmable memories for test profiles
- Milliohm offset function for accurate ground bond testing
- Redundant hardware safety interlock
- Remote I/O with Test, Reset, Interlock inputs and Pass, Fail, Test-in-Process outputs
- Portable, rugged design
- CE listed
- Optional USB and rear outputs
- Voltage drop display capability
Applications
- Ground bond resistance testing per NRTL specifications
- Production line testing and verification
- Laboratory electrical testing
- Equipment safety compliance validation
Specifications
| Series | 260 Series |
