Digital Oscilloscopes

Digital oscilloscopes, also known as digital storage oscilloscopes (DSOs), capture and digitize electrical waveforms by sampling the input signal at high rates, storing the data in memory, and rendering it on screen. Unlike analog instruments, DSOs can freeze waveforms, trigger on complex events, perform automatic measurements, and export data for further analysis. They are the standard tool for signal verification, debugging, and compliance testing across electronics, automotive, telecommunications, and power industries.

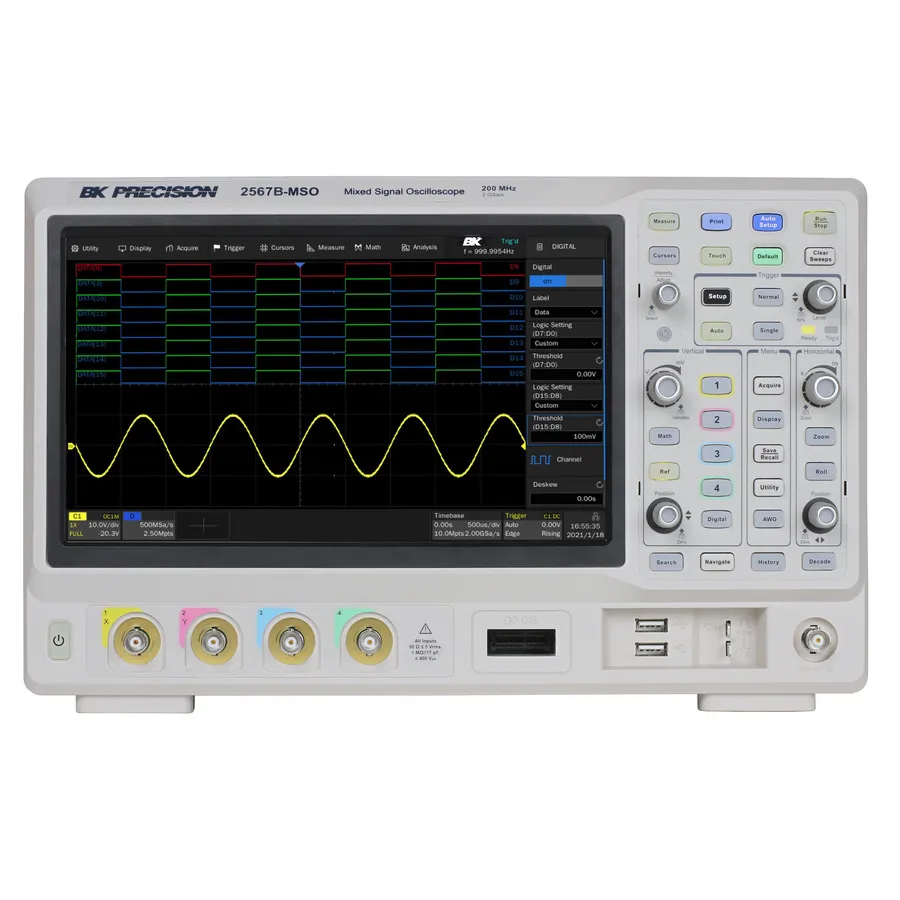

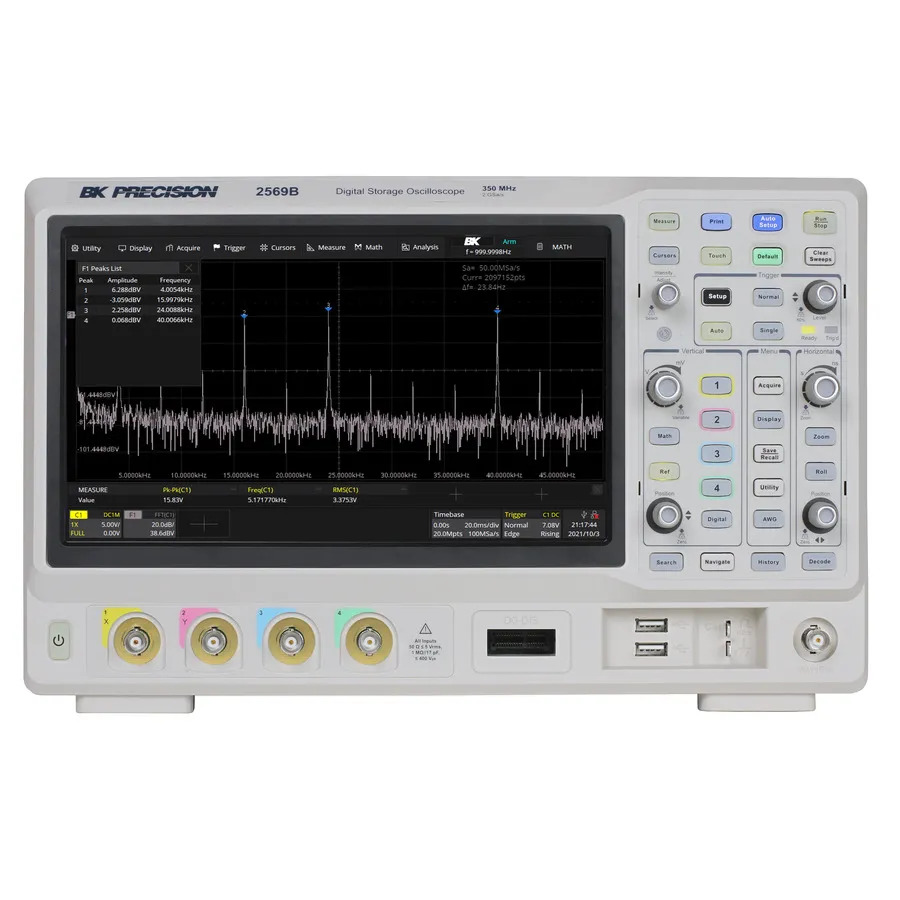

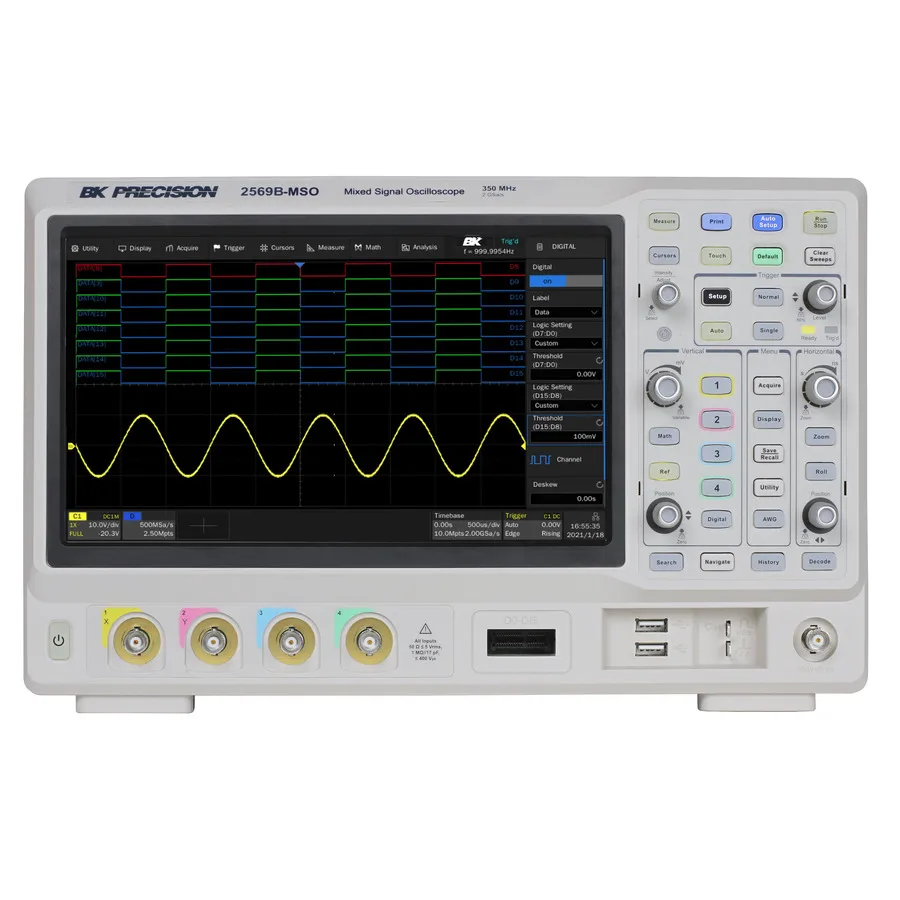

Modern digital oscilloscopes offer bandwidths from 70 MHz to several gigahertz, deep waveform memory, and built-in protocol decoders for standards such as I2C, SPI, CAN, LIN, UART, and USB. Mixed signal oscilloscopes (MSOs) combine analog and digital channels, enabling simultaneous capture of analog waveforms and digital logic signals on a single instrument. Manufacturers such as B&K Precision, Tektronix, Keysight, Rohde & Schwarz, and Siglent offer DSOs for education, production testing, and advanced R&D use cases.

Typical Applications

Embedded system debugging: simultaneous analog and digital signal analysis with integrated protocol decoding
Power supply design: measuring ripple, switching transients, and efficiency at switching nodes
PCB bring-up and validation: verifying signal integrity on high-speed digital interfaces
Automotive electronics: capturing CAN, LIN, and FlexRay bus signals during ECU validation
Manufacturing test: automated waveform pass/fail testing in production environments
Medical device development: verifying timing and signal quality in safety-critical electronics

Popular Brands

B&K Precision offers affordable yet feature-rich DSOs for general lab and education use. Tektronix and Keysight provide industry-standard instruments across all performance tiers. Rohde & Schwarz targets compliance and RF applications. Siglent delivers strong value at mid-range bandwidth. For mixed signal work, Keysight's InfiniiVision series is especially well regarded.
