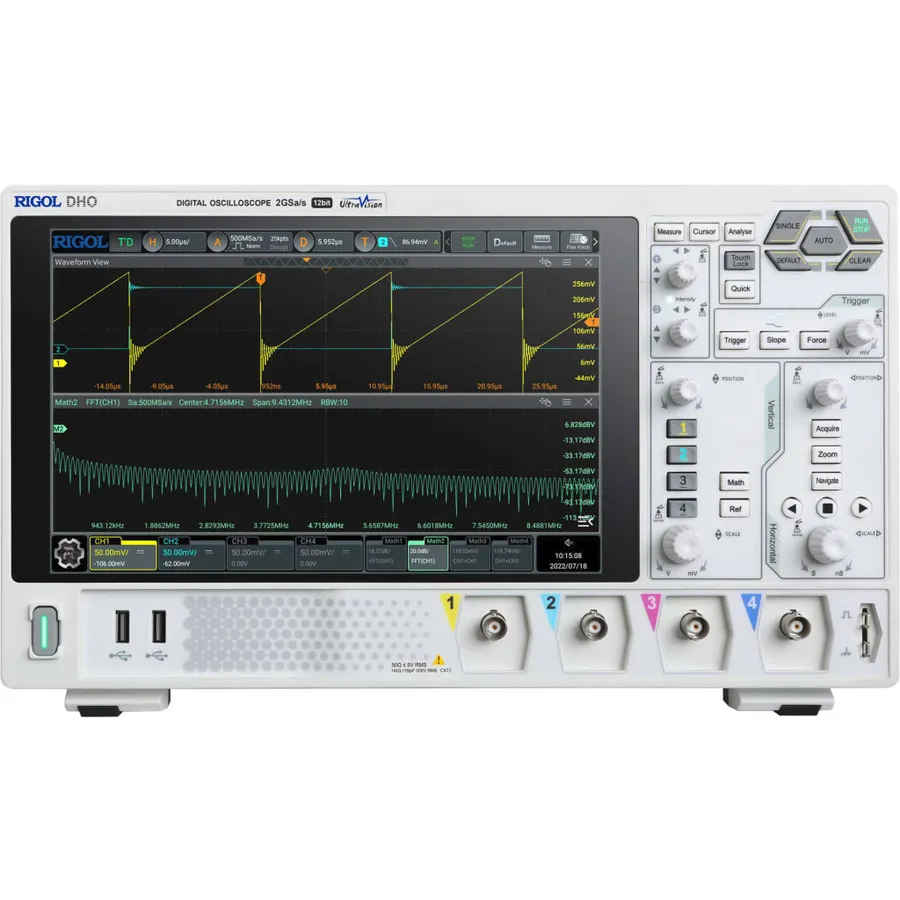

RIGOL DHO1204 Digital Oscilloscope
Request a quote
RIGOL DHO1204 4-channel digital oscilloscope with 200 MHz bandwidth, 12-bit vertical resolution, 1 GSa/s sampling, and 50 Mpts memory for advanced signal analysis.
Product details
| Model | DHO1204 |
| Manufacturer | RIGOL |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The RIGOL DHO1204 is a 4-channel digital oscilloscope part of the DHO1000 series, featuring RIGOL's advanced technology platform with true 12-bit sampling. Designed for benchtop applications demanding superior signal integrity and accuracy, it provides professional-grade signal visualization at an accessible price point.
Key Features
- 200 MHz analog channel bandwidth
- 4 analog channels
- 12-bit vertical resolution (16-bit in high-resolution mode)
- Real-time sample rate up to 1 GSa/s
- Memory depth up to 50 Mpts (expandable to 100 Mpts with option)
- Standard serial decoding: SPI, I2C, RS232/UART, CAN, and LIN
- 50,000 waveforms/s capture rate
- Ultra-low noise floor for accurate measurement of small signals
- 10.1 inch HD touch display (1280×800)
- Standard USB Device & Host, LAN, and HDMI interfaces
Applications
- Multi-channel signal analysis
- Serial protocol debugging
- Complex signal measurement
Specifications
| Bandwidth | 200 MHz |
| Analog Channels | 4 |
| Digital Channels | None |
| Sampling Rate | 1 GS/s |
| Memory | 50 Mpts |
| Type | DSO |
| Vertical Resolution | 12 bit |
| Display Type | 10.1 Capacitive Color Touch |
| Series | DHO1000 Series |
| Includes | Oscilloscope, Power cord, USB cable, Two PVP2350 probes |
