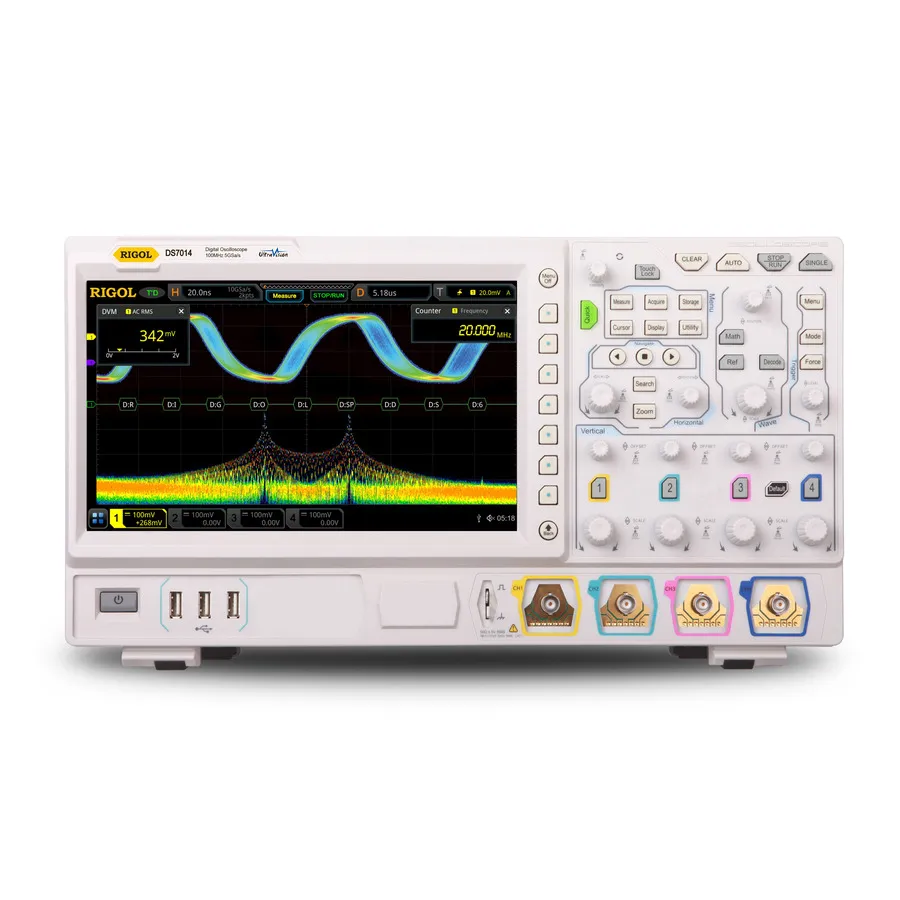

RIGOL DS7014 Digital Oscilloscope
Request a quote
RIGOL DS7014 is a 4-channel, 100 MHz digital oscilloscope with 10 GS/s sampling and 500 Mpts memory, built for embedded design and signal analysis.
Product details
| Model | DS7014 |
| Manufacturer | RIGOL |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The RIGOL DS7014 is a 4-channel digital oscilloscope built on the UltraVision II architecture, combining high sampling rates and deep memory with a modern, user-friendly interface. With 100 MHz bandwidth and advanced analysis capabilities including zone triggering, FFT analysis, and waveform histograms, the DS7014 is well-suited for embedded design, power integrity analysis, and signal debugging applications.
Key Features
- 4 analog channels plus 1 external trigger channel
- 100 MHz analog bandwidth
- 10 GS/s real-time sampling rate
- Up to 500 Mpts memory depth (with option)
- High waveform capture rate (over 600,000 waveforms per second)
- 7 instruments in 1: oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, frequency counter, and protocol analyzer
- Auto measurement of 41 waveform parameters with full-memory hardware measurement
- Advanced math operations and enhanced FFT analysis
- 10.1-inch capacitive multi-touch screen with 256-level color grading
- Multiple interfaces: USB HOST & DEVICE, LAN (LXI), HDMI, TRIG OUT, and Web Control
Applications
- Embedded design and debugging
- Power integrity analysis
- Signal integrity testing
- RF applications
- Serial protocol analysis and decoding
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 10 GS/s |
| Memory | 500 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 10.1 Capacitive Color Touch |
| Series | DS7000 Series |
