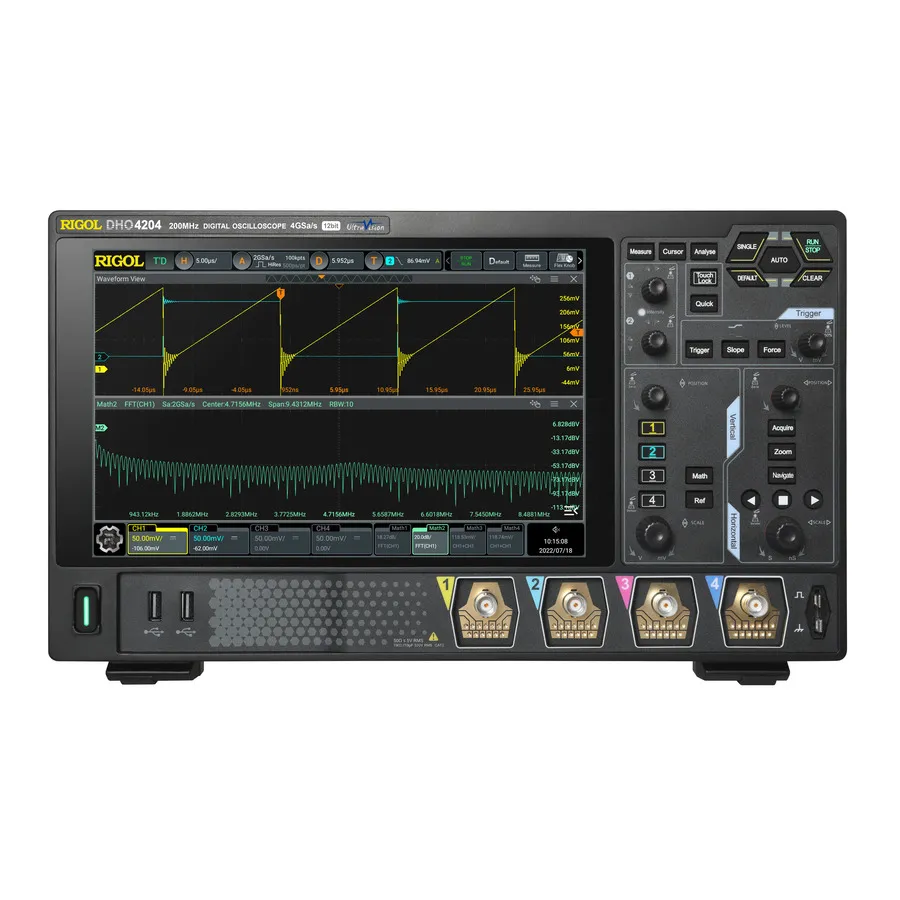

RIGOL DHO4204 4-Channel Digital Oscilloscope
Request a quote
DHO4204 is a 4-channel 200MHz digital oscilloscope with 12-bit resolution, 4GS/s sampling, and ultra-low 18 µVrms noise floor.
Product details
| Model | DHO4204 |
| Manufacturer | RIGOL |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The RIGOL DHO4204 is a 4-channel digital oscilloscope designed for circuit design, troubleshooting, and component testing. Built on RIGOL's Centaurus chipset, it delivers 200MHz bandwidth, 4GS/s real-time sampling, and 12-bit vertical resolution with ultra-low noise performance for precise signal measurements.
Key Features
- Ultra-low noise floor of 18 µVrms for accurate measurement of small signals
- 12-bit vertical resolution providing superior signal detail with 4096 discrete levels
- Up to 4 GS/s real-time sample rate
- High sensitivity down to 100 µV/div for capturing microvolt-level signals
- Wide vertical sensitivity range from 100 µV/div to 10 V/div
- Front-panel Flex Knobs for intuitive control
- Up to 500 Mpts memory depth for extended waveform capture
- Fast waveform capture rate of 1,500,000 waveforms/s with UltraAcquire mode
- Optional battery pack for portable operation
Applications
- Circuit design and prototyping
- System debugging and troubleshooting
- Electronic component testing and validation
- Signal analysis for IoT and embedded systems
Specifications
| Bandwidth | 200 MHz |
| Analog Channels | 4 |
| Sampling Rate | 4 GS/s |
| Memory | 250 Mpts |
| Type | DSO |
| Vertical Resolution | 12 bit |
| Display Type | 10.1 LCD Capacitive Touch |
| Series | DHO4000 Series |
| Includes | Power cord; USB Cable; 4 Passive HighZ Probes (350 MHz), Standard for DHO4204 |
