Fluke Networks DSX2-8000/GLD Cable and Antenna Analyzer
Request a quote
Fluke Networks DSX2-8000/GLD is a cable analyzer certifying Cat 5e–8 cabling to 2 GHz with TIA Level IIIe accuracy, touchscreen interface, and 1-year Gold Support.
Product details
| Model | DSX2-8000/GLD |
| Manufacturer | Fluke Networks |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Fluke Networks DSX2-8000/GLD is a cable analyzer for certifying twisted pair cabling performance up to 2000 MHz with integrated Wi-Fi connectivity. It validates Cat 5e, Cat 6, Cat 6A, Cat 8, and Class I/II cabling to TIA 1005-A and ISO 11801:3 standards. The DSX2-8000/GLD is designed for industrial Ethernet applications and includes 1-year Gold Support for priority service and updates.
Key Features
- Certifies Cat 5e, Cat 6, Cat 6A, Cat 8, and Class I/II twisted pair cabling
- Frequency range up to 2000 MHz
- TIA Level IIIe accuracy for compliance verification
- Touchscreen project management interface
- 8-hour battery life
- Integrated Wi-Fi for LinkWare Live cloud connectivity
- ProjX management system for job setup and completion tracking
- 1-year Gold Support included
Applications
- Industrial Ethernet network troubleshooting and validation
- EtherNet/IP, Profnet, ModBus TCP, and EtherCAT cabling certification
- Data center and enterprise network infrastructure testing

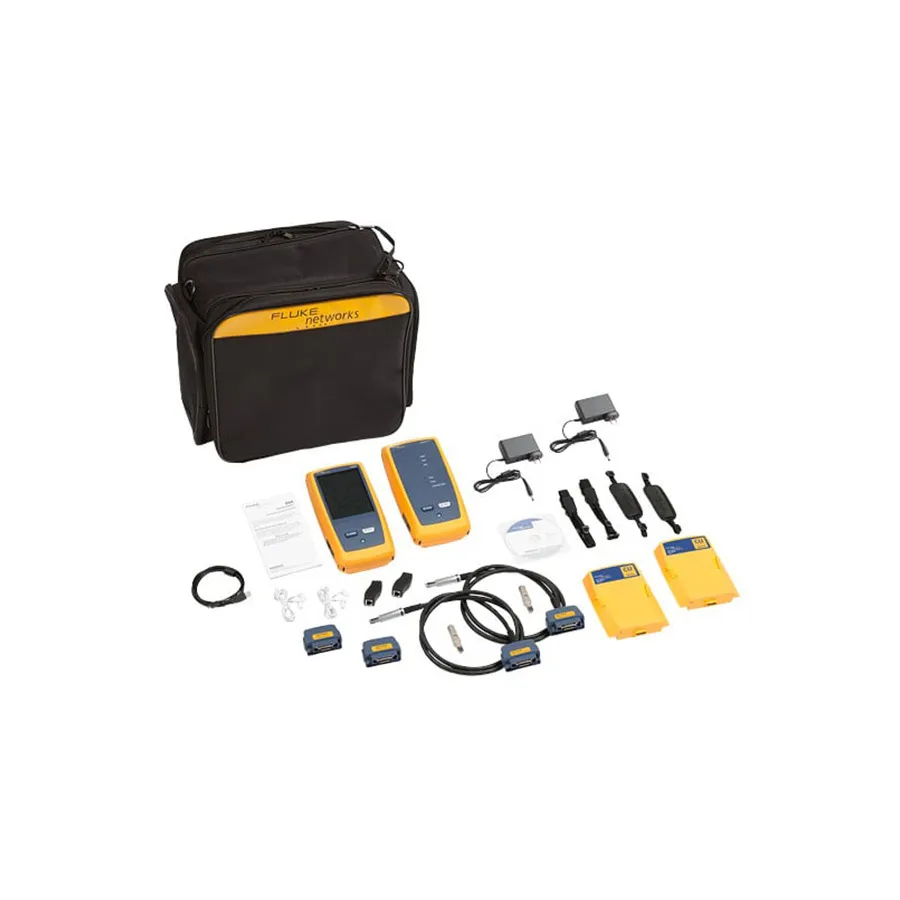

Included Accessories
- (1) Versiv Mainframe with Wi-Fi and Remote
- (2) DSX-8000 CableAnalyzer Modules
- Set of Cat 8/Class I Permanent Link Adapters
- Set of Cat 8/Class I Channel Adapters
- (2) Headsets with Hand Straps and Shoulder Straps
- Carry Case with USB Interface Cable
- (2) AC Chargers with Universal Couplers
- (2) AxTalk Terminators
- 1-year Gold Support, Statement of Calibration, and Getting Started Guide
Specifications
| Frequency | 2 GHz |
| Series | DSX Series |
| Battery Life | 8 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | RJ45 |
| Dimensions | 2.62 x 5.25 x 11 in. |
| Display | 5.7" LCD Touchscreen |
| Frequency Range | 2 Ghz |
| Includes | Versiv Mainframe w/ Wi‑Fi & Remote, (2) DSX‑8000 modules, Cat 8/Class I Permanent Link adapter set, Cat 8/Class I Channel adapter set, (2) headsets, (2) hand straps, (2) shoulder straps, carry case, USB cable, (2) AC chargers, (2) universal couplers, (2) |
| Number of Ports | 1 |
| Operating Temperature Range | 0 to 45°C |
