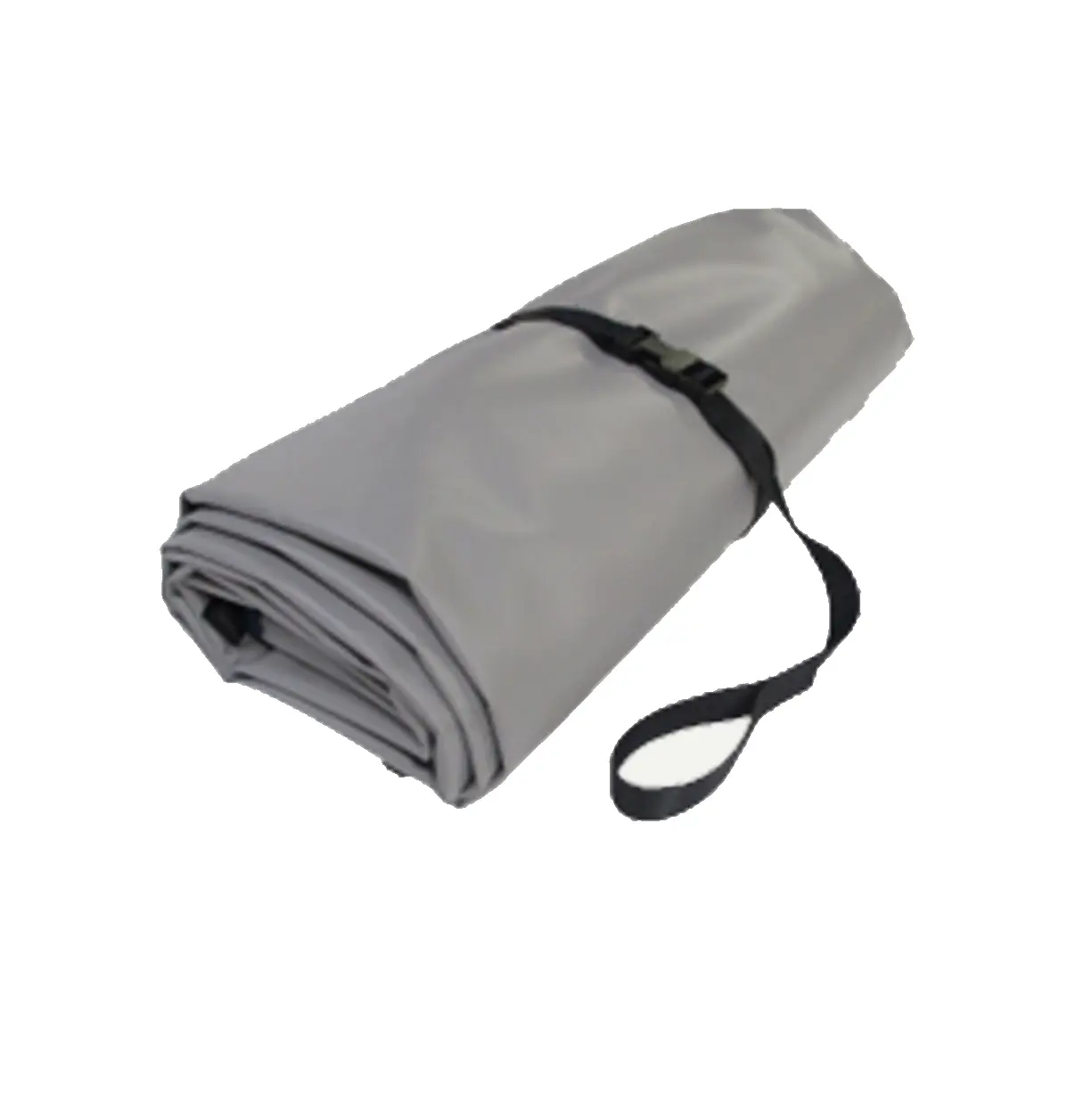

ConcealFab 007640-060030 PIM Blanket
Request a quote
ConcealFab 007640-060030 PIM blanket with >30 dB attenuation, designed for isolating passive intermodulation sources on rooftops and base station sites.
Product details
| Model | 007640-060030 |
| Manufacturer | ConcealFab |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The ConcealFab 007640-060030 is a temporary RF shielding blanket designed to help isolate sources of passive intermodulation (PIM) on rooftops and near base station antennas. When deployed over an external PIM source, this blanket typically reduces PIM by more than 30 dB, helping technicians validate the exact location of external PIM sources and demonstrate potential improvement from permanent repairs.
Key Features
- Low PIM metal foil construction sandwiched between vinyl layers
- Greater than 30 dB PIM attenuation typical
- RF attenuation >10 dB (600 MHz to 2 GHz), >20 dB (>2 GHz)
- Durable, weatherproof vinyl outer fabric
- Integrated nylon webbing tie-down loops for secure deployment
Applications
- PIM source isolation and location validation on rooftops
- Temporary RF shielding during cell tower maintenance and upgrades
- Pre-installation assessment for permanent PIM mitigation solutions
Specifications
| PIM Performance | IM3 < -120 dBm when tested in accordance with proposed IEC 62037-8, far field test, 2x 20W test tones, static test, vertical orientation. |
| RF Attenuation | >10 dB (600 MHz to 2 GHz) >20 dB (>2 GHz |
| Construction | Low PIM metal foil sandwiched between heavy duty vinyl outer fabric layers. Nylon webbing tie-down loops provided at corners. |
| Model / Part Number | Description |
| 007640-060030 | PIM Blanket; 60 Inch x 30 Inch 1.52 m x 0.75 m |
