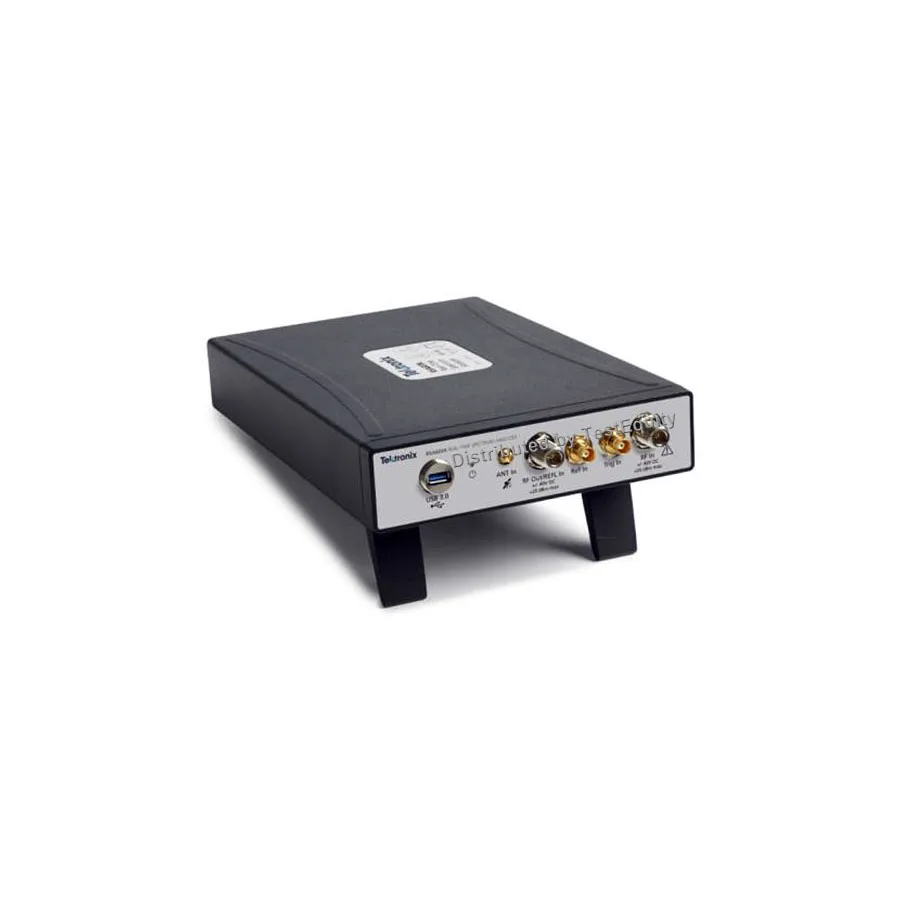

Tektronix RSA603A/04 Real-Time Spectrum Analyzer with Tracking Generator
Request a quote
Tektronix RSA603A/04 is a portable real-time spectrum analyzer from 9 kHz to 3 GHz with 40 MHz bandwidth and integrated tracking generator for antenna and cable measurements.
Product details
| Model | RSA603A/04 |
| Manufacturer | Tektronix |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Tektronix RSA603A/04 is a portable, USB-based real-time spectrum analyzer offering frequency coverage from 9 kHz to 3 GHz with 40 MHz acquisition bandwidth. The integrated tracking generator enables antenna and cable measurements. It combines laboratory-grade performance with field portability, making it suitable for design validation, RF characterization, and manufacturing test.
Key Features
- Frequency range: 9 kHz to 3 GHz
- 40 MHz real-time acquisition bandwidth
- Amplitude accuracy of 0.2 dB to 3 GHz (95% confidence)
- 70 dB dynamic range
- Integrated tracking generator (Option 04) for antenna and cable measurements
- Standard GPS/GLONASS/Beidou receiver for location mapping
- 100 µsec minimum signal duration with 100% probability of intercept
- SignalVu-PC software for real-time signal processing and DPX spectrogram analysis
- Application programming interface (API) for custom program development
- Streaming capture for recording and playback of long-term events
Applications
- RF device and subsystem characterization
- Transient signal capture and analysis
- Manufacturing and field testing
- Antenna and cable loss measurements
- Interference identification and spectrum monitoring
Included Accessories
- USB 3.0 cable (2 m, Type A-A with screw lock)
- Connector covers
- Power cord
- Quick-start manual (printed)
- API and documentation files
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 3 GHz |
| Tracking Generator | Yes |
| Noise Floor | -155 dBm |
| Product Type | USB |
| Series | RSA600 Series |
| Bandwidth | 40 MHz |
| Includes | USB 3.0 cable (2 M), A-A connection, Screw Lock, Quick-Start Manual, Connector Covers, Power cord, USB memory device with SignalVu-PC, API and documentation files. |
| Input Connector | BNC female, N type female, USB 3.0 – Type A, SMA female |
| Memory | 8 GB |
| Minimum Frequency | 9 kHz |
| Warranty | 3 Years |
