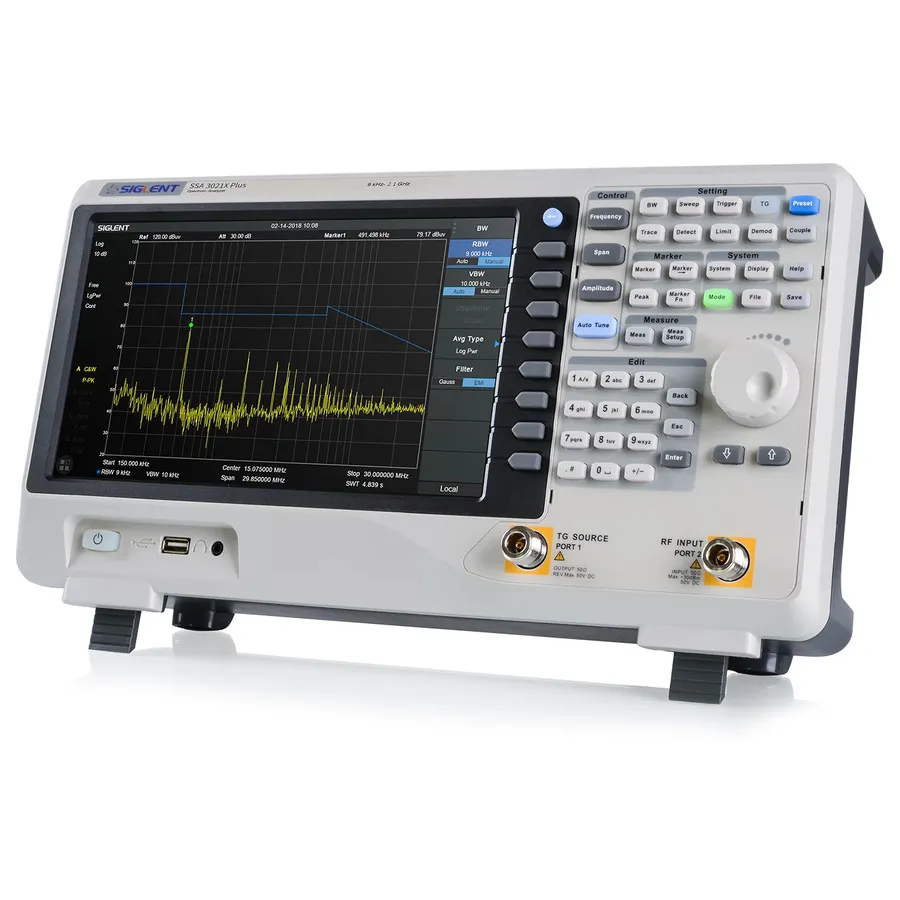

Siglent SSA3021X Plus Spectrum Analyzer
Request a quote
Siglent SSA3021X Plus is a 2.1 GHz spectrum analyzer with multi-touch display, integrated tracking generator, and advanced measurement modes.
Product details
| Model | SSA3021X Plus |
| Manufacturer | Siglent |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
Siglent's SSA3021X Plus is an advanced spectrum analyzer offering a frequency range of 9 kHz to 2.1 GHz with all-digital IF processing. The Plus series features a 10.1-inch multi-touch display with mouse and keyboard support, integrated tracking generator, and multiple operating modes for comprehensive RF signal analysis. Optional measurement capabilities include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI testing.
Key Features
- Frequency range: 9 kHz to 2.1 GHz
- Resolution bandwidth: 1 Hz to 1 MHz
- Phase noise: < -98 dBc/Hz
- Displayed average noise level: -161 dBm/Hz (typical)
- Total amplitude accuracy: < 0.7 dB
- 10.1-inch multi-touch screen with mouse and keyboard support
- Integrated tracking generator
- Preamplifier included
- Internal 256 MB storage plus external USB storage support
- LAN and USB interfaces with web-based remote control
Applications
- RF power measurement and analysis
- Analog and digital signal modulation analysis
- Reflection measurement and S-parameter testing
- EMI pre-compliance testing
- Wireless communication testing
- Research and development
- Production and maintenance testing
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 2.1 GHz |
| Tracking Generator | Yes |
| Noise Floor | -161 dBm |
| Product Type | Benchtop |
| Preamplifier | Yes |
| Series | SSA3000X Plus Series |
| Display Type | 10.1 Multi-Touch TFT LCD |
| Includes | SSA3021X Plus Spectrum Analyzer, USB cable, Power cord, Quick start guide, TG-SSA3000X tracking generator, NMI traceable calibration certificate (NIST equivalent) |
| Input Connector | N-type female, USB-A/B plug version 2.0, 3.5 mm Ear Phone Jack, 10/100 Base, RJ-45, BNC-type female |
| Interface | USB, LAN |
| Minimum Frequency | 9 kHz |
| Resolution | 1 Hz to 3 MHz |
| Warranty | 3 Years |
