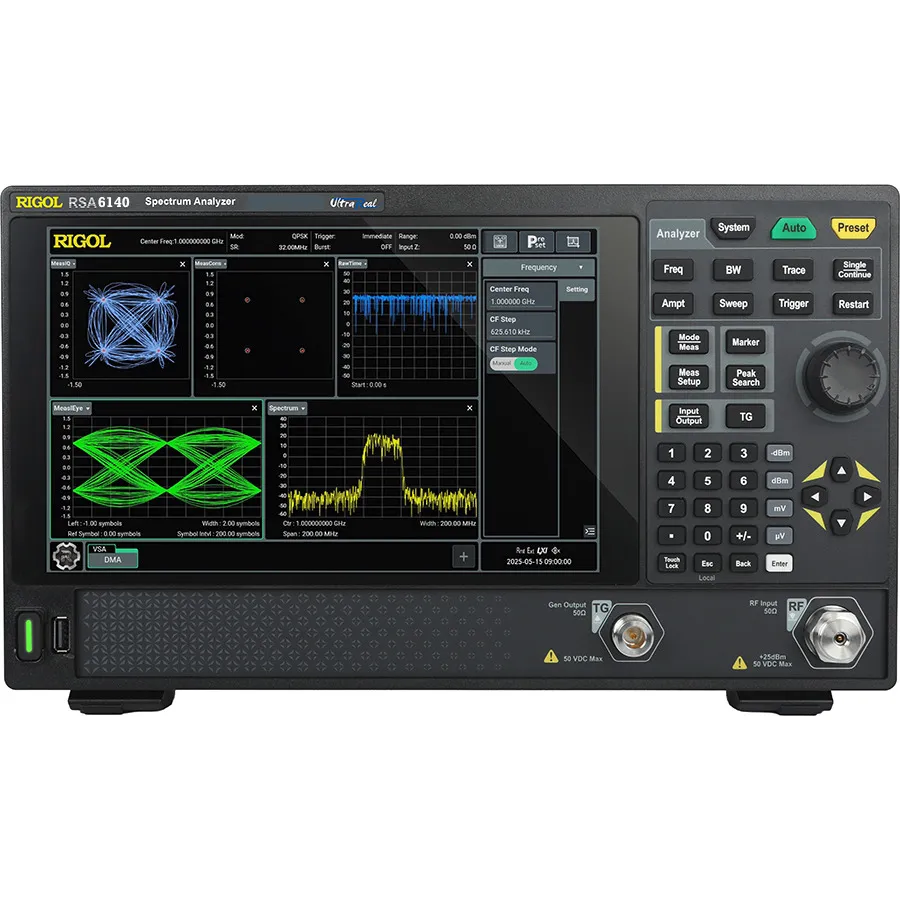

RIGOL RSA6140 Real-Time Benchtop Spectrum Analyzer
Request a quote
RIGOL RSA6140 is a real-time spectrum analyzer with 5 kHz to 14 GHz coverage, 200 MHz real-time bandwidth, and -163 dBm DANL for advanced RF signal analysis.
Product details
| Model | RSA6140 |
| Manufacturer | RIGOL |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The RIGOL RSA6140 is a real-time benchtop spectrum analyzer from the RSA6000 Series, designed for RF signal analysis from 5 kHz to 14 GHz. Built on the UltraReal platform, it combines high-performance signal capture, multi-dimensional signal analysis, and portable deployment, making it suitable for R&D, validation, and field troubleshooting. The analyzer features 200 MHz real-time analysis bandwidth, -163 dBm DANL (with preamp), and 4 THz/s sweep speed for capturing transient signals with precision.
Key Features
- Frequency range: 5 kHz to 14 GHz
- 200 MHz real-time and analysis bandwidth
- 4 THz/s sweep speed
- -163 dBm (typ.) DANL at 1 GHz with preamp enabled
- -108 dBc/Hz (typ.) phase noise at 1 GHz, 10 kHz offset
- 0.7 dB amplitude accuracy
- Built-in preamp and tracking generator
- Five analysis modes: GPSA, RTSA, VSA, EMI, and ADM
- 10.1" capacitive multi-touch display
- USB, LAN, and HDMI interfaces; SCPI compatible
Applications
- Spectrum analysis and real-time signal monitoring
- Vector signal analysis and demodulation
- EMI pre-compliance testing with CISPR-compliant filters
- Analog signal demodulation (AM/FM/PM)
- Wireless communication and RF device testing
- Automotive electronics and IoT signal analysis
Included Accessories
- Power cord
- Calibration certificate
Specifications
| Frequency Range | 15.0 - 30.0 GHz |
| Maximum Frequency | 14 GHz |
| Tracking Generator | Yes |
| Noise Floor | -163 dB |
| Product Type | Benchtop |
| Series | RSA6000 Series |
| Display Type | 10.1" LCD |
| Input Connector | N-type female, BNC female, USB Type-A, 100/1000 Base-T, RJ-45, HDMI A plug |
| Interface | LAN, USB, and HDMI |
| Memory | 128 GB |
| Minimum Frequency | 5 MHz |
| Resolution | 1 Hz to 10 MHz |
| Warranty | 3 Years |
