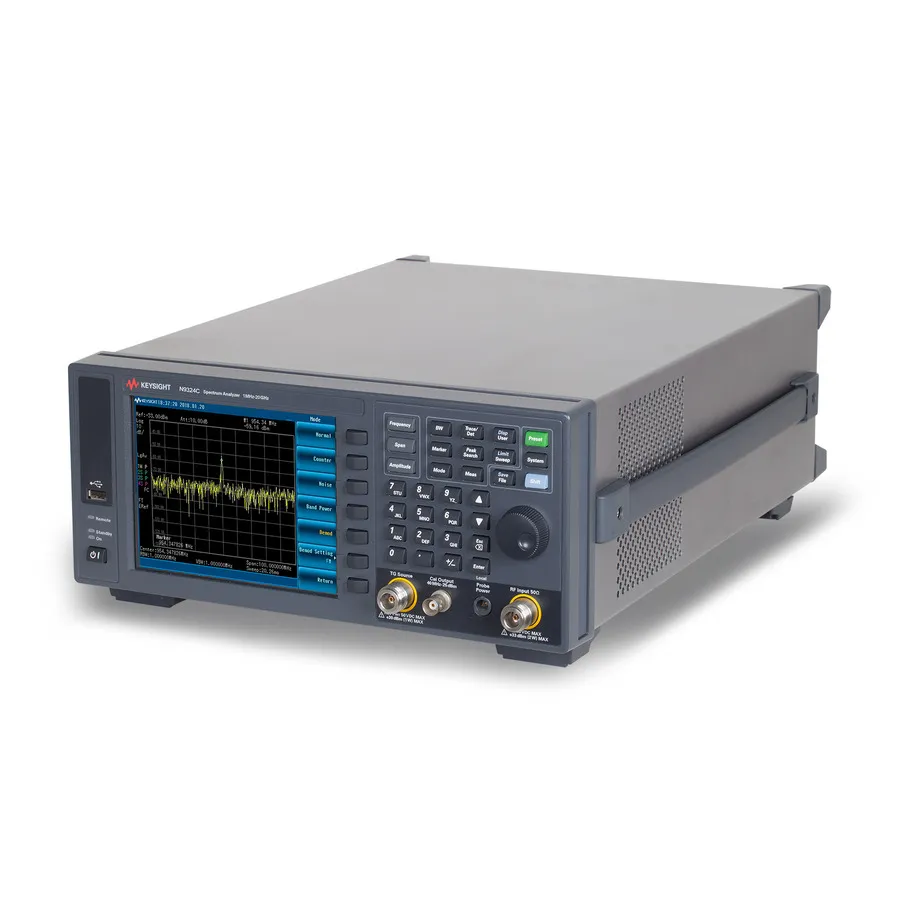

Keysight N9321C/TG4 Basic Spectrum Analyzer
Request a quote
Keysight N9321C/TG4 is a basic spectrum analyzer covering 9 kHz to 4 GHz with integrated tracking generator, -152 dBm DANL, and demodulation analysis capabilities.
Product details
| Model | N9321C/TG4 |
| Manufacturer | Keysight |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9321C Basic Spectrum Analyzer (BSA) is a cost-effective solution for general-purpose spectrum analysis from 9 kHz to 4 GHz. The N9321C/TG4 configuration includes an integrated tracking generator for stimulus-response measurements. This analyzer delivers measurement performance and flexibility needed for applications ranging from EMI troubleshooting to wireless device testing and education.
Key Features
- Frequency range: 9 kHz to 4 GHz
- DANL at 1 GHz: -152 dBm
- Max analysis bandwidth: 1 MHz
- Phase noise at 1 GHz (10 kHz offset): -90 dBc/Hz
- Integrated tracking generator (TG4 configuration)
- LAN and USB interfaces; optional GPIB (G01)
- AM/FM and ASK/FSK demodulation analysis suites for IoT transmitter characterization
- Task planner feature with up to 20 pre-defined measurements
- Compatibility with Keysight U2000 Series USB power sensors
- Marker demodulation and user-definable soft keys
Included Accessories
- USB cable
- N-BNC adapter
- BNC cable
- Power cord
Applications
- EMI troubleshooting and test
- Radio link monitoring
- Wireless IoT device testing
- Educational applications
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 4 GHz |
| Tracking Generator | Yes |
| Noise Floor | -162 dBm |
| Product Type | Benchtop |
| Series | BSA Series |
| Display Type | 6.5" LCD |
| Includes | Calibration Certificate, USB Cable, N-BNC adapter, BNC cable, Power Cord |
| Input Connector | N-type female, BNC-type female, 100Base-T, USB B plug version 1.1, USB Mini-AB female version 1.1, IEEE-488 bus |
| Interface | GPIB, LAN / Ethernet, Other, RF, USB Host, USB |
| Memory | 64 MB |
| Minimum Frequency | 9 kHz |
| Resolution | 10 Hz to 3 MHz |
| Warranty | 5 Years |
