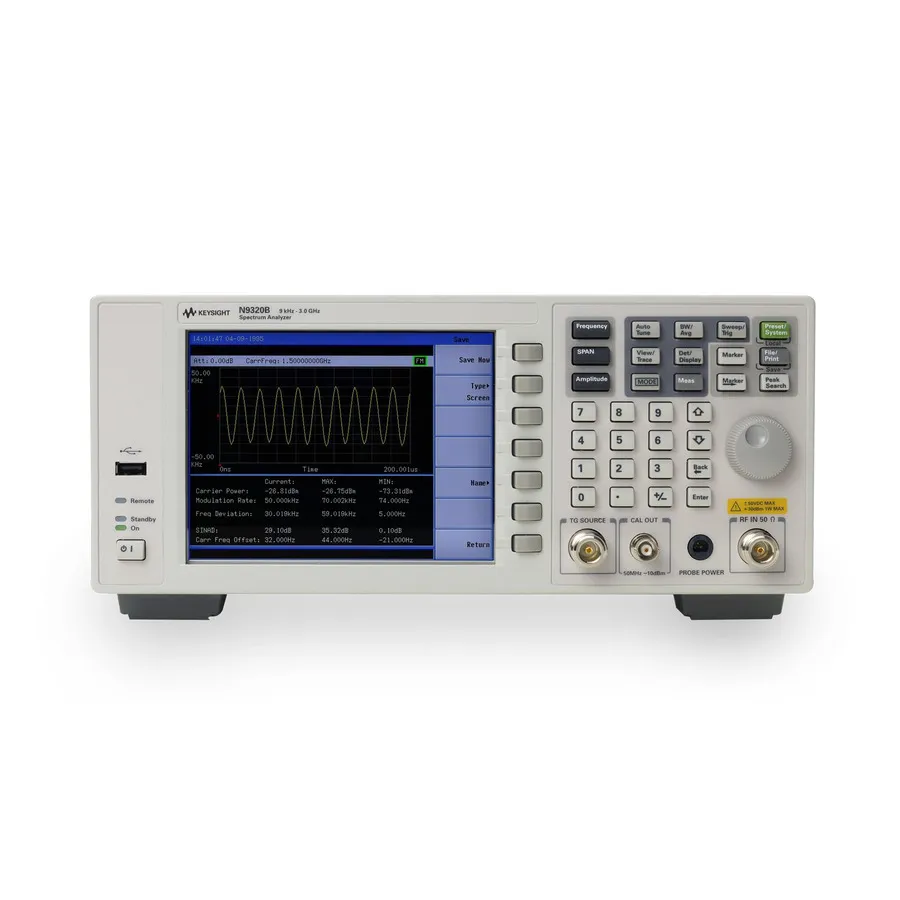

Keysight N9320B/TG3 Spectrum Analyzer
Request a quote
Keysight N9320B/TG3 benchtop spectrum analyzer with 9 kHz to 3 GHz frequency range and integrated tracking generator.
Product details
| Model | N9320B/TG3 |
| Manufacturer | Keysight |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9320B/TG3 is a portable benchtop spectrum analyzer that combines comprehensive frequency coverage from 9 kHz to 3 GHz with an integrated tracking generator. The instrument is designed for field service, laboratory, and production environments where RF and microwave signal analysis is required.
Key Features
- Frequency coverage: 9 kHz to 3 GHz
- Integrated tracking generator for stimulus-response and network measurements
- 6.5-inch color LCD display
- 16 GB internal storage for data logging and measurement storage
- Field-upgradeable options via keycode
Applications
- RF component characterization and testing
- Network analysis and return loss measurements
- Signal identification and frequency measurement
- Interference detection and analysis
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 3 GHz |
| Tracking Generator | Yes |
| Noise Floor | -148 dBm |
| Product Type | Benchtop |
| Display Type | 6.5" LCD |
| Includes | Quick start guide, Documentation CD-ROM, USB cable (A-B), N-BNC adapter, BNC cable, Power cord |
| Input Connector | N-type female, BNC-type female, USB A/B plug version 1.1, IEEE-488 bus, D-sub 15-pin female |
| Interface | GPIB, LAN / Ethernet, USB, VGA or SVGA Out |
| Memory | 16 MB |
| Minimum Frequency | 9 kHz |
| Resolution | 10 Hz to 1 MHz |
