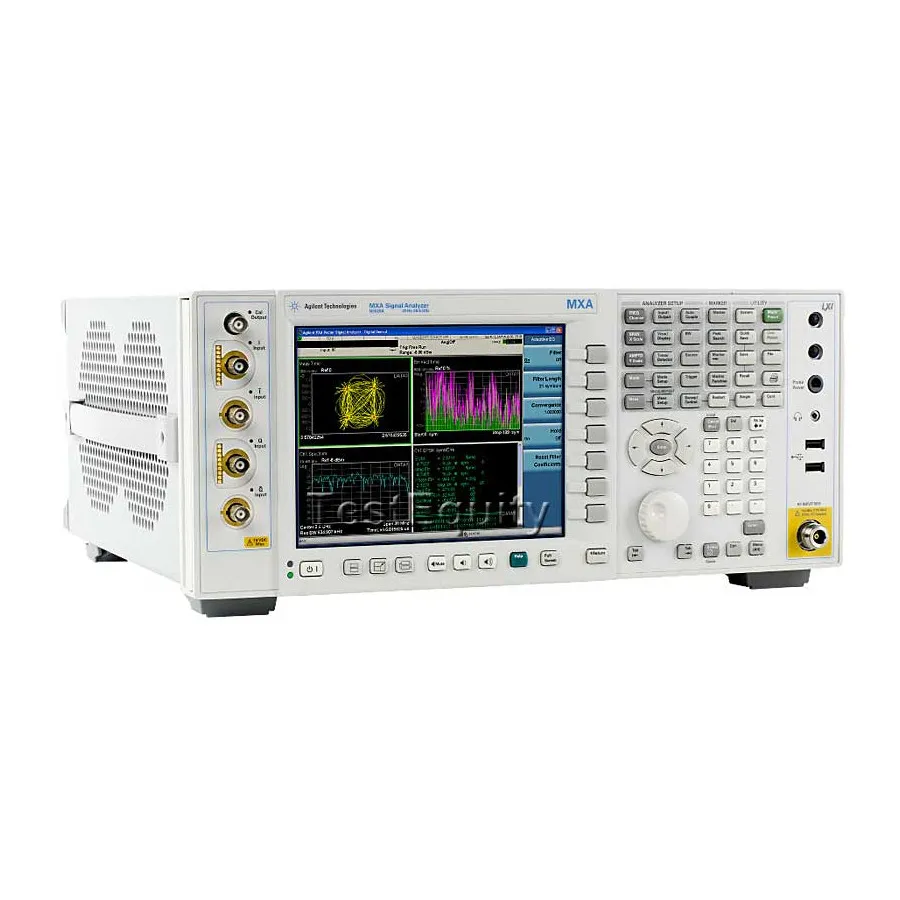

Keysight N9020A/526/B25/P26/PFR Spectrum Analyzer
Request a quote
Keysight N9020A spectrum analyzer with extended 26.5 GHz range, integrated preamplifier, and over 25 measurement applications for advanced wireless device testing.
Product details
| Model | N9020A/526/B25/P26/PFR |
| Manufacturer | Keysight |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9020A is a high-performance MXA signal analyzer from the X-Series family. This configuration extends the frequency range to 26.5 GHz with integrated preamplifier, enabling advanced testing of modern wireless technologies. The analyzer delivers fast spectrum analysis, real-time signal capture, and integration with the 89600 VSA software for comprehensive troubleshooting and characterization.
Key Features
- Extended frequency range: 10 Hz to 26.5 GHz
- Internal preamplifier options up to 26.5 GHz for enhanced sensitivity
- 25 MHz analysis bandwidth (40 MHz optional)
- Fast spectrum analysis with rapid measurement updates
- Real-time spectrum analysis for capturing transient signals
- Over 25 measurement applications covering cellular, wireless, digital video, and general purpose applications
- X-Series user interface with common architecture and Open Windows operating system
- 89600 VSA software for advanced analysis and troubleshooting
- Modern connectivity: LXI-C certified, USB, 100 Mbps LAN, GPIB
Applications
- Advanced wireless device development and verification
- Cellular and wireless signal analysis (LTE, 5G, etc.)
- High-frequency RF and microwave testing
- Transient and phase noise analysis
- Multi-format measurement and standards-based testing
Specifications
| Frequency Range | 15.0 - 30.0 GHz |
| Maximum Frequency | 26.5 GHz |
| Product Type | Benchtop |
| Series | MXA X-Series |
| Display Type | 8.4" LCD |
| Input Connector | Type-N female, SMA, female, BNC female, USB type-A female, 15-pin mini D-SUB, IEEE-488 bus connector, RJ45 Ethertwist |
| Interface | LAN TCP/IP interface, GPIB, USB 2.0 ports, Monitor output, Trigger 1 and 2 outputs |
| Memory | 8 GB |
| Minimum Frequency | 10 Hz |
| Resolution | 100 mHz to 3 MHz |
| Warranty | 3 Years |
