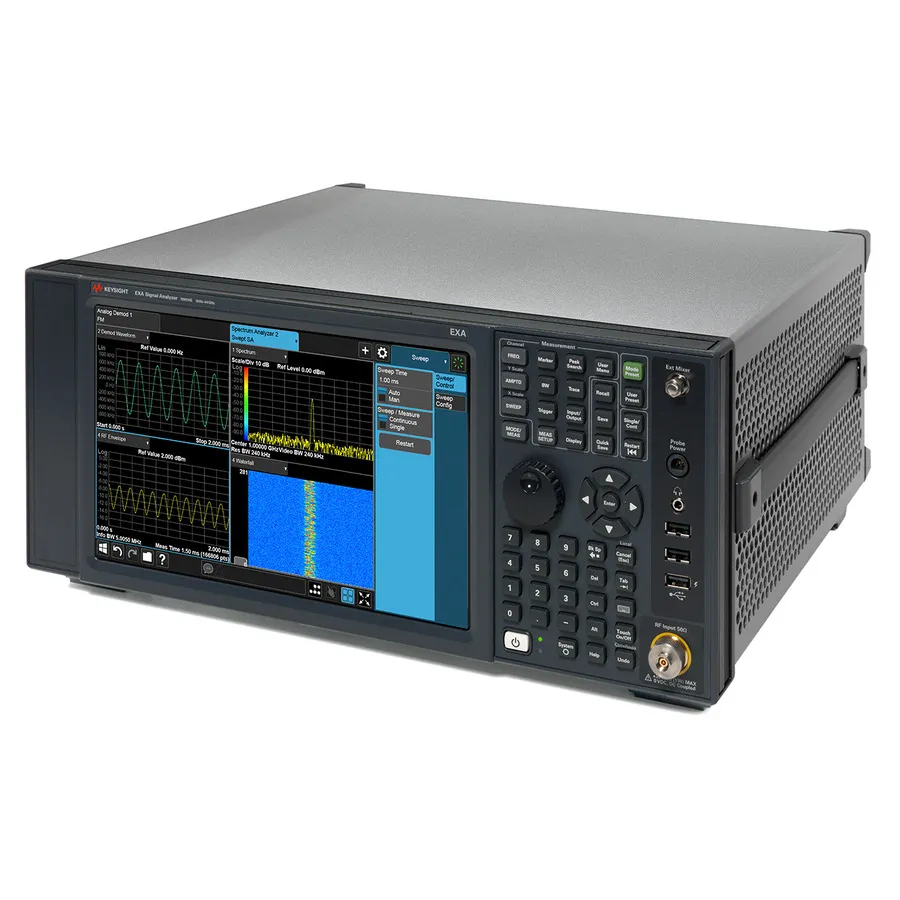

Keysight N9010B/544 EXA Signal Analyzer
Request a quote
Keysight N9010B/544 is a 44 GHz benchtop signal analyzer with 10.6-inch multi-touch display, fast sweep capability, and -172 dBm DANL sensitivity for precision measurements.
Product details
| Model | N9010B/544 |
| Manufacturer | Keysight |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9010B/544 EXA Signal Analyzer is a high-performance, 44 GHz benchtop spectrum analyzer designed for precision signal analysis and characterization. The intuitive 10.6-inch multi-touch interface and advanced measurement applications enable thorough signal characterization and troubleshooting for cellular, wireless connectivity, and broadband applications.
Key Features
- Frequency range: 10 Hz to 44 GHz
- Displayed Average Noise Level (DANL): -172 dBm at 2 GHz with preamplifier
- Third-order intermodulation (TOI) distortion: +19 dBm at 2 GHz
- Phase noise: -109 dBc/Hz at 10 kHz offset (1 GHz), -102 dBc/Hz (10 GHz)
- Amplitude accuracy: ±0.27 dB
- Fast sweep capability for efficient spurious response measurements
- Standard 25 MHz analysis bandwidth (up to 40 MHz optional)
- Multi-touch 10.6-inch display for intuitive operation
- Integrated PowerSuite measurement application
- Optional fine attenuator (2 dB/step) or electronic attenuator (1 dB/step)
Applications
- Cellular and wireless communication signal analysis
- Spectrum and spurious emission measurements
- Signal characterization and modulation analysis
- Millimeter-wave frequency measurements
- Manufacturing test and field deployment
Included Accessories
- Spectrum analyzer measurement application
- Bench top configuration (straps, feet, tilt stand)
- Power cord
Specifications
| Frequency Range | 30.0 - 60.0 GHz |
| Maximum Frequency | 44 GHz |
| Tracking Generator | No |
| Noise Floor | -165 dBm |
| Product Type | Benchtop |
| Preamplifier | No |
| Series | EXA X-Series |
| Display Type | 10.6" LCD |
| Input Connector | Type-N female, USB Type-A female, SMA, female, BNC female, USB Type-B female, IEEE-488 bus connector, RJ45 Ethertwist |
| Interface | Analog Output, GPIB, LAN / Ethernet, Other, USB |
| Memory | 16 GB |
| Minimum Frequency | 10 Hz |
| Resolution | 25 MHz |
