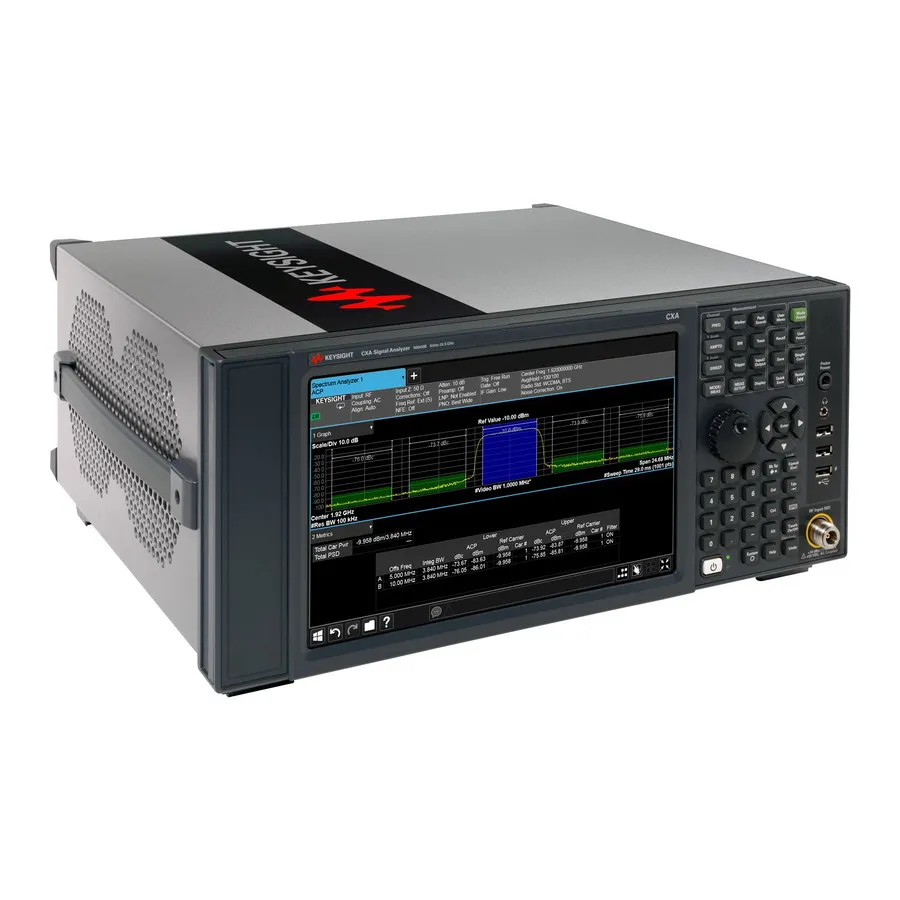

Keysight N9000B/526/T06 Signal Analyzer
Request a quote
Keysight N9000B/526/T06 is a signal analyzer with 9 kHz-26.5 GHz coverage, 10 MHz bandwidth, tracking generator, and multi-touch display for RF testing.
Product details
| Model | N9000B/526/T06 |
| Manufacturer | Keysight |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9000B/526/T06 CXA signal analyzer is a benchtop instrument designed for comprehensive RF and wireless signal characterization. With frequency coverage from 9 kHz to 26.5 GHz and an integrated tracking generator, this analyzer provides stimulus-response measurement capabilities in a single platform. The 10.6-inch multi-touch display and streamlined user interface enable efficient operation and intuitive access to advanced measurement functions for professional testing environments.
Key Features
- Frequency range: 9 kHz to 26.5 GHz
- Analysis bandwidth: 10 MHz
- Amplitude accuracy: ±0.5 dB
- Integrated tracking generator
- Multi-touch 10.6" display
- Dual-core 64-bit processor with 8 GB RAM
- DANL: -163 dBm at 1 GHz, -147 dBm at 26.5 GHz (with preamplifier)
- USB 3.0, 100Base-T LAN, GPIB connectivity
- Removable SD card storage
Applications
- Wireless communications testing and standards compliance (LTE, W-CDMA)
- RF component and device characterization
- Phase noise and noise figure analysis
- Pulse measurements and analog demodulation
- EMI precompliance testing and troubleshooting
Specifications
| Frequency Range | 15.0 - 30.0 GHz |
| Maximum Frequency | 26.5 GHz |
| Tracking Generator | Yes |
| Noise Floor | -163 dBm |
| Product Type | Benchtop |
| Series | CXA X-Series |
| Display Type | 10.6" LCD |
| Input Connector | Type-N female, USB Type “A” (female), BNC female, 15-pin mini D-SUB, IEEE-488 bus connector, 1000BaseT |
| Interface | GPIB, LAN / Ethernet, Other, USB Host, USB, VGA or SVGA Out |
| Memory | 8 GB |
| Minimum Frequency | 9 kHz |
| Warranty | 3 Years |
