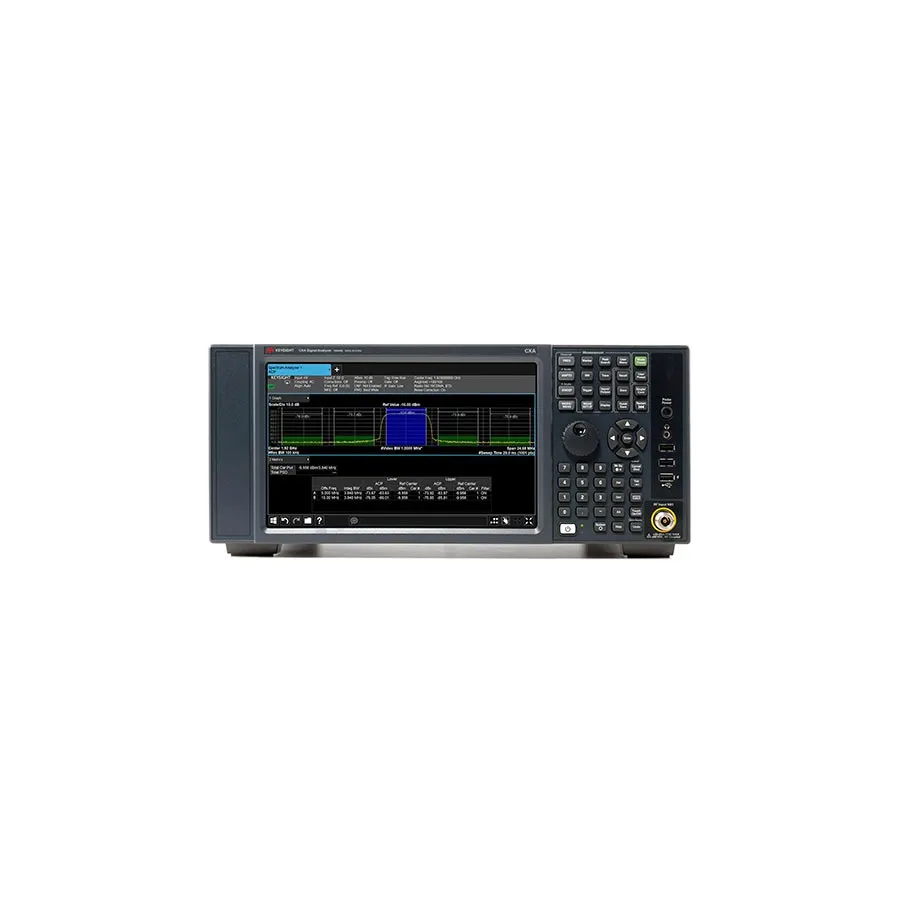

Keysight N9000B/513 CXA Signal Analyzer
Request a quote
Keysight N9000B/513 CXA signal analyzer covers 9 kHz to 13.6 GHz with 10 MHz bandwidth, ±0.5 dB accuracy, and 10.6" multi-touch display for extended frequency characterization.
Product details
| Model | N9000B/513 |
| Manufacturer | Keysight |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9000B/513 CXA is a benchtop signal analyzer designed for extended frequency range characterization of RF and microwave signals. With its 10.6" multi-touch interface, dual-core 64-bit processor, and proven X-Series measurement algorithms, it delivers intuitive operation and repeatable results for demanding testing applications up to 13.6 GHz.
Key Features
- Frequency range: 9 kHz to 13.6 GHz
- 10 MHz analysis bandwidth
- ±0.5 dB absolute amplitude accuracy
- Dual-core 64-bit processor with 8 GB RAM and removable SD card
- DANL: -147 dBc/Hz at 2 GHz (no preamplifier); -163 dBm at 1 GHz (with preamplifier)
- Up to +17 dBm third-order intercept (TOI)
- Built-in tracking generator for stimulus/response measurements
- Wideband IF output, USB 3.0, 100Base-T LAN, and GPIB connectivity
- 10.6" multi-touch display for intuitive control
- PowerSuite measurements: channel power, adjacent channel power (ACP), occupied bandwidth (OBW), CCDF, and SEM
- License-key upgrade capability for additional measurement applications
- Three-year warranty
Applications
- High-frequency signal analysis and troubleshooting
- Wideband RF and microwave device testing
- Educational and training environments
- Phase noise and noise figure measurements
- Pulse analysis and analog demodulation
- LTE/LTE-Advanced and W-CDMA wireless testing
- EMI precompliance characterization
- Parametric and standards-compliant measurements
Specifications
| Frequency Range | 8.0 - 15.0 GHz |
| Maximum Frequency | 13.6 GHz |
| Noise Floor | -163 dBm |
| Product Type | Benchtop |
| Series | CXA X-Series |
| Display Type | 10.6" LCD |
| Input Connector | Type-N female, USB Type “A” (female), BNC female, 15-pin mini D-SUB, IEEE-488 bus connector, 1000BaseT |
| Interface | GPIB, LAN / Ethernet, Other, USB Host, USB, VGA or SVGA Out |
| Memory | 8 GB |
| Minimum Frequency | 9 kHz |
| Warranty | 3 Years |
