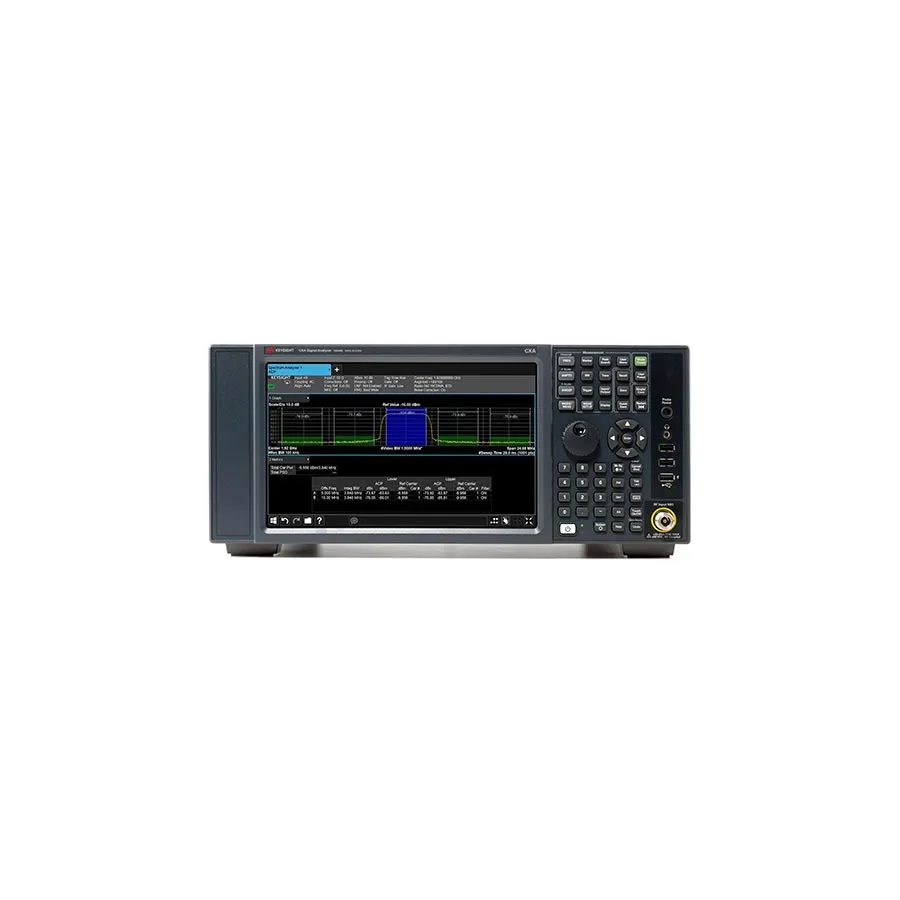

Keysight N9000B/070/T03 Signal Analyzer
Request a quote
Entry-level Keysight CXA signal analyzer with 7 GHz frequency range, integrated preamplifier, precision frequency reference, and 3 GHz tracking generator for RF testing.
Product details
| Model | N9000B/070/T03 |
| Manufacturer | Keysight |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9000B/070/T03 is a cost-effective member of the X-Series signal analyzers, designed for essential signal characterization in industrial communications, RF design, and IoT applications. This bundle configuration includes a 7 GHz analyzer with integrated preamplifier, precision frequency reference, step attenuator, and 3 GHz tracking generator for comprehensive stimulus-response measurements and circuit characterization.
Key Features
- Frequency range: 9 kHz to 7 GHz (extended range)
- Internal fully calibrated preamplifier up to 7 GHz
- Fine resolution step attenuator for signal level adjustment
- Precision frequency reference for accurate measurements
- Tracking generator: 9 kHz to 3 GHz for stimulus-response testing
- Resolution bandwidth: 1 Hz to 8 MHz
- Displayed average noise level: -163 dBm/Hz at 1 GHz with preamplifier
- Third order intercept: +17 dBm at 1 GHz
- Absolute amplitude accuracy: ±0.5 dB
- 10 MHz analysis bandwidth
- 10.6-inch multi-touch display
- Dual-core 64-bit processor with 8 GB RAM
Applications
- RF design verification and engineering
- Manufacturing test and repair service
- Industrial communications system analysis
- IoT device characterization
- General-purpose spectrum analysis
Specifications
| Frequency Range | 4.0 - 8.0 GHz |
| Maximum Frequency | 7.5 GHz |
| Tracking Generator | Yes |
| Noise Floor | -163 dBm |
| Product Type | Benchtop |
| Preamplifier | Yes |
| Series | CXA X-Series |
| Display Type | 10.6" LCD |
| Input Connector | Type-N female, USB Type “A” (female), BNC female, 15-pin mini D-SUB, IEEE-488 bus connector, 1000BaseT |
| Interface | GPIB, LAN / Ethernet, Other, USB Host, USB, VGA or SVGA Out |
| Memory | 8 GB |
| Minimum Frequency | 9 kHz |
| Warranty | 3 Years |
