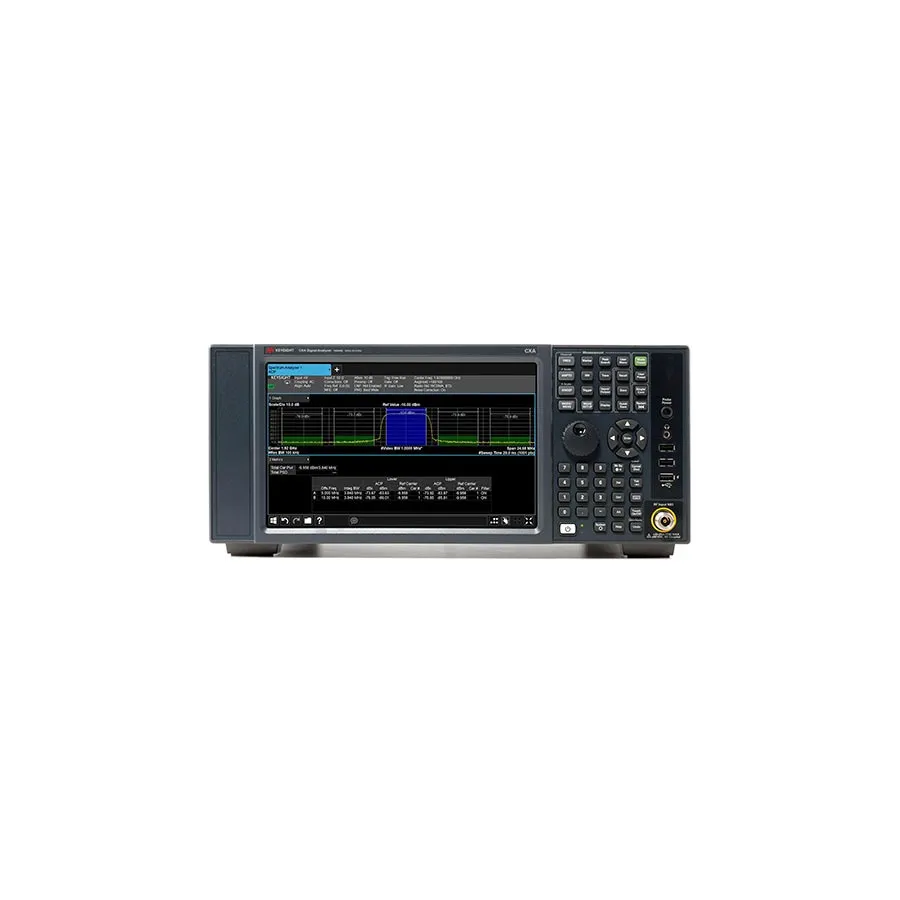

Keysight N9000B/030/T03 Signal Analyzer Bundle
Request a quote
Keysight N9000B/030/T03 3 GHz Signal Analyzer bundle with tracking generator, preamplifier, attenuator, and frequency reference for RF measurement.
Product details
| Model | N9000B/030/T03 |
| Manufacturer | Keysight |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9000B/030/T03 Signal Analyzer Bundle is an entry-level spectrum and signal analyzer with integrated tracking generator for essential signal characterization in industrial communications and IoT applications. This bundle includes a preamplifier, step attenuator, and precision frequency reference to provide a complete measurement platform for RF design verification, engineering, manufacturing, and service work.
Key Features
- Frequency range: 9 kHz to 3 GHz
- Tracking Generator: 9 kHz to 3 GHz
- Internal fully calibrated preamplifier up to 3 GHz
- Fine resolution step attenuator
- Precision frequency reference
- Resolution bandwidth: 1 Hz to 8 MHz
- Displayed average noise level: -163 dBm/Hz (at 1 GHz)
- Third order interception: +17 dBm (at 1 GHz)
- Amplitude accuracy: ±0.5 dB (at 1 GHz)
- Phase noise: -110 dBc/Hz (10 kHz offset at 1 GHz)
- Maximum analysis bandwidth: 25 MHz
- Dual-core processor with 8 GB RAM and removable SSD
Applications
- RF design verification and prototyping
- Filter and amplifier characterization
- Signal characterization for industrial communications
- IoT device testing and validation
- Analog and digital demodulation analysis
- EMI emission measurement
- LoRa and NB-IoT signal analysis
- Manufacturing and field service
Included Accessories
- Spectrum analyzer measurement application
- Tracking Generator (9 kHz to 3 GHz)
- 3 GHz Preamplifier
- Fine Resolution Step Attenuator
- Precision Frequency Reference
- Windows 10 operating system
- Power cord
- User's guide (embedded help system)
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 3 GHz |
| Tracking Generator | Yes |
| Noise Floor | -163 dBm |
| Product Type | Benchtop |
| Preamplifier | Yes |
| Series | CXA X-Series |
| Display Type | 10.6" LCD |
| Input Connector | Type-N female, USB Type “A” (female), BNC female, 15-pin mini D-SUB, IEEE-488 bus connector, 1000BaseT |
| Interface | GPIB, LAN / Ethernet, Other, USB Host, USB, VGA or SVGA Out |
| Memory | 8 GB |
| Minimum Frequency | 9 kHz |
| Warranty | 3 Years |
