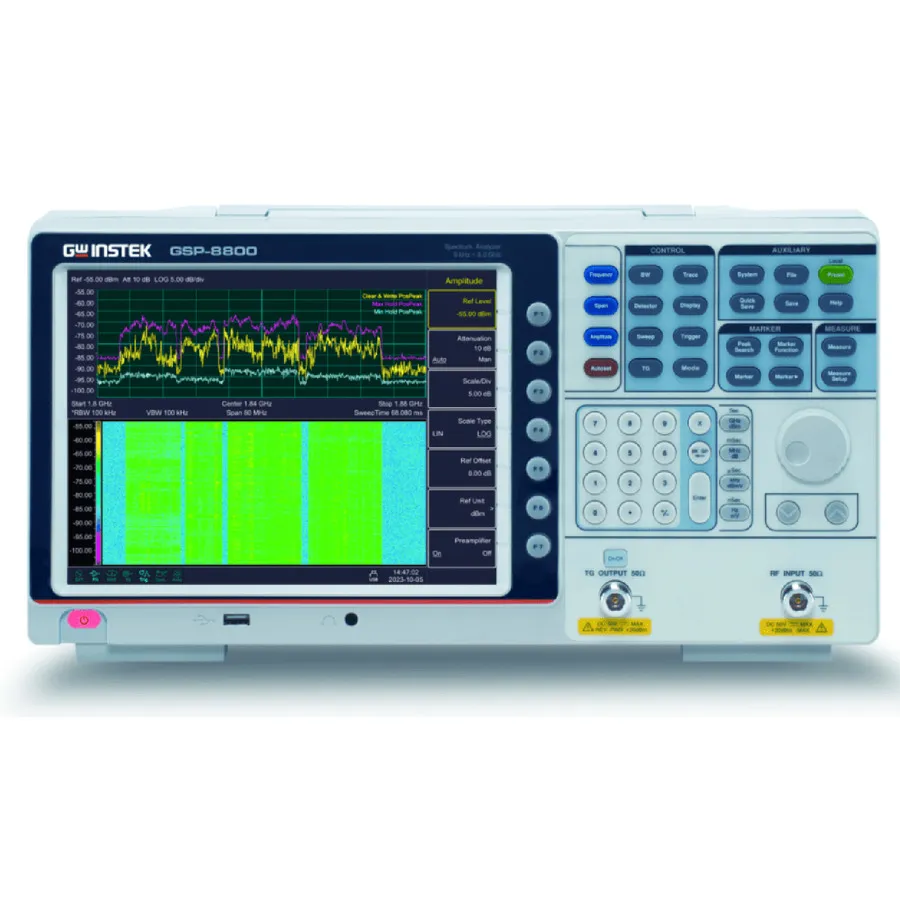

GW Instek GSP-8800TG Spectrum Analyzer
Request a quote
GW Instek GSP-8800TG benchtop spectrum analyzer with integrated tracking generator, covers 9kHz–8.8GHz with -160dBm/Hz sensitivity and comprehensive RF measurement capabilities.
Product details
| Model | GSP-8800TG |
| Manufacturer | GW Instek |
| Category | Benchtop Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The GW Instek GSP-8800TG is a benchtop spectrum analyzer covering 9kHz to 8.8GHz with an integrated tracking generator for scalar network analysis and component characterization. Part of the GSP-8000 series, it is suitable for education, R&D verification, and production testing of radio frequency products. It provides comprehensive measurement functions, including AM/FM demodulation, channel power measurement, and time domain analysis.
Key Features
- Frequency range: 9kHz to 8.8GHz
- Tracking generator: 100kHz to 8.8GHz with -40 to 0 dBm output
- Resolution bandwidth: 1Hz to 1MHz in 1-3-5-10 steps
- Video bandwidth: 10Hz to 3MHz in 1-3-5-10 steps
- Phase noise: -104 dBc/Hz
- Sensitivity: -160dBm/Hz typical (with 20dB preamplifier)
- 20dB preamplifier included standard
- Built-in AM/FM demodulation and channel power measurement
- Time Spec function for simultaneous power, frequency, and time observation
- Measurement functions: ACPR, OCBW, CHPW, NdB bandwidth, Pass-Fail, frequency counter, noise marker
- 10.4-inch XGA TFT LCD display (1024×768 resolution)
- Communication interfaces: USB Host/Device and LAN
- Optional EMI filter (model GSP-8800E1)
Applications
- Scalar network analysis (S11, S21 measurements)
- RF component frequency response and power linearity testing
- Cable, attenuator, filter, and amplifier characterization
- Spectrum characteristics analysis
- Signal monitoring and demodulation analysis
- EMI testing and debugging (with EMI filter option)
Included Accessories
- Power cord
- Safety guide
- USB cable
Specifications
| Frequency Range | 8.0 - 15.0 GHz |
| Maximum Frequency | 8.8 GHz |
| Tracking Generator | Yes |
| Noise Floor | -160 dBm |
| Product Type | Benchtop |
| Preamplifier | Yes |
| Series | GSP-8000 Series |
| Display Type | 10.4" TFT LCD |
| Includes | Power Cord, Safety Guide, USB Cable |
| Interface | LAN / Ethernet, Other, USB Host, Headphone/mic-in jack, USB |
| Minimum Frequency | 9 kHz |
