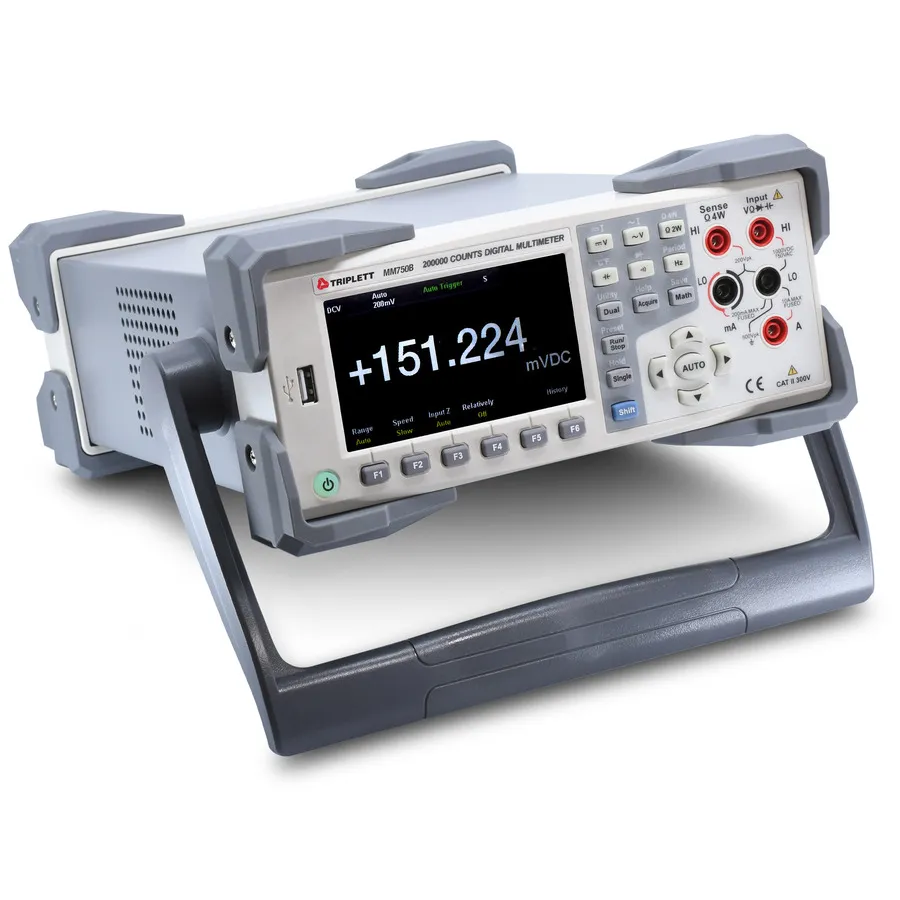

Triplett MM750B Digital Multimeter

Overview

The Triplett MM750B is a highly accurate benchtop TRMS digital multimeter designed for precision measurements in various applications including PC board testing and repair, product design and testing, engineering and electronics labs, calibration labs, and automated testing. It features a large 4.3-inch TFT LCD dual display with 200,000 count resolution, providing clear visibility of measurements.

Key Features

• True RMS (TRMS) measurement for accurate readings of non-sinusoidal and noisy waveforms
• 200,000 count 4.3-inch TFT LCD dual display
• AC/DC Voltage and Current measurement (AC/DC V, AC/DC A, microampere)
• Resistance, Temperature, Capacitance, Frequency (20Hz-1MHz), and dB/dBm measurement
• Advanced features: Min/Max/Average, Data Hold, Standard deviation, Relative mode, Pass/Fail
• Bar chart, histogram, and trend chart displays for data visualization
• Diode test (0V-4V range)
• Supports SCPI remote control commands for automated testing
• Multiple connectivity interfaces: USB Device/Host, LAN, GPIB, RS-232C
• CAT II 300V safety category rating

Applications

• PC board testing and repair
• Product design and testing
• Educational electronics and engineering labs
• Calibration laboratory work
• Automated test systems

Included Accessories

• MM750B Multimeter
• AC power cord
• Test leads
• RS-232 cable
• USB cable with software
