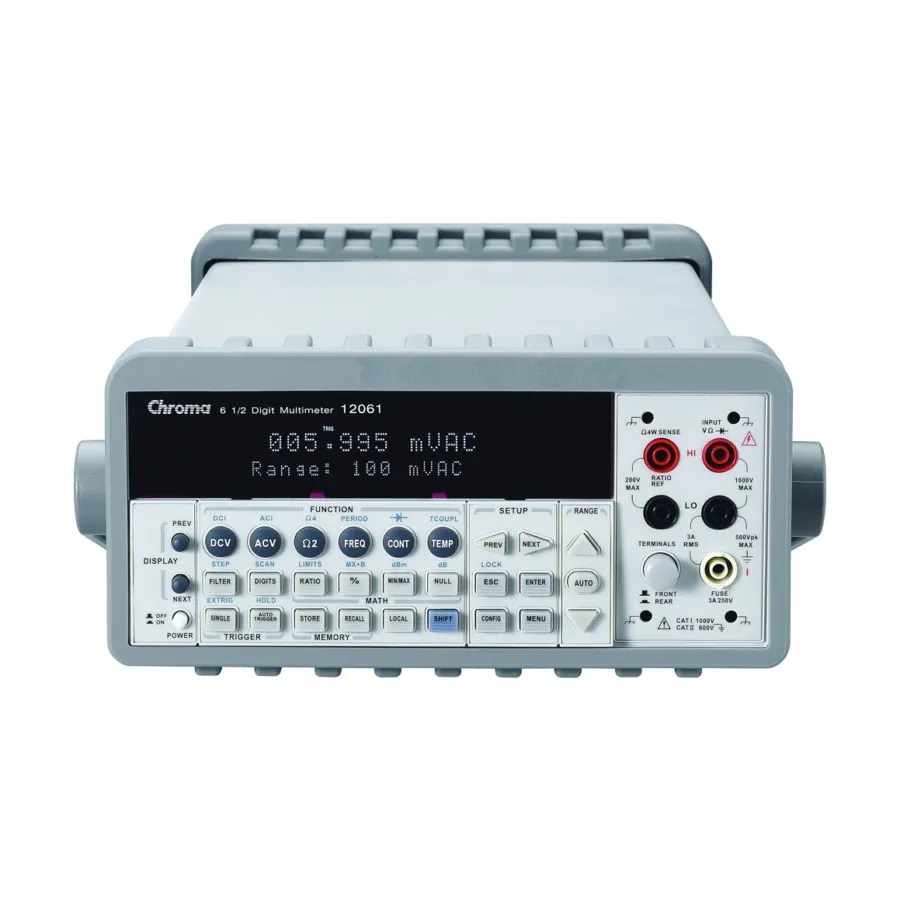

Chroma 12061 Digital Multimeter

Overview

The Chroma 12061 is a high-resolution benchtop digital multimeter offering exceptional accuracy and speed for demanding measurement applications. With 6.5-digit resolution and DC voltage accuracy of 0.0015%, this instrument is ideal for research, manufacturing, and quality assurance environments. The multimeter supports 11 types of measurements including voltage, current, resistance, temperature, frequency, and diode testing with measurement rates up to 2000 readings per second.

Key Features

• 6.5-digit resolution with exceptional accuracy: 0.0015% DC voltage, 0.04% AC voltage
• 11 types of measurement characteristics: DC/AC voltage and current, 2/4-wire resistance, period, frequency, diode, continuity, and temperature
• High-speed measurement: up to 2000 readings per second (4.5 digits)
• 2000-reading internal memory for data logging
• Multiple math functions: NULL, Max/Min/Avg, limits, percentage/ratio/MX+B, dB/dBm
• Temperature measurement with 7 thermocouple types (E, J, K, N, R, S, T) and RTD support with ITS-90, IEC751, and Callendar-Van Dusen conversion
• PASS/FAIL signal output via USB for automated test systems (floating, PSS, FAIL, GND signals in 2ms response)
• USB and optional GPIB interfaces with standard SCPI control and USBTMC support
• Optional multi-point thermocouple scanner (10 channels) and general-purpose scanner cards (10/20 channels)
• Software control support and LabVIEW/LabWindows drivers

Applications

• High-precision DC/AC voltage and current measurements in laboratories and production environments
• Temperature monitoring with thermocouple and RTD sensors
• Automated test equipment (ATE) integration for pass/fail testing
• Data acquisition and long-term monitoring with memory storage

Included Accessories

• Power cord
• USB cable
• Standard test leads
• CD-ROM User's Manual
