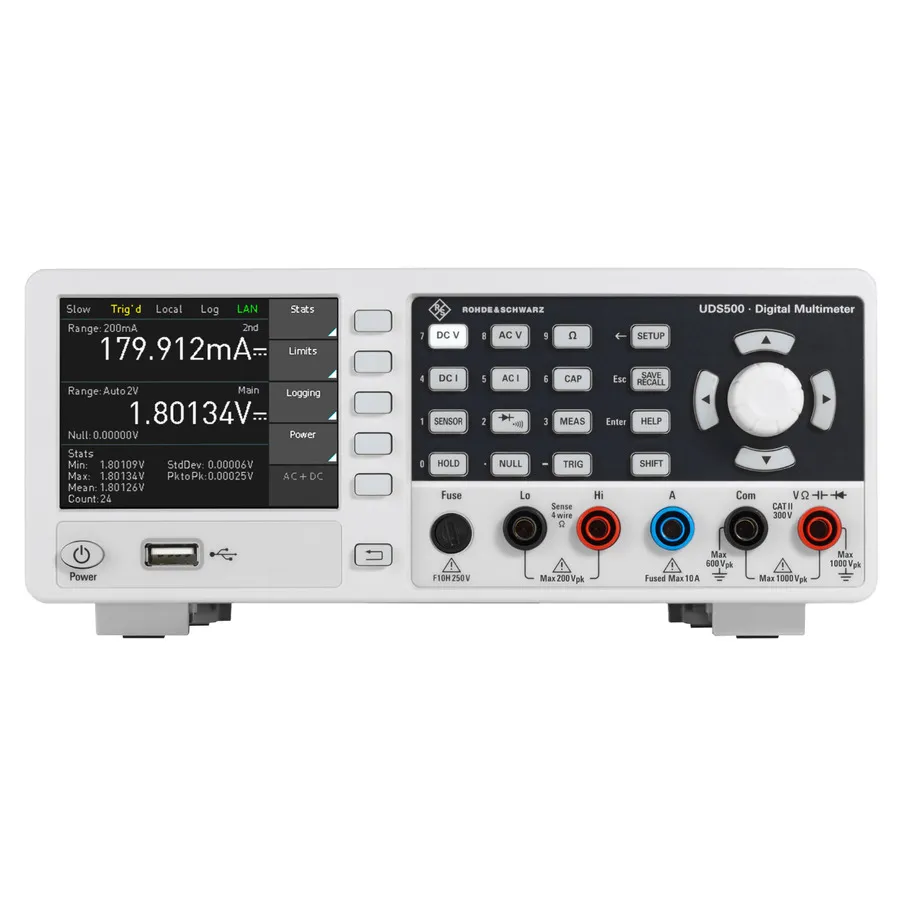

Rohde & Schwarz UDS500-G Digital Multimeter

Overview

The Rohde & Schwarz UDS500-G is a 5.5-digit benchtop digital multimeter with IEEE-488 (GPIB) interface for integration into automated test systems. It features 0.015% DC accuracy and simultaneous three-measurement display, supporting both standalone laboratory use and networked test environments.

Key Features

• 5.5 digit resolution with up to 2,000,000 counts
• 0.015% basic DC accuracy
• Measurement range: DC to 100 kHz
• Up to 200 readings per second
• 12 measurement functions including DCV, DCI, true RMS, ACV, ACI, frequency, resistance (2/4-wire), capacitance, continuity, diode test, temperature, power
• Mathematical functions: limit testing, min/max, average, offset, DC power, dB, dBm
• 3.5-inch QVGA color display with simultaneous three-measurement display
• USB, LAN (Ethernet), and IEEE-488 (GPIB) interfaces
• SCPI command support for remote control and automation
• Data logging to USB with up to 10 samples per second (CSV format)
• Programmable limit testing with visual feedback

Applications

• Automated test systems and production line integration
• Laboratory testing with remote control capabilities
• Circuit troubleshooting and component testing
• System validation and quality assurance
• Precision resistance measurement (2/4-wire)

Included Accessories

• Set of power cables
• Quick start guide
