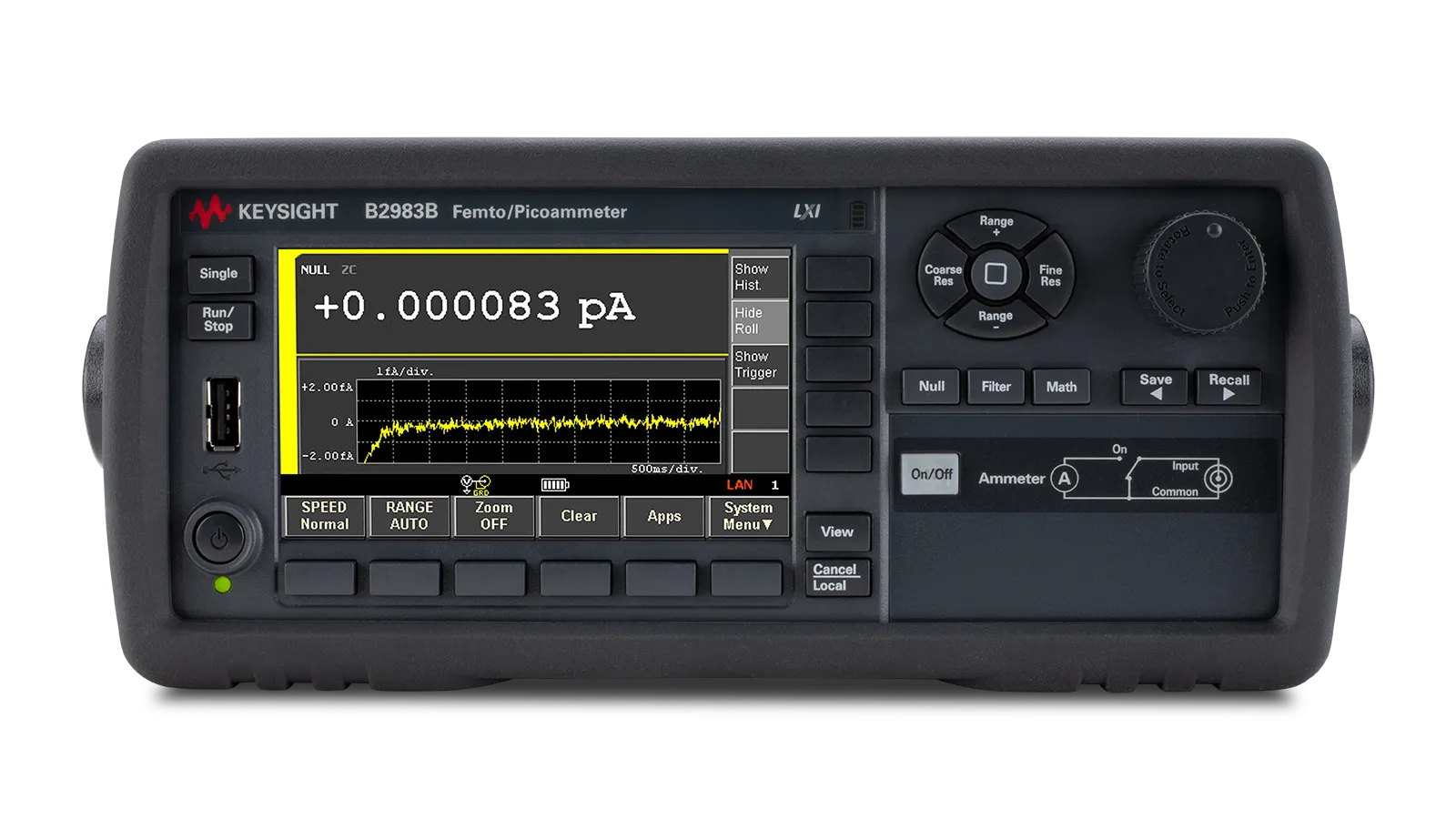

Keysight B2983B Femto/Picoammeter

Overview

The Keysight B2983B is the world's only battery-powered graphical picoammeter delivering exceptional measurement confidence with 0.01 fA (10^-17 A) minimum resolution. Battery operation eliminates AC power line noise, enabling low-level measurements previously impossible with line-powered instruments. It features a 4.3-inch color LCD with intuitive graphical user interface supporting trend charts, histograms, and numeric viewing modes for capturing transient behavior and performing quick statistical analyses without a PC.

Key Features

• 0.01 fA (10^-17 A) minimum measurement resolution with 6.5 digits precision
• 2 pA to 20 mA current measurement ranges
• Battery operation for up to 7 hours of AC noise-free measurements
• Less than 20 μV burden voltage in lowest current range
• High-speed reading rate up to 20,000 readings per second
• 4.3-inch color LCD with graphical user interface
• Multiple viewing modes: Meter, Graph, Histogram, Roll View
• Auto navigation to select optimal range and aperture
• Real-time noise monitoring capability
• Versatile connectivity: USB 2.0, LAN, GPIB, LXI Core
• Front-panel USB for data storage and configuration
• Optional Setup Integrity Checker for noise isolation
• Free PC control software

Applications

• Material science characterization: polymers, dielectrics, semiconductors, metals
• Device testing: transistors, sensors, diodes, capacitors
• Low-current electromechanical measurements
• Electrochemical and ferroelectric material analysis
