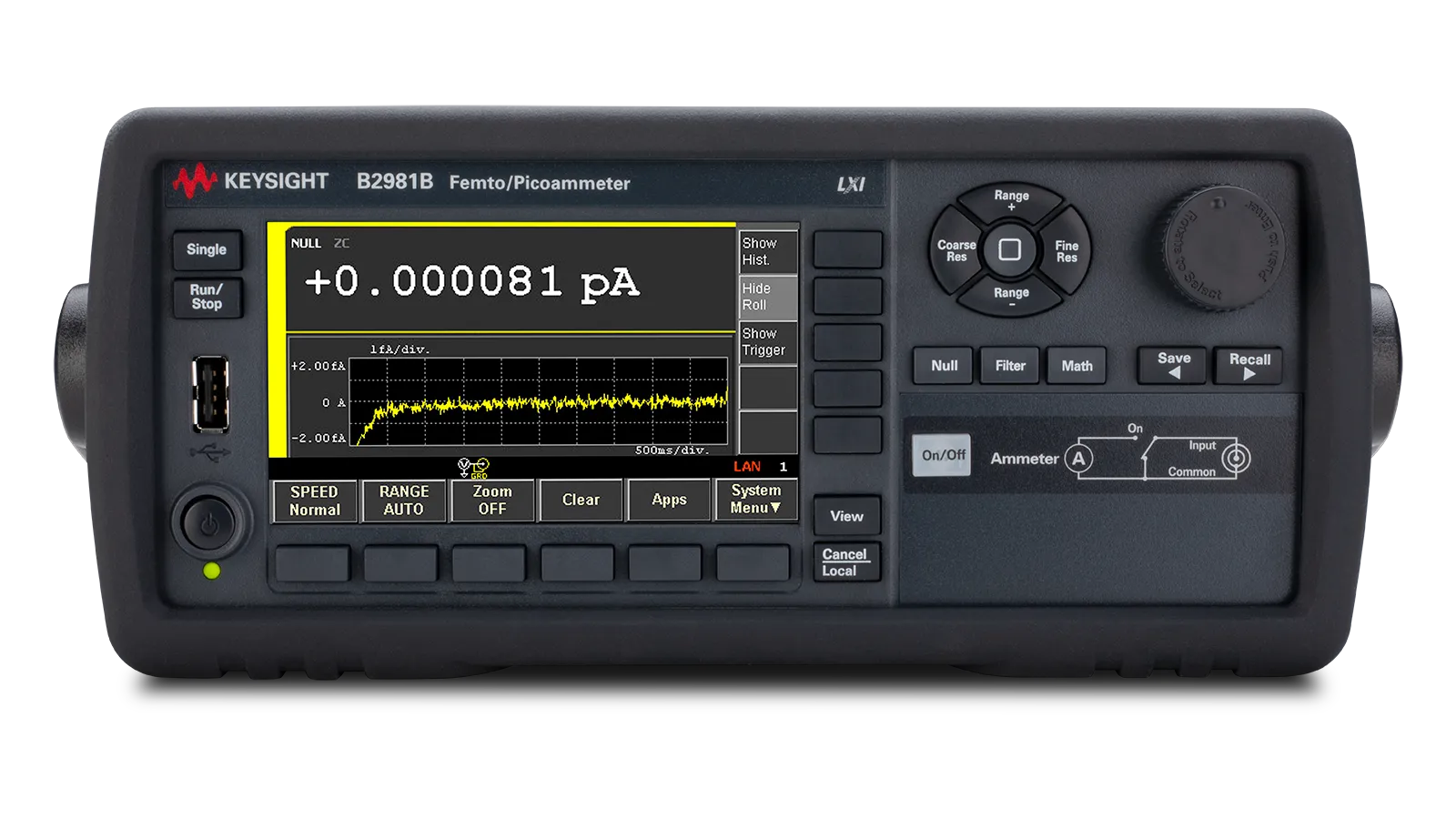

Keysight B2981B Femto/Picoammeter

Overview

The Keysight B2981B is a graphical femto/picoammeter designed for precise low-level current measurements down to 0.01 fA (10^-17 A) resolution. It features a 4.3-inch color LCD with an intuitive graphical user interface that provides real-time trend charts and histograms, enabling users to capture transient behavior and perform statistical analyses directly on the instrument without requiring a PC.

Key Features

• 0.01 fA (10^-17 A) minimum measurement resolution with 2 pA to 20 mA current ranges
• 6.5 digits measurement resolution
• Less than 20 μV burden voltage in lowest current range
• High speed reading rate up to 20,000 readings per second
• 4.3-inch color LCD display with graphical user interface
• Multiple viewing modes: Meter, Graph, Histogram, and Roll View
• Auto navigation for optimal range and aperture selection
• Versatile connectivity: USB 2.0, LAN, GPIB, and LXI Core
• Front-panel USB for data storage and configuration management
• Optional Setup Integrity Checker for noise source isolation
• Free PC control software included

Applications

• Material science characterization (semiconductors, polymers, dielectrics)
• Device and component testing (transistors, sensors, capacitors)
• Low-current electromechanical measurements
• Electrochemical analysis and research

Included Accessories

• Power cable
• USB cable
• Triax cable (1.5 m)
• Ground connection cable
• Banana to screw-lug adapter
• Earthing wire (2 m)
• Open cap for triax connector
• Quick Reference guide
