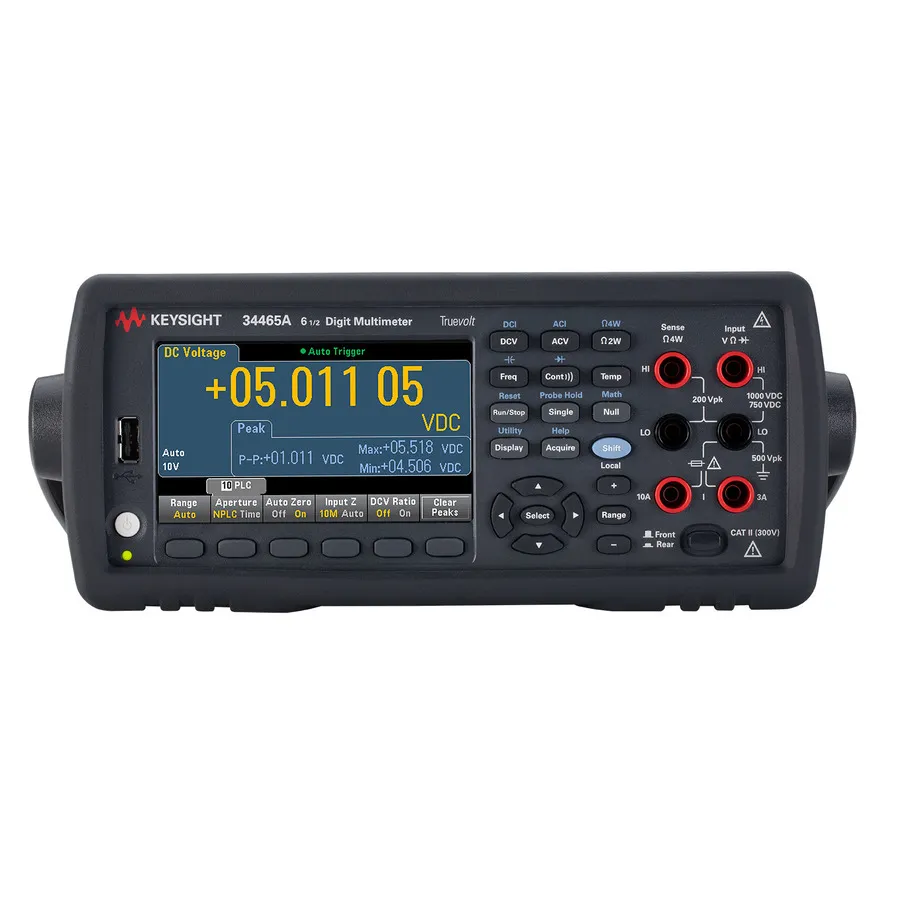

Keysight 34465A Digital Multimeter

Overview

The Keysight 34465A is a 6-1/2 digit benchtop digital multimeter with Truevolt technology offering significantly faster measurement speeds than lower models. This instrument is optimized for high-speed data acquisition and transient signal capture, with the ability to store up to 2 million readings. Front and rear terminals provide flexible measurement configurations, and built-in network connectivity enables remote operation and automated test system integration.

Key Features

• 6-1/2 digit resolution with measurements up to 1000 VDC and 750 VAC
• 30 ppm DCV basic accuracy
• Maximum reading rate of 50,000 readings/s for high-speed data capture
• Memory of 50,000 readings standard; optional upgrade to 2 million readings
• Front and rear input terminals with independent measurement channels
• Color graphical display with number, histogram, bar chart, trend chart, math, and statistics
• Truevolt technology with 50 nanoampere minimum current measurement
• Measurements include DCV, ACV, DCI, ACI, 2- and 4-wire resistance, frequency, period, diode, and temperature with thermocouple support
• USB and LAN/LXI connectivity included; optional GPIB interface
• Three-year warranty

Applications

• High-speed transient signal measurement and analysis
• Automated test equipment and data logging systems
• Research facility and laboratory testing
• Power supply and battery characterization
• Semiconductor device testing and qualification

Included Accessories

• 34138A test lead set with probes and fine-tip adapters
• SMT grabbers and mini grabber attachments
• USB cable
• Power cord
• Calibration certificate
