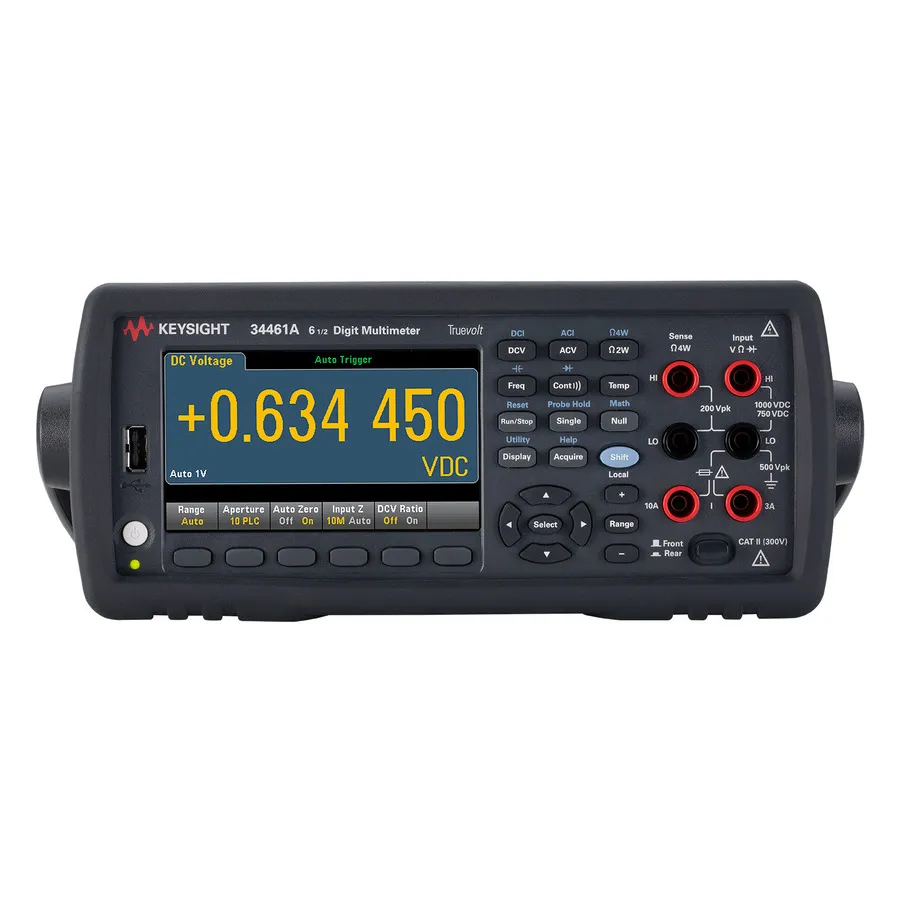

Keysight 34461A Digital Multimeter

Overview

The Keysight 34461A is a 6-1/2 digit benchtop digital multimeter with Truevolt technology for noise rejection and improved measurement confidence. Featuring a color graphical display with advanced analysis modes, this instrument offers improved specifications over the 34460A, including better accuracy, faster reading rates, and dual-terminal input configuration. The 34461A serves as a 100% drop-in replacement for the Keysight 34401A with enhanced capabilities.

Key Features

• 6-1/2 digit resolution with measurements up to 1000 VDC and 750 VAC
• 35 ppm DCV basic accuracy
• Maximum reading rate of 1,000 readings/s with 10,000 reading memory
• Front and rear input terminals for flexible connection options
• Color graphical display with histogram, bar chart, trend analysis, math, and statistics
• Truevolt technology with 50 nanoampere current sensitivity
• Measurements include DCV, ACV, DCI, ACI, 2- and 4-wire resistance, frequency, period, continuity, diode, and temperature
• USB and LAN/LXI included; optional GPIB interface
• Three-year warranty

Applications

• Legacy equipment replacement and system upgrades
• High-speed data logging and transient capture
• Network-connected instrument systems
• Design verification and characterization testing
• Automated test equipment (ATE) integration

Included Accessories

• 34138A test lead set with probes and fine-tip adapters
• SMT grabbers and mini grabber attachments
• USB cable
• Power cord
• Calibration certificate
• Documentation CD
• IO Libraries CD
