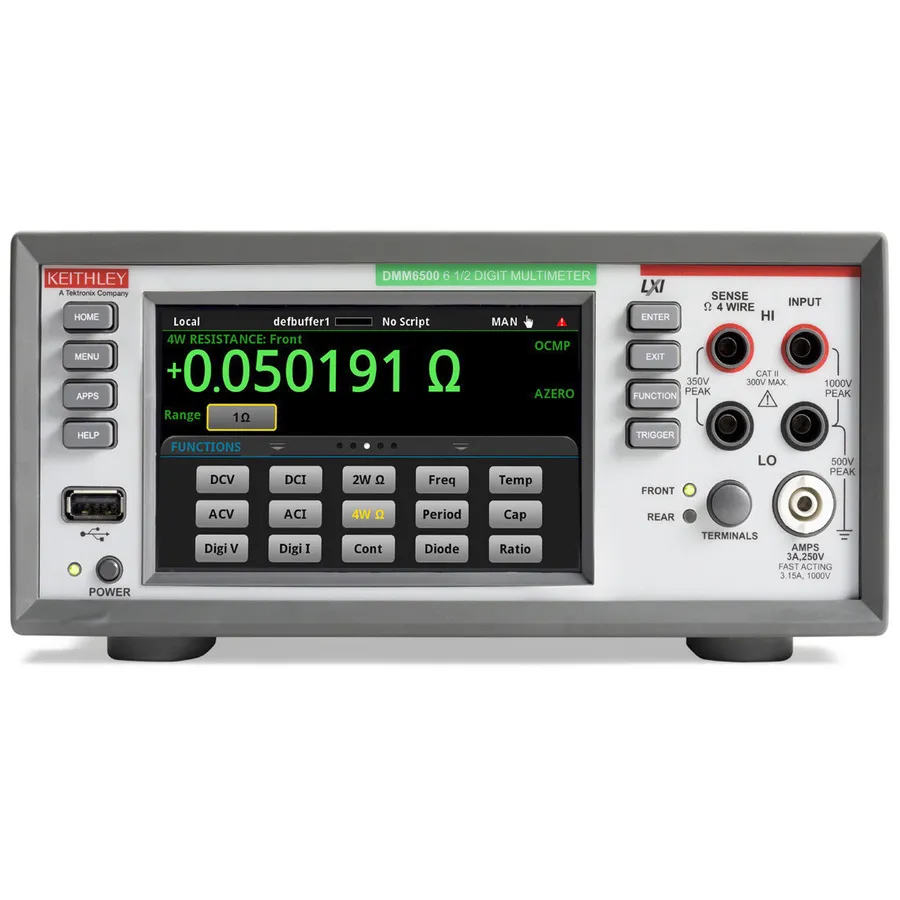

Keithley DMM6500 Digital Multimeter

Overview

The Keithley DMM6500 is a modern 6.5-digit benchtop digital multimeter with 15 built-in measurement functions and an innovative 5-inch capacitive touchscreen display. It combines superior analog measurement performance with digital convenience, delivering 25 PPM basic DCV accuracy and featuring a 1 MS/s, 16-bit digitizer for capturing transient signals and power events.

Key Features

• 6.5-digit resolution with 25 PPM basic DCV accuracy (1-year) and 30 PPM (2-year)
• 15 measurement functions including capacitance, temperature (RTD, thermistor, thermocouple), and digitizing
• Expanded measurement ranges: 10 pA to 10 A current and 1 mΩ to 100 MΩ resistance
• Large 5-inch capacitive touchscreen with graphical display and pinch-to-zoom capability
• 1 MS/s 16-bit digitizer for voltage and current transient capture
• Storage for up to 7 million readings with large internal memory
• Multiple programming language support: SCPI, TSP scripting, Keithley 2000 SCPI emulation, Keysight 34401A emulation
• Standard USB-TMC and LXI/Ethernet interfaces; optional GPIB, TSP-Link, and RS-232
• USB host port for storing readings, configurations, and screen images
• Dual simultaneous measurement display capability
• Three-year warranty

Applications

• Precision benchtop and automated system measurements
• Power event profiling and battery device characterization
• Low-current and low-resistance testing of sensitive devices
• Data logging and real-time cloud-based monitoring
• Transient signal capture and waveform analysis
• Multi-instrument test setup control via KickStart software

Included Accessories

• General Purpose Test Lead Set, 1000 V CAT II (x2)
• USB Cable, Type A to Type B, 1 m
• Traceable Calibration Certificate
• Instruction Manuals and Documentation (downloadable)
