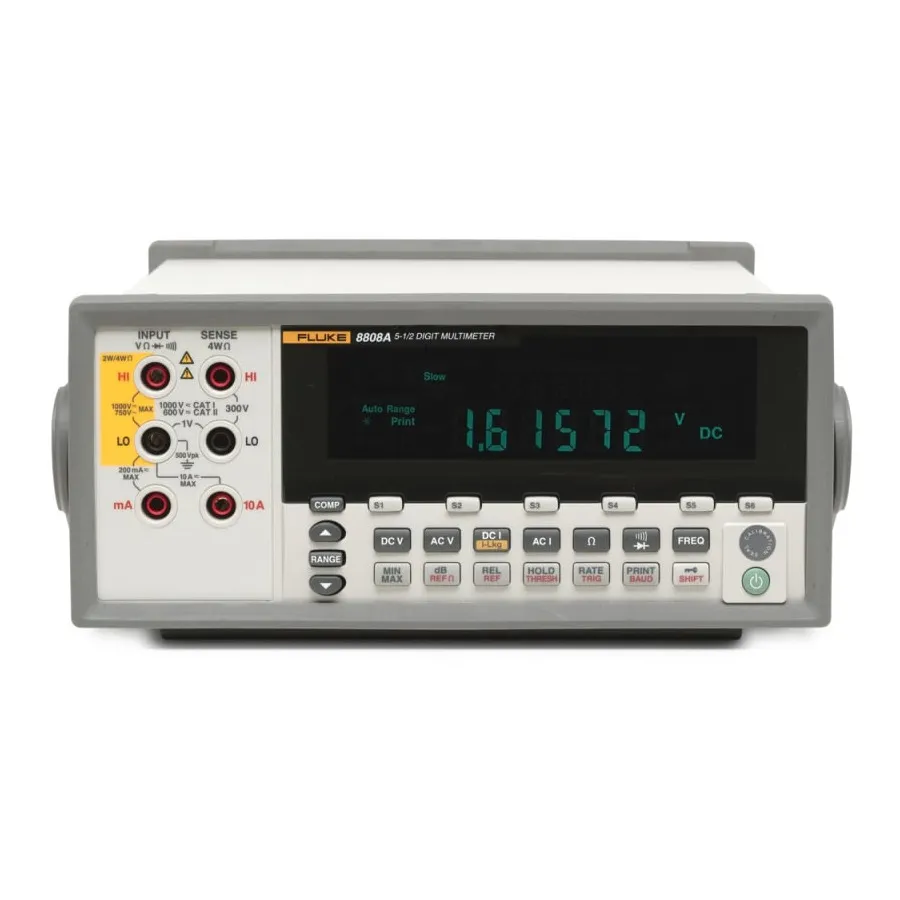

Fluke 8808A 120V Digital Multimeter
Request a quote
Fluke 8808A 120V is a 5.5-digit digital multimeter with 0.015% V DC accuracy, dual display, and high-impedance DC leakage current measurement.
Product details
| Model | 8808A 120V |
| Manufacturer | Fluke |
| Category | Benchtop Multimeters |
| Availability | Made to order |
Description
Overview
The Fluke 8808A is a 5.5-digit benchtop digital multimeter featuring a dual vacuum fluorescent display that enables simultaneous measurement of two different parameters. With basic V DC accuracy of 0.015% and a unique high-impedance input technique for sensitive DC leakage current measurement, the 8808A is ideal for manufacturing, development, and service applications.
Key Features
- 5.5 digit resolution with dual VFD display
- Basic V DC accuracy of 0.015%
- Measures V DC/AC, A DC/AC, Ohms, Frequency, Continuity, and Diode
- Dedicated DC leakage current ranges with 100 nA resolution
- 2×4 wire ohms measurement technique
- Six dedicated setup buttons for direct access to saved configurations
- Hi/Lo limit compare for Pass/Fail testing
- dB and dBm math functions
- RS-232 interface with Fluke 45 emulation
Applications
- Manufacturing and assembly testing
- Product development and verification
- Field service and troubleshooting
Included Accessories
- TL71 test leads
- Line cord
- USB to RS-232 interface adapter cable
- FlukeView Forms Basic Software
- Getting Started guide
- User manual on CD-ROM
Specifications
| Display Digits | 5.5 |
| True RMS | Yes |
| Maximum AC Voltage | 750 V |
| Maximum AC Current | 10 A |
| Maximum DC Voltage | 1000 V |
| Maximum DC Current | 10 A |
| Series | 8800A Series |
| Alternate Product Number | 2570235 |
| Calibrated | Optional |
| Display | VFD Multi Segment |
| Display Type | VFD |
| Frequency Range | 20 Hz to 1 MHz |
| Interface | RS-232,USB |
| Resistance Range | 100 MΩ |
| Resolution | 1 uV |
| Safety | Designed to comply with EN 61010-1:2001, ANSI/ISA 61010-1 (S82.02.01):2004, UL 61010-1:2004, AN/CSA C22.2 No. 61010.1:2004 |
| Warranty | 3 Years |
