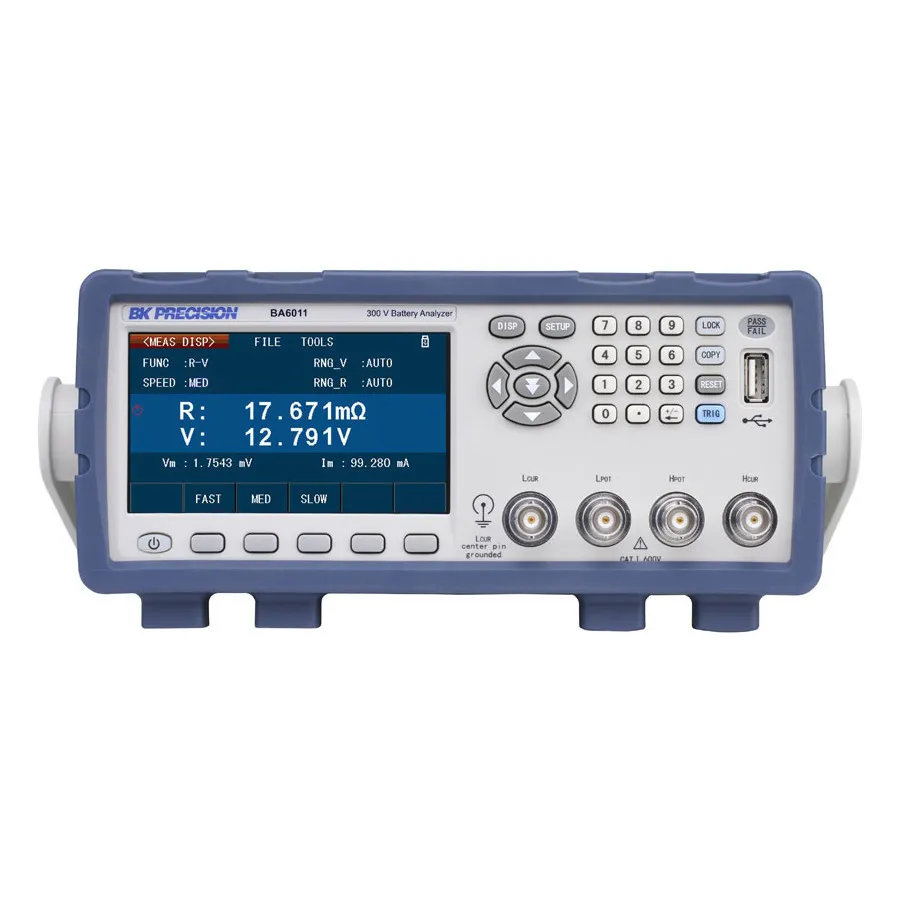

B&K Precision BA6011 Battery Analyzer

Overview

The B&K Precision BA6011 is a benchtop battery analyzer designed for characterizing modern battery technologies including lead acid, lithium, alkaline, and other battery chemistries used in consumer products, electric vehicles, and power backup systems. With support for battery pack voltages up to 300V and high-speed measurements up to 50 samples per second, the BA6011 excels in production environments where rapid testing is required.

Key Features

• Voltage measurement range: 30V to 300V with 1mV resolution
• 4.3-inch color LCD display with graphical trace function
• 4-wire Kelvin test leads with fault detection
• Auxiliary measurements: inductance, capacitance, impedance, quality factor, phase angle
• High-speed testing: up to 50 measurements per second
• 9-bin comparator function for sorting and statistical analysis
• Pass/Fail indicator with audible tone
• 100 internal and external storage locations
• Handler interface for production automation integration
• Multiple interfaces: RS-232, USB (USBTMC and virtual COM)

Applications

• Production testing of consumer batteries
• Electric vehicle battery pack characterization
• Power backup and UPS system batteries
• Security and fire alarm system batteries
• Battery condition assessment and quality control

Included Accessories

• 4-Wire Kelvin Clip Test Fixture (TLKB1)
• AC Power Cord
• User Manual (downloadable)
• Test Report and Certificate of Calibration
