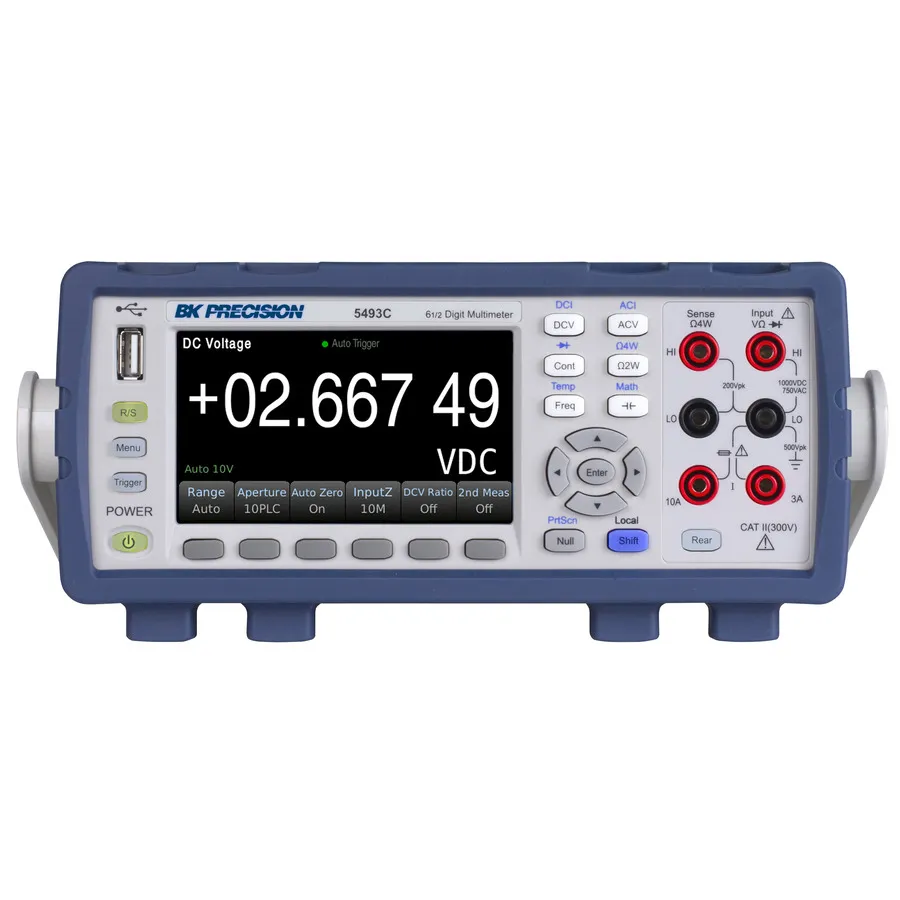

B&K Precision 5493C Digital Benchtop Multimeter

Overview

The B&K Precision 5493C is a 6.5-digit benchtop multimeter designed for accuracy, repeatability, and ease of use. With measurement speeds up to 1000 readings per second and basic DCV accuracy of 35 ppm (0.0035%), this general-purpose meter delivers stable and fast results for demanding engineering, production, and service applications. The intuitive 4.3-inch full-color LCD offers multiple display modes for comprehensive measurement analysis.

Key Features

• 6.5-digit display with 4.3-inch high-contrast full-color LCD
• 12 measurement functions including DCV, ACV, DCI, ACI, resistance, capacitance, frequency, diode, temperature, and continuity
• Measurement speed up to 1000 readings/s with 0.0035% DCV accuracy
• Multiple display modes: histogram, bar graph, trend chart, numeric
• Real-time statistics: Min, Max, Peak-to-Peak, Average, Standard Deviation
• Math functions: Null, dB, dBm, %, mx+b, and run/stop
• AC frequency measurements to 1 MHz
• Internal storage for up to 10,000 readings
• 4-wire resistance measurements down to 10 Ω
• Dual measurement display
• USB (USBTMC), LAN, and RS232 connectivity with SCPI support
• Front panel USB host for data export and settings management
• LabVIEW driver and software included for remote control and logging

Applications

• Engineering and R&D testing
• Production testing and quality assurance
• Service and maintenance
• Precision electrical measurements
