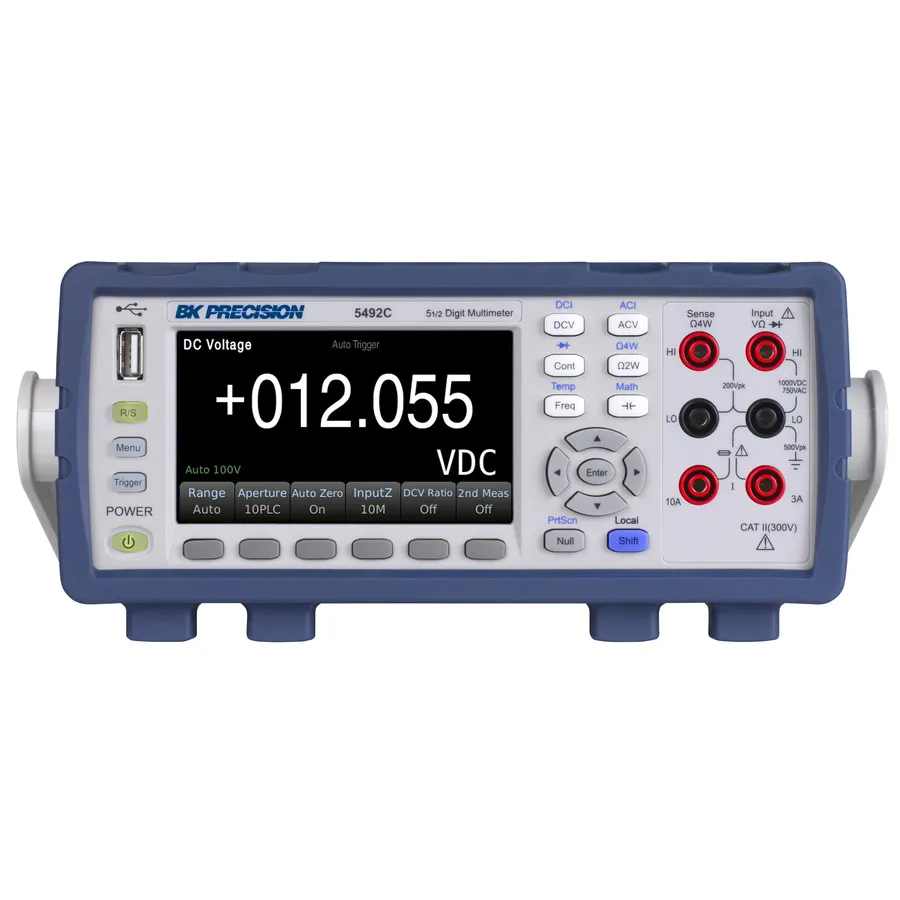

B&K Precision 5492C Digital Benchtop Multimeter

Overview

The B&K Precision 5492C is a 5½-digit benchtop multimeter designed for accuracy, repeatability, and ease of use in engineering, production, and service applications. With a wide measurement range and speeds up to 1000 readings per second, combined with basic DCV accuracy of 35 ppm, it delivers stable and precise results quickly.

Key Features

• 12 measurement functions: DCV, ACV, DCI, ACI, 2 and 4-wire resistance, capacitance, frequency, diode, temperature, continuity test, DCV ratio
• 4.3-inch high-contrast full color LCD with numeric, bar meter, trend chart, and histogram display modes
• Measurement speed up to 1000 readings per second
• Basic DCV accuracy of 35 ppm (0.0035%)
• Built-in statistics: Min, Max, Peak-to-Peak, Average, Standard Deviation
• Math functions: Null, dB, dBm, %, mx+b, and run/stop
• AC frequency measurements to 1 MHz
• 2 and 4-wire resistance measurements down to 10 Ω
• Internal storage buffer for up to 10,000 readings
• USB (USBTMC), LAN, and RS232 interfaces with SCPI command support; GPIB optional
• LabVIEW driver and control software included

Applications

• Engineering and R&D testing
• Production quality assurance and bench testing
• Service and maintenance testing
• Automated measurement systems with LabVIEW integration
