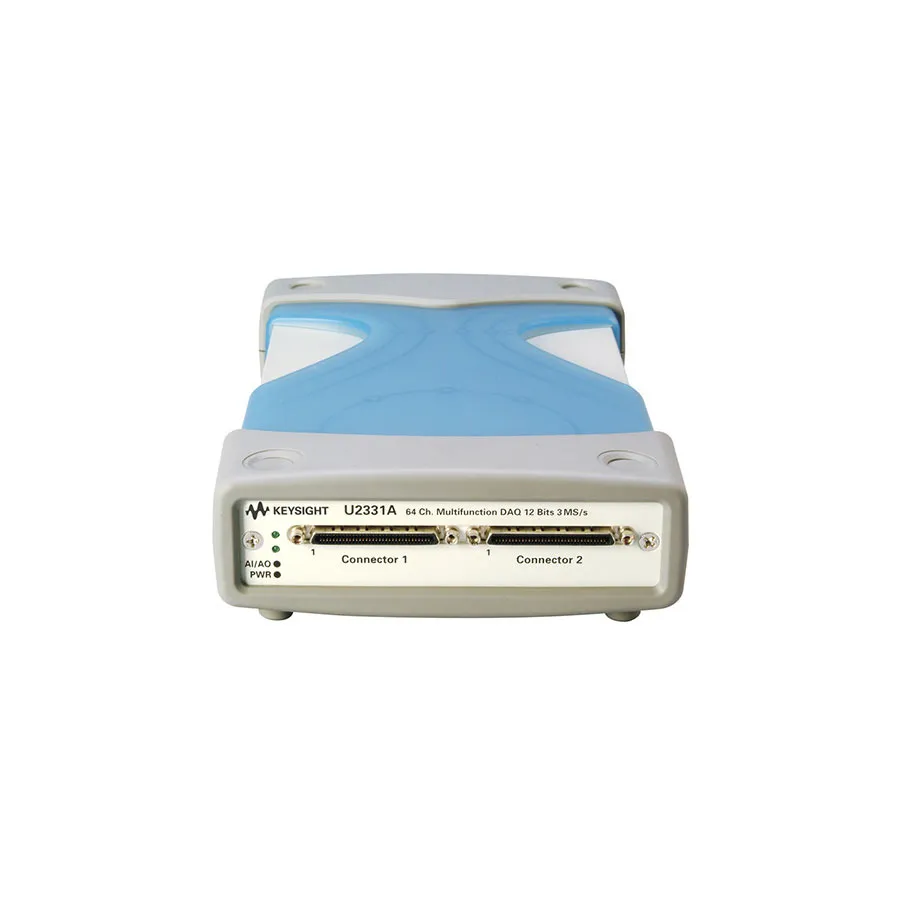

Keysight U2331A Modular USB Data Acquisition Module
Request a quote
Keysight U2331A offers high-speed USB 2.0 data acquisition with 64 analog input channels, 3 MSa/s sampling, 24-bit digital I/O, and analog outputs for flexible testing.
Product details
| Model | U2331A |
| Manufacturer | Keysight |
| Category | USB Data Acquisition |
| Availability | Made to order |
Description
Overview
The Keysight U2331A is a modular multifunction data acquisition module providing high-speed analog measurement, signal generation, and digital control capabilities. With 12-bit analog-to-digital conversion at up to 3 MSa/s and 2 analog output channels, the U2331A supports both standalone operation and integration into a U2781A USB modular chassis for synchronized multi-module systems.
Key Features
- High-speed USB 2.0 connectivity (USBTMC-USB488 compatible)
- 64 single-ended or 32 differential analog input channels
- 12-bit analog-to-digital resolution
- 3 MSa/s sampling rate for single channel, up to 1 MSa/s for multiple channels
- 2 analog output channels with 1 MSa/s update rate
- 24-bit programmable TTL digital I/O
- 2 general-purpose digital counter channels
- Programmable triggering and synchronization capabilities
- Burst mode for simulated simultaneous acquisition
- BenchVue software included for data logging and automation
Applications
- Data logging and continuous monitoring
- Design validation and verification testing
- Manufacturing and production testing
- Closed-loop feedback and control systems
- RF switch and relay control
Included Accessories
- BenchVue software (BV0025B) for instrument control and analysis
- Optional U2901A or U2902A terminal block for easy connections
Specifications
