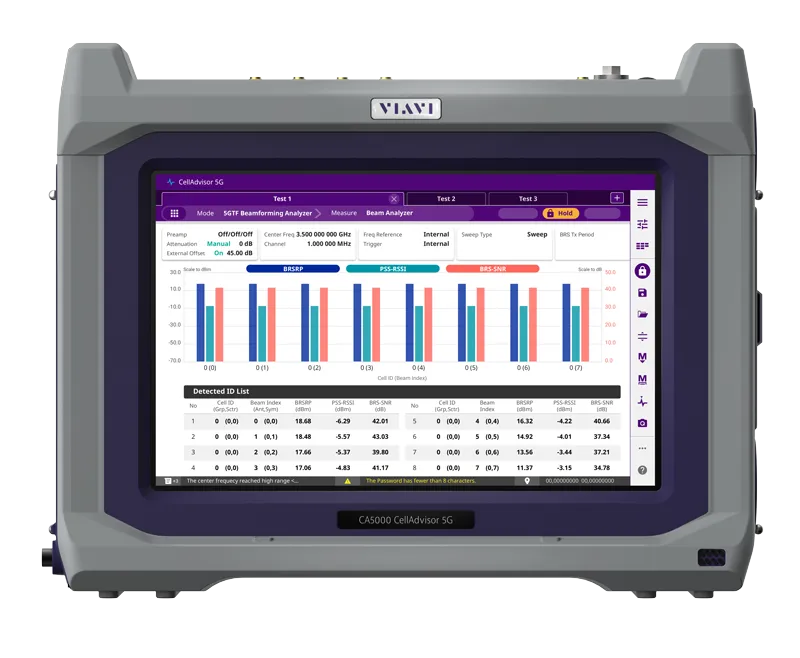

Viavi CA5000VB2 CellAdvisor 5G Bundle
Request a quote
Viavi CA5000VB2 complete 5G base station analyzer bundle with CellAdvisor 5G, dual-band coverage to 40 GHz, optic hardware, signal analyzers, GPS/Wi-Fi, antenna, and battery.
Product details
| Model | CA5000VB2 |
| Manufacturer | Viavi |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Viavi CA5000VB2 is a ready-to-deploy bundle for 5G base station analysis and cellular network testing. This complete package includes the CellAdvisor 5G mainframe with F002 frequency module (9 kHz to 40 GHz), optical hardware for fiber testing, multiple software options, connectivity modules, antennas, battery, cables, and carrying case. The bundle provides an out-of-box solution for field installation, commissioning, and maintenance of 5G networks.
Key Features
- CellAdvisor 5G mainframe with 5G NR FR1 (up to 6 GHz) and FR2 (up to 40 GHz) coverage
- 100 MHz analysis bandwidth for detailed signal characterization
- Real-time spectrum analyzer with 100 MHz bandwidth
- Interference analyzer for identifying signal problems
- 5GTF beamforming analyzer for 5G beam characterization
- Route map for coverage verification and mapping
- Optical hardware for RFoCPRI and fiber interface testing
- GPS and Wi-Fi connectivity for location tracking and data upload
- Includes RF antennas (26–40 GHz omni, GPS), 98 Wh battery, cables, and carrying case
Included Accessories
- 98 Wh Lithium-ion battery (G700050150)
- RF omni antenna, Type-K(f), 26–40 GHz (G700050340)
- GPS SMA mount antenna (G700050390)
- CA5G soft carrying case (G700050431)
- RF cable DC to 40 GHz, K(m) to K(f), 0.8 m (G700050551)
Applications
- 5G cell site installation, commissioning, and maintenance
- Base station performance validation and RF testing
- Coverage mapping and beam characterization
- Interference analysis and PIM detection
- Fiber, coax, and RF interface testing
- Field troubleshooting and network optimization
Specifications
| Frequency Range | 9 kHz to 40 GHz |
| 5G Coverage | NR FR1 up to 6 GHz, FR2 up to 40 GHz |
| Analysis Bandwidth | 100 MHz |
| Real-Time Spectrum Analyzer | 100 MHz bandwidth |
| RF Port Connector | Type-K(f) |
| Antenna Included | RF omni antenna (26–40 GHz), GPS antenna |
| Battery | 98 Wh Lithium-ion |
| Software Options Included | Real-time spectrum analyzer, Interference analyzer, Route map, 5GTF beamforming |
| Optical Hardware | Supported for RFoCPRI testing |
| Connectivity | GPS, Wi-Fi |
