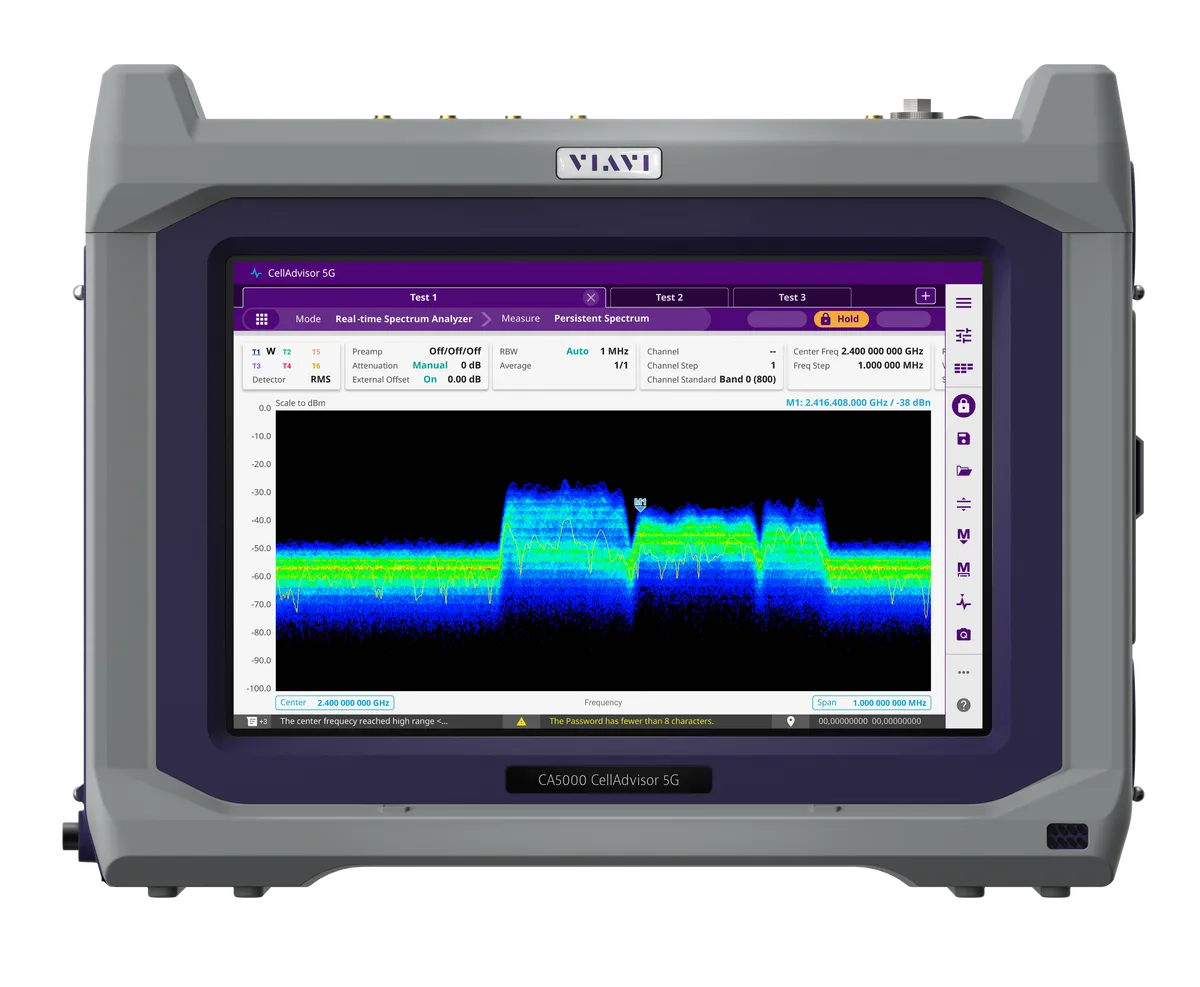

Viavi CA5000-F002 CellAdvisor 5G
Request a quote
Viavi CA5000-F002 is a dual-band 5G analyzer (FR1 to 6 GHz, FR2 to 40 GHz) with real-time spectrum analysis, beam assessment, and fiber/coax/RF interface support.
Product details
| Model | CA5000-F002 |
| Manufacturer | Viavi |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
Viavi CellAdvisor 5G CA5000-F002 is the dual-band variant of the CellAdvisor 5G analyzer, covering both 5G FR1 and FR2 frequency ranges. It is designed for comprehensive 5G cell site deployment, commissioning, and maintenance with capabilities spanning sub-6 GHz and mmWave bands. It provides testing across fiber, coax, and RF interfaces with real-time spectrum analysis and advanced 5G measurement capabilities.
Key Features
- 5G FR1 and FR2 frequency coverage: sub-6 GHz to 40 GHz
- Real-time spectrum and interference analysis with persistence display
- 5G carrier scanner measuring up to eight wide-band carriers' power and strongest beam power level with ID
- 5G beam analyzer assessing individual beam ID, power level, and signal-to-noise ratios
- 5G route map for coverage verification with real-time beam strength mapping
- Support for fiber, coax, and RF interface testing
- Interference analysis and passive intermodulation (PIM) detection
- Cloud-enabled reporting via VIAVI StrataSync
Applications
- 5G FR1 and FR2 cell site installation, commissioning, and maintenance
- Sub-6 GHz and mmWave radio performance testing
- Massive MIMO and active antenna beam validation
- Interference analysis and PIM detection over CPRI
- Comprehensive RF signal analysis from sub-6 GHz to mmWave
- Fronthaul and RRH verification
- Cable and antenna analysis with optional RF source
Specifications
| Model / Part Number | Description |
| CA5000-F002 | Frequency for 5G NR FR1 up to 6 GHz and FR2 up to 40 GHz |
