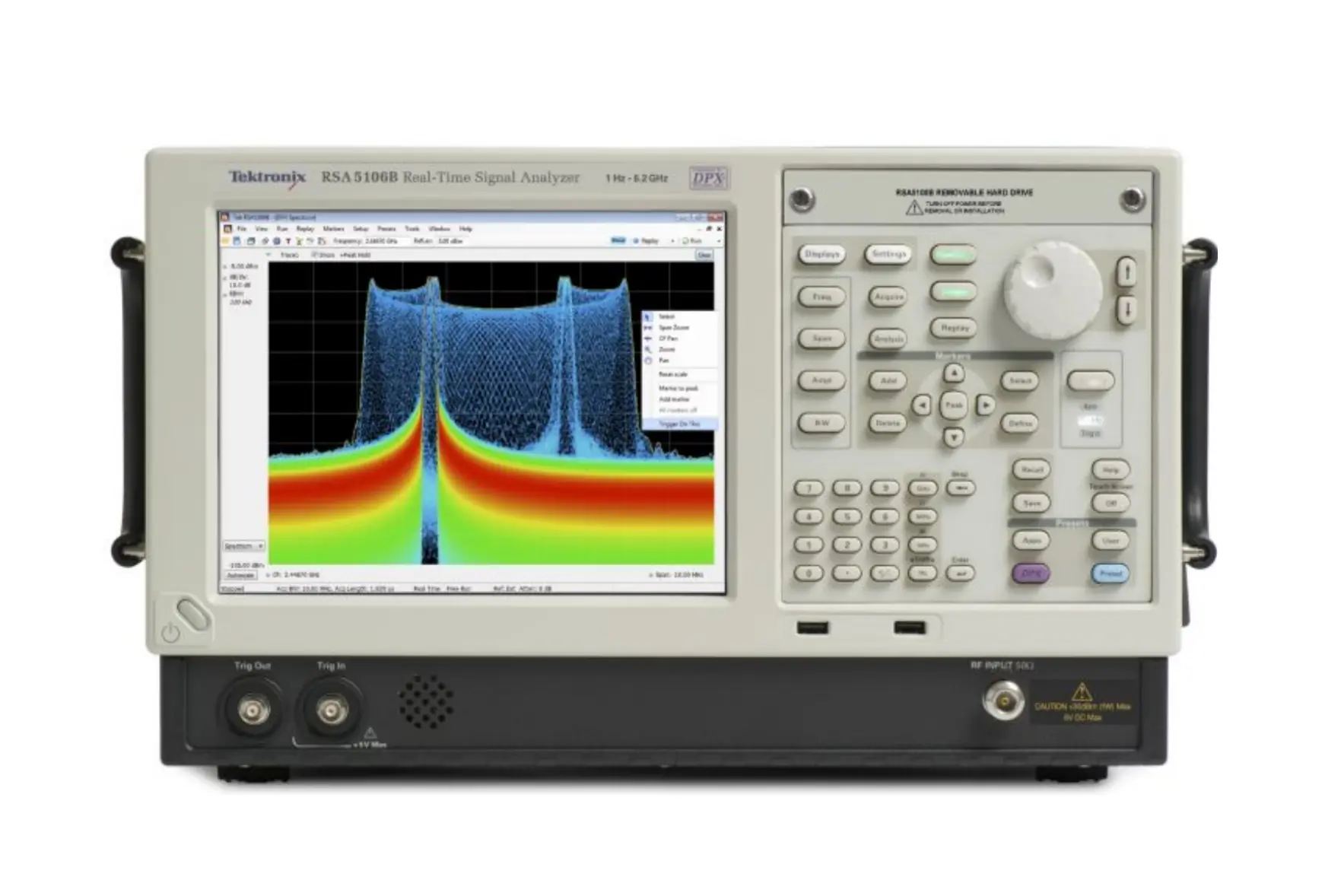

Tektronix RSA5103A Real-Time Spectrum Analyzer
Request a quote
Tektronix RSA5103A real-time spectrum analyzer spans 1 Hz–3 GHz with +17 dBm TOI, ±0.3 dB accuracy, and trigger-capture-analyze for RF design and EMC testing.
Product details
| Model | RSA5103A |
| Manufacturer | Tektronix |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Tektronix RSA5103A is a real-time spectrum analyzer that combines high-performance spectrum analysis, wideband vector signal analysis, and trigger-capture-analyze capability in a single instrument. Operating from 1 Hz to 3 GHz with industry-leading real-time specifications, it provides best-in-class minimum signal duration for 100% probability of intercept and dynamic range for demanding RF applications.
Key Features
- Frequency range: 1 Hz to 3 GHz
- +17 dBm 3rd order intercept at 2 GHz
- ±0.3 dB absolute amplitude accuracy to 3 GHz
- Displayed average noise level: –142 dBm/Hz at 26.5 GHz, –157 dBm/Hz at 2 GHz
- Phase noise: –113 dBc/Hz at 1 GHz and –134 dBc/Hz at 10 MHz carrier, 10 kHz offset
- High-speed sweeps: 1 GHz sweep at 10 kHz RBW in less than 1 second
- Real-time spurious-free dynamic range of 80 dB with HD options
- Internal preamp available with DANL of -167 dBm/Hz at 2 GHz
Applications
- Wideband radar and pulsed RF signal analysis
- Frequency agile communications testing
- Satellite and microwave backhaul link characterization
- Educational and training applications
- LTE and cellular signal analysis
- EMC/EMI pre-compliance testing and troubleshooting
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | DC <= 1kHz |
