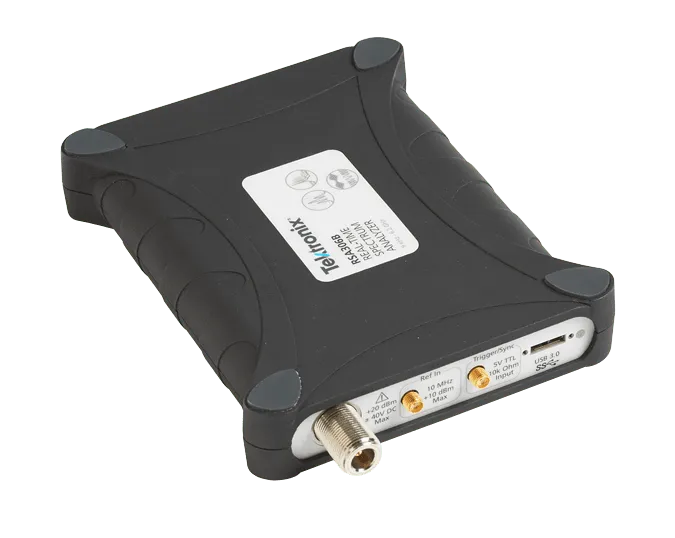

Tektronix RSA306B USB Real-Time Spectrum Analyzer
Tektronix RSA306B is a USB real-time spectrum analyzer offering 9 kHz–6.2 GHz frequency range, 40 MHz acquisition bandwidth, and real-time DPX display.
Product details
| Model | RSA306B |
| Manufacturer | Tektronix |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Tektronix RSA306B is a USB-connected real-time spectrum analyzer that separates signal acquisition from measurement processing, enabling cost-effective analysis on your PC. It covers 9 kHz to 6.2 GHz with a 40 MHz real-time acquisition bandwidth, allowing complete capture of modern wideband signals including WLAN and LTE transmissions. The instrument is designed for field and laboratory applications including EMI pre-compliance testing, transient hunting, and signal discovery.
The RSA306B includes SignalVu-PC software for comprehensive analysis and supports API integration with MATLAB for custom measurement routines. Its portable design and USB power connection make it suitable for mobile testing in manufacturing, field service, and design engineering environments.
Key Features
- 9 kHz to 6.2 GHz frequency coverage with +20 dBm to –160 dBm measurement range
- 40 MHz real-time acquisition bandwidth with 100% probability of intercept for 100 μs signals
- DPX Live RF spectrum display with real-time transient visualization
- Frequency Mask Trigger option for event-based capture of RF anomalies
- 17 standard spectrum and signal analysis measurements
- Options for modulation analysis, WLAN, LTE, Bluetooth, and pulse measurements
- Full-featured SignalVu-PC software with API and MATLAB drivers
- Three-year warranty and streaming capture capability
- Mil-Std 28800 Class 2 environmental specifications for harsh conditions
Applications
- EMI pre-compliance testing and diagnostic measurements
- Transient signal discovery and analysis
- Interference hunting and identification
- Design validation for wireless communications
- Real-time spectrum monitoring in manufacturing and field service
Included Accessories
- USB 3.0 locking cable (1 M)
- Documentation and printed safety/installation manual
- SignalVu-PC software (download or license checkout from Tektronix)
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Form Factor | USB |
| Frequency Range | 4.0 - 8.0 GHz |
| Maximum Frequency | 6.2 GHz |
| Product Type | USB |
| Series | RSA300 Series |
| Bandwidth | 40 MHz |
| Accessories | EMI-NF-PROBE |
| Connector Type | Type-N |
| DC Voltage | ±40 V |
| Includes | USB 3.0 locking cable (1 M), SignalVu-PC software, documentation, USB key, Printed safety/installation manual (English) |
| Input Connector | Type-N female |
| Memory | 8 GB |
| Minimum Frequency | 9 kHz |
| Operating Temperature Range | 14-131°F |
| Warranty | 3 Years |
