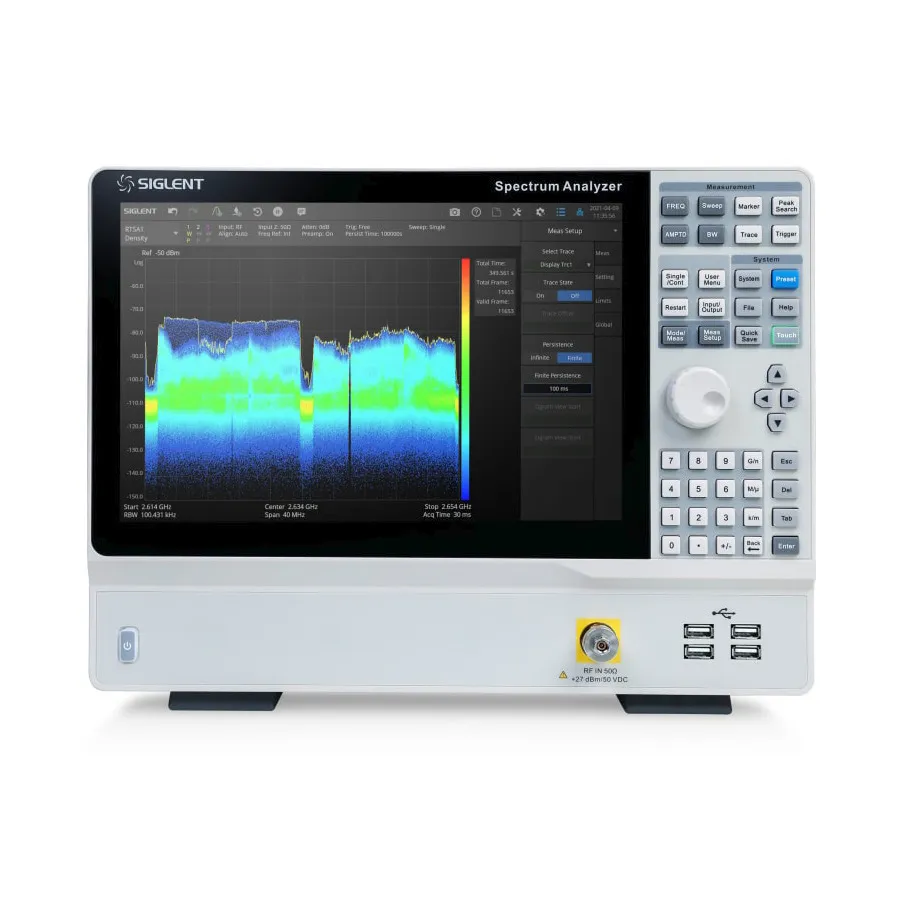

Siglent SSA5083A Spectrum Analyzer
Request a quote
Siglent SSA5083A is a 9 kHz–13.6 GHz spectrum analyzer with -165 dBm/Hz noise floor, 12.1" touch screen, and real-time spectrum analysis capability.
Product details
| Model | SSA5083A |
| Manufacturer | Siglent |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
Siglent SSA5083A is a spectrum analyzer designed for complex RF spectrum and signal analysis. With a frequency range of 9 kHz to 13.6 GHz (upgradeable to 26.5 GHz), the analyzer provides multi-dimensional data displays and advanced triggering capabilities for modern RF spectrum challenges.
Key Features
- Frequency range: 9 kHz – 13.6 GHz (upgradeable to 26.5 GHz with option)
- Resolution bandwidth (RBW): 1 Hz–10 MHz
- -165 dBm/Hz Displayed Average Noise Level
- -105 dBc/Hz at 1 GHz, 10 kHz offset SSB Phase Noise
- 12.1-inch multi-touch screen with web browser remote control
- Real-time spectrum analysis capability (optional)
- Channel power, ACPR, OBW, Harmonic, and TOI measurements
Applications
- Broadcast monitoring and evaluation
- Cellular site analysis
- IoT, WLAN, and Bluetooth surveying
- Research and development
- Production and maintenance testing
Included Accessories
- Quick Start guide
- USB cable
- Power cord
- Wireless mouse
- 2.92F-2.92F-40A adapter
Specifications
| Frequency Range | 8.0 - 15.0 GHz |
| Maximum Frequency | 13.6 GHz |
| Noise Floor | -165 dBm |
| Product Type | Benchtop |
| Series | SSA5000A Series |
| Display Type | 12.1" TFT LCD Touch |
| Includes | Quick Start, USB Cable, Power Cord, Wireless Mouse, 2.92F-2.92F-40A |
| Input Connector | 2.92 mm type Male, USB-B plug V2.0, 4 USB-A plug V2.0, 10/100 Base, RJ-45, HDMI, 3.5 mm Jack, BNC-type Female |
| Interface | LAN, USB Device, USB Host (USB-GPIB) |
| Minimum Frequency | 9 kHz |
| Resolution | 1 Hz to 10 MHz |
| Warranty | 3 Years |
