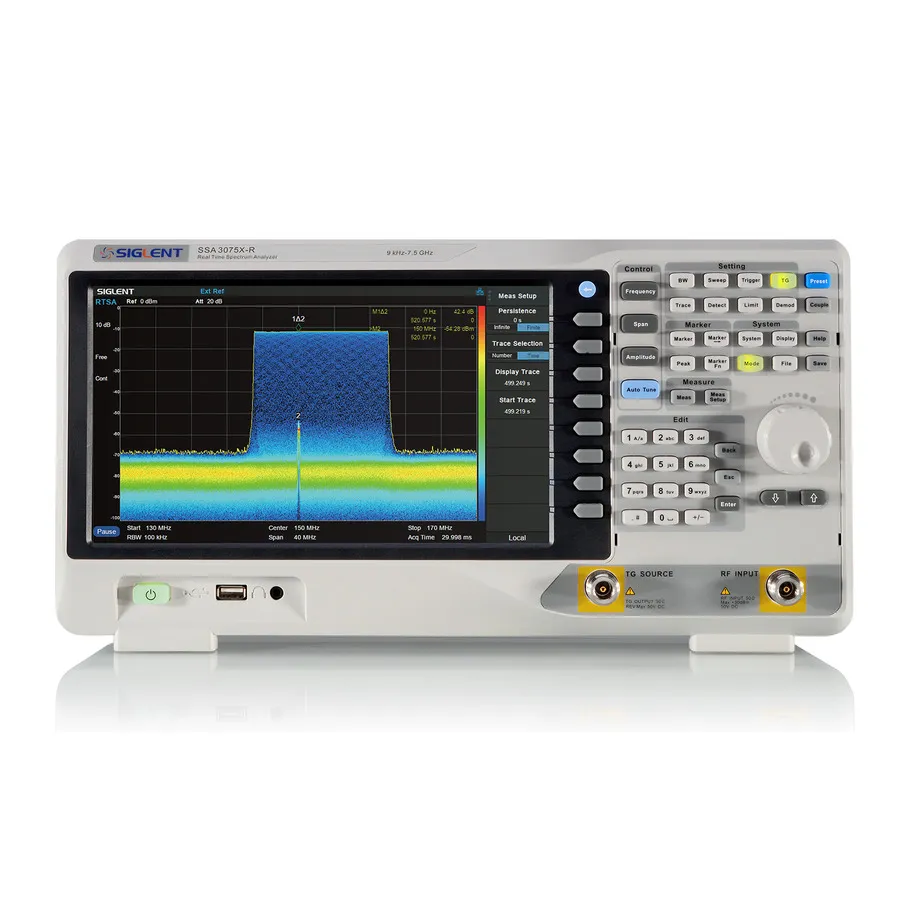

Siglent SSA3075X-R Real-Time Spectrum Analyzer
Request a quote
Siglent SSA3075X-R is a 7.5 GHz real-time spectrum analyzer with 25 MHz real-time bandwidth, -165 dBm/Hz DANL, and integrated VNA.
Product details
| Model | SSA3075X-R |
| Manufacturer | Siglent |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Siglent SSA3075X-R is a real-time spectrum analyzer (RTSA) with 25 MHz real-time analysis bandwidth, combining spectrum analysis, vector network analysis, and advanced measurement capabilities. The unit features frequency template trigger functions for seamless signal collection and analysis, making it ideal for observing and analyzing small, elusive, and frequency-hopping signals.
Key Features
- Frequency Range: 9 kHz to 7.5 GHz
- Real-Time Analysis Bandwidth: 25 MHz (40 MHz optional)
- Resolution Bandwidth: 1 Hz to 3 MHz
- Phase Noise: < -98 dBc/Hz
- Total Amplitude Accuracy: < 0.7 dB
- Displayed Average Noise Level: -165 dBm/Hz
- 10.1 inch Multi-Touch Screen with Mouse and Keyboard support
- LAN, USB Device, and USB Host interfaces
- Web Browser Remote Control and File Operation
- Multiple Display Modes: Density, Spectrogram, PvT, 3D
- Configurable Frequency Mask Trigger Function
Applications
- Real-time analysis of elusive and frequency-hopping signals
- Standard spectrum analysis with reflection and advanced measurements
- Wideband modulation analysis (up to 40 MHz optional)
- EMI pre-compliance testing
- S-parameter measurements and network analysis
Included Accessories
- Quick Start Guide
- USB Cable
- Power Cord
Specifications
| Frequency Range | 4.0 - 8.0 GHz |
| Maximum Frequency | 7.5 GHz |
| Tracking Generator | Yes |
| Noise Floor | -165 dBm |
| Product Type | Benchtop |
| Preamplifier | Yes |
| Series | SSA3000X-R Series |
| Display Type | 10.1 Multi-Touch TFT LCD |
| Includes | Quick Start -1, USB Cable -1, Power Cord -1 |
| Input Connector | N-type female, USB-A/B plug version 2.0, 3.5 mm Ear Phone Jack, 10/100 Base, RJ-45, BNC-type female |
| Interface | LAN, USB Device, USB Host (USB-GPIB) |
| Minimum Frequency | 9 kHz |
| Resolution | 1 Hz to 3 MHz |
| Warranty | 3 Years |
