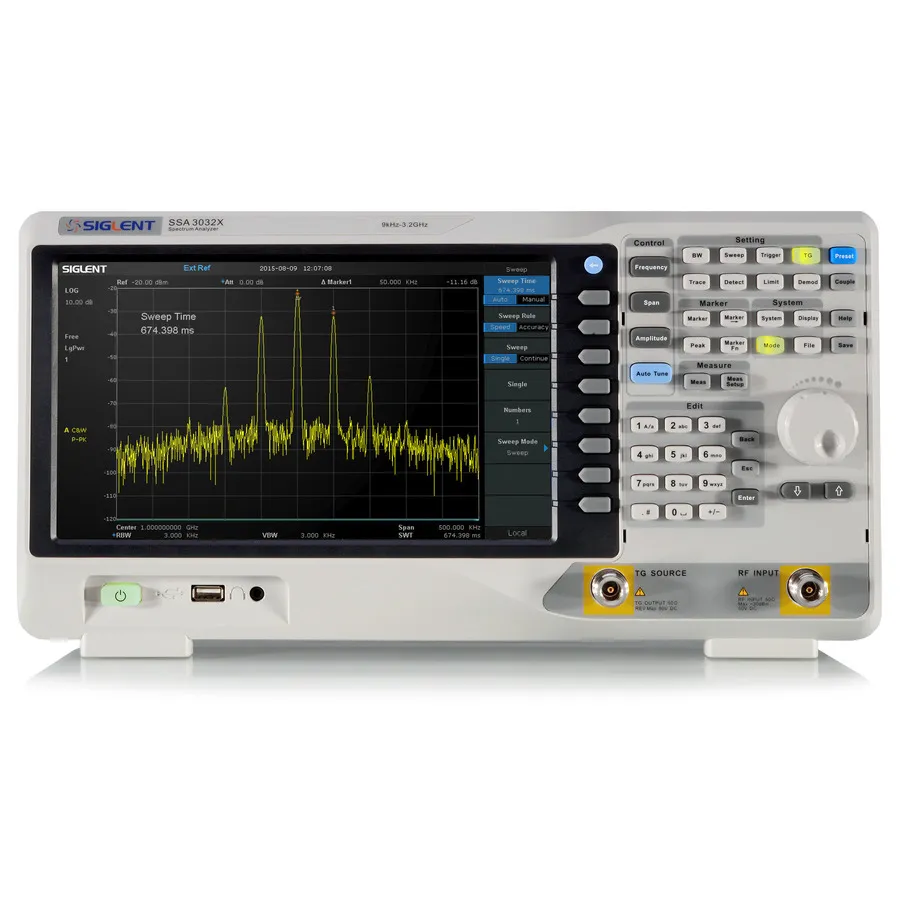

Siglent SSA3032X Spectrum Analyzer
Request a quote
Siglent SSA3032X is a 3.2 GHz RF spectrum analyzer with all-digital IF technology, tracking generator, and high-resolution measurements.
Product details
| Model | SSA3032X |
| Manufacturer | Siglent |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
Siglent's SSA3032X is a professional-grade RF spectrum analyzer with a frequency range of 9 kHz to 3.2 GHz and all-digital IF processing. This compact instrument delivers high-resolution measurements, faster signal analysis, and superior accuracy compared to traditional analog designs. The SSA3032X is equipped with an integrated tracking generator and pre-amplifier, making it suitable for demanding applications in wireless communications, EMI testing, and RF circuit development.
Key Features
- Frequency range: 9 kHz to 3.2 GHz
- Resolution bandwidth: 1 Hz to 1 MHz (1-3-10 sequence)
- Displayed average noise level: -161 dBm/Hz (typical)
- Phase noise: < -98 dBc/Hz @ 1 GHz, 10 kHz offset
- Total amplitude accuracy: < 0.7 dB
- All-digital IF technology for superior resolution and accuracy
- Included tracking generator and pre-amplifier
- 10.1-inch WVGA display (1024 x 600, non-touch)
- USB, LAN, REF Out, and Trigger IN rear interfaces
Applications
- Wireless communication testing (Wi-Fi, Bluetooth, RFID)
- EMI pre-compliance testing
- RF circuit research and development
- Broadcast monitoring and evaluation
- Site surveying and signal propagation
- Education and training
- Production and maintenance
Included Accessories
- USB cable
- Power cord
- Quick start guide
- Tracking generator
Specifications
| Series | SSA3000X Series |
| Frequency Range | 0.5 - 4.0 GHz |
| Product Type | Benchtop |
