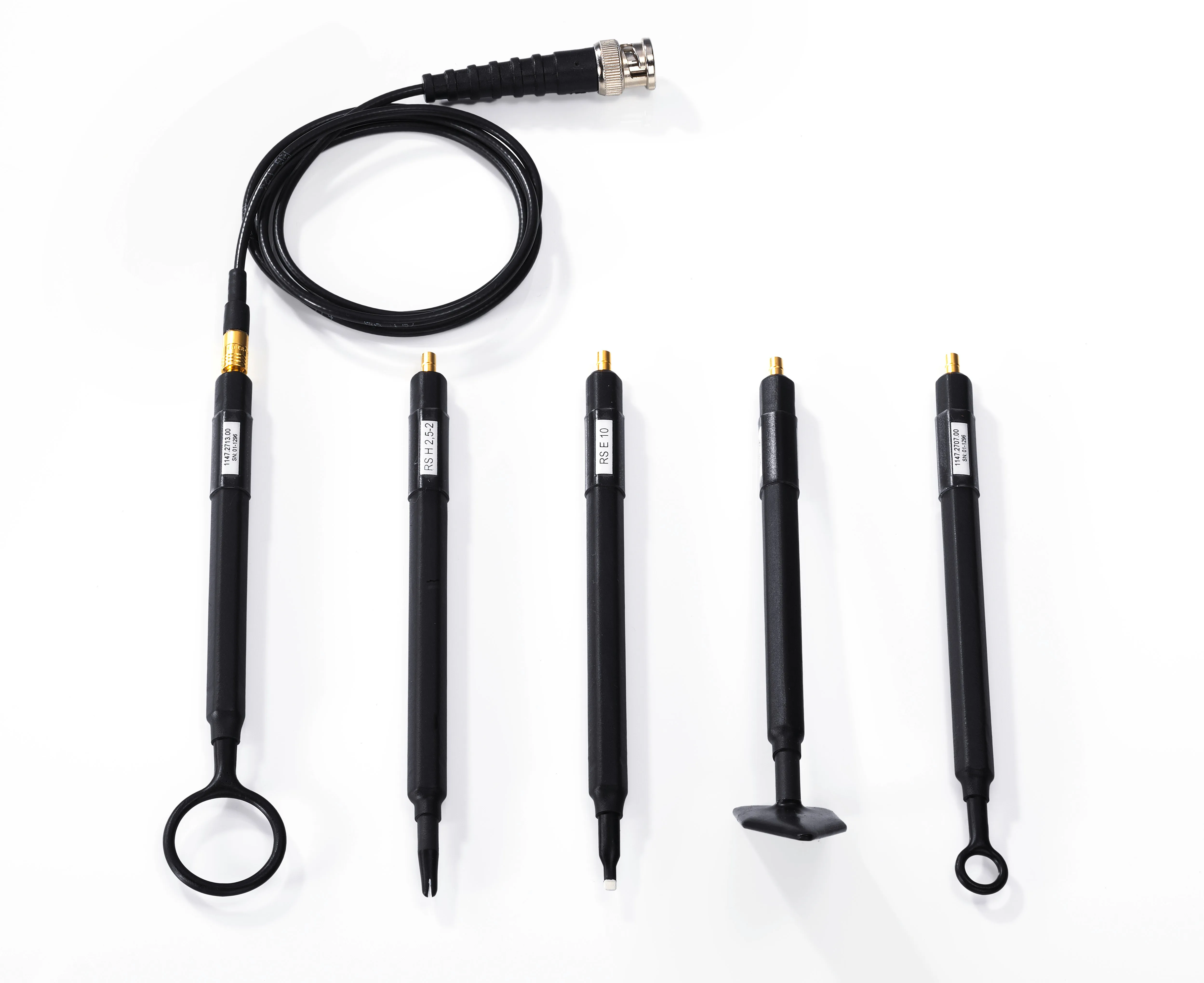

Rohde & Schwarz HZ-15 Near Field Probe Set
Request a quote
Rohde & Schwarz HZ-15 near-field probe set with 2 E and 3 H field probes for EMC measurement from 30 MHz to 3 GHz.
Product details
| Model | HZ-15 (1147.2736.02) |
| Manufacturer | Rohde & Schwarz |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz HZ-15 is a comprehensive near-field probe set for analyzing electric and magnetic field distributions in the 30 MHz to 3 GHz frequency range. The set includes two E-field probes and three H-field probes with electrically shielded tips optimized for near-field measurements on printed circuit boards and components.
Key Features
- Frequency range: 30 MHz to 3 GHz
- Two E-field probes and three H-field probes
- Electrically shielded magnetic field probes for easy field orientation determination
- Passive probes compatible with 50 Ω test receivers, spectrum analyzers, and oscilloscopes
- Optional HZ-16 preamplifier (20 dB gain) for increased sensitivity
- Alternative HZ-17 available for magnetic field measurements only
Applications
- EMC near-field analysis and troubleshooting
- Printed circuit board field mapping
- Component-level electromagnetic field measurement
- Pre-compliance EMC testing
Included Accessories
- Robust plastic carrying case
- 1 m RF cable with BNC (male) and SMB (female) connectors
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 10MHz <= 100MHz |
