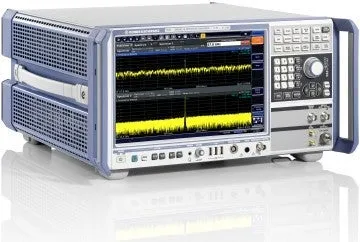

Rohde & Schwarz FSW67 Signal and Spectrum Analyzer
Request a quote
Rohde & Schwarz FSW67 is a high-performance signal and spectrum analyzer offering 67 GHz frequency range, 8.3 GHz analysis bandwidth, and exceptional phase noise for RF and microwave measurements.
Product details
| Model | FSW67 (1312.8000.67) |
| Manufacturer | Rohde & Schwarz |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz FSW67 is a high-performance signal and spectrum analyzer designed to meet demanding measurement requirements in RF and microwave applications. It provides signal analysis up to 67 GHz with exceptional phase noise characteristics and wide analysis bandwidth, making it suitable for communications systems development, radar signal analysis, and 5G New Radio testing.
Key Features
- Frequency range from 2 Hz to 67 GHz with external harmonic mixers up to 110 GHz
- 8.3 GHz internal analysis bandwidth for wideband signal characterization
- 800 MHz real-time analysis bandwidth
- Low phase noise of –137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
- High-resolution 12.1 inch touchscreen with multitouch gesture support
- Multiple measurement applications can run and display in parallel
- SCPI recorder for simplified script generation
- Windows 10 operating system with intuitive interface
Applications
- 5G New Radio and advanced wireless communications testing
- Automotive and pulsed radar signal analysis
- High-performance oscillator development
- Wideband component and system characterization
- Frequency agile signal measurement
Specifications
| High Frequency (range) | 50GHz <= 85GHz |
| Low Frequency (range) | DC <= 1kHz |
