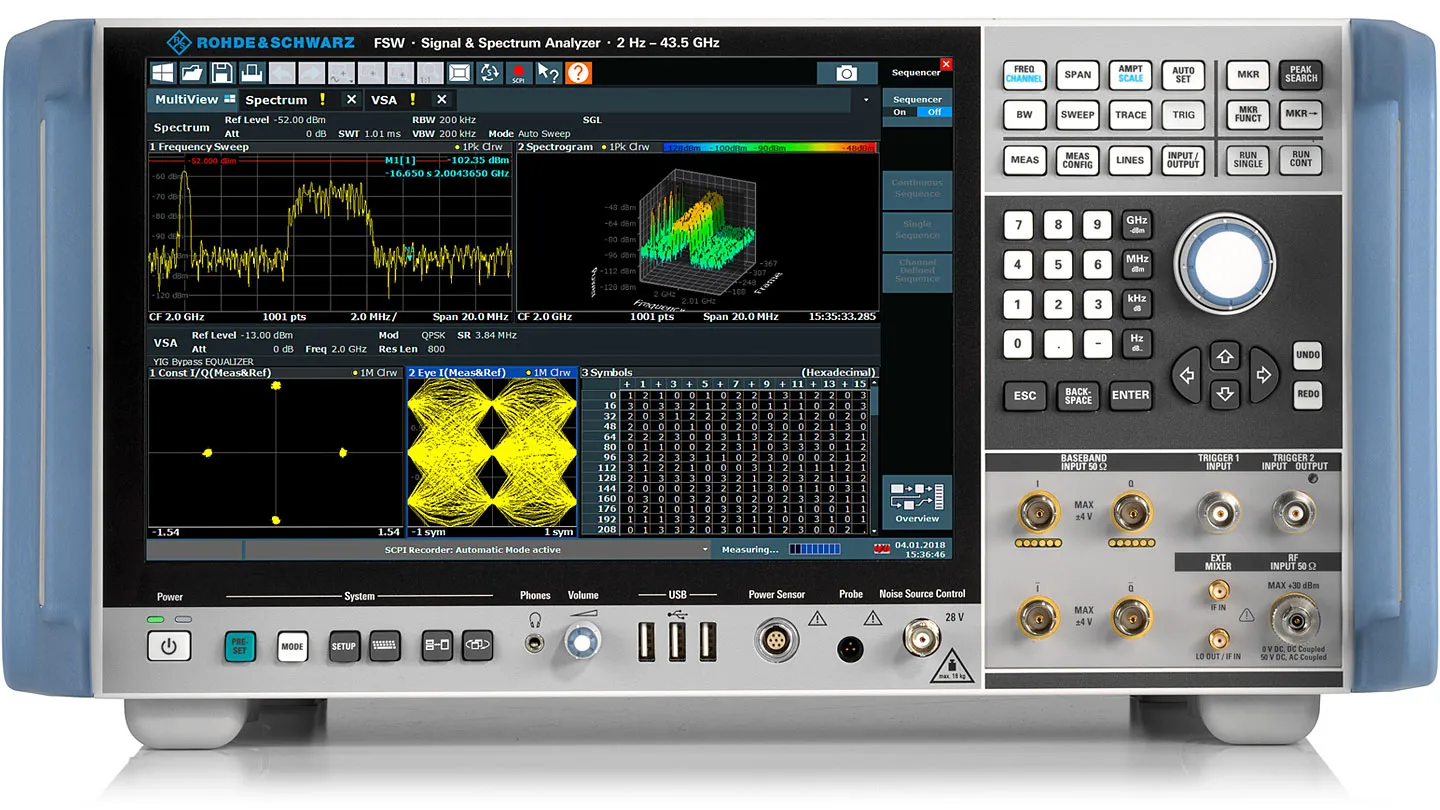

Rohde & Schwarz FSW13 Signal and Spectrum Analyzer
Request a quote
Rohde & Schwarz FSW13 delivers low phase noise of -140 dBc, up to 320 MHz analysis bandwidth, real-time analysis to 160 MHz, and intuitive multitouch operation.
Product details
| Model | FSW13 (1312.8000.13) |
| Manufacturer | Rohde & Schwarz |
| Category | Spectrum Analyzers |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz FSW signal and spectrum analyzer is engineered to meet demanding professional requirements. This high-performance instrument delivers low phase noise, wide internal analysis bandwidth, and straightforward, intuitive operation. The state-of-the-art multitouch display with gesture support ensures efficient measurement workflows, while the embedded SCPI recorder simplifies script generation and automation.
Key Features
- Frequency range: 2 Hz to 13.6 GHz
- Analysis bandwidth up to 320 MHz (up to 8.3 GHz with optional bandwidth extensions)
- Real-time analysis up to 160 MHz
- Low phase noise: -140 dBc (1 Hz) at 10 kHz offset, 1 GHz carrier
- Multitouch 12.1-inch high-resolution touchscreen
- Multiple simultaneous measurement applications with parallel display
- High sensitivity with DANL of -156 dBm (1 Hz) at 2 GHz
- SCPI recorder for automated script creation
- Windows 10 operating system
Applications
- 5G New Radio signal measurement and analysis
- Wideband component and system characterization
- Automotive radar signal analysis
- Pulsed radar characterization
- High-performance oscillator development
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | DC <= 1kHz |
